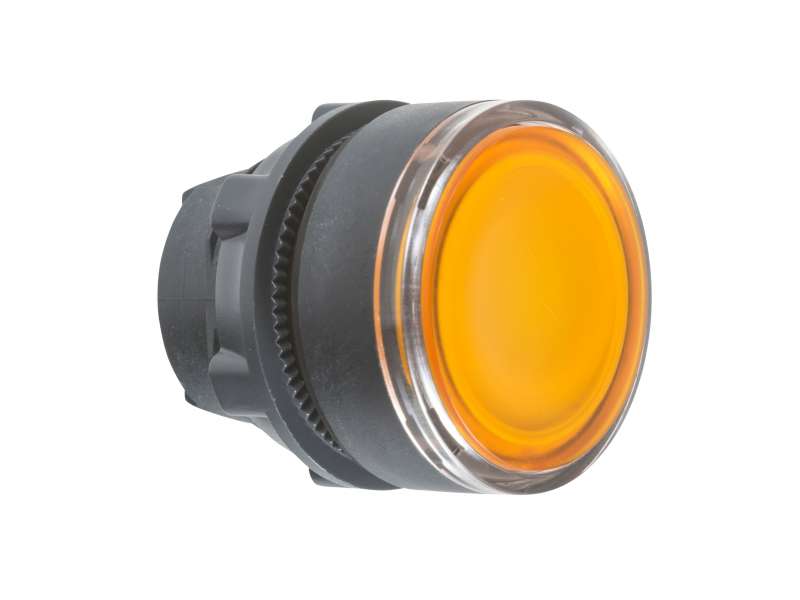

Schneider Electric Narandžasta udubljena glava svetlećeg tastera Ø22 sa povratkom za BA9s sijalicu;ZB5AW35
Orange flush illuminated pushbutton head Ø22 spring return for BA9s bulb...
VAT-exclusive price: 654,00 |
VAT-inclusive price: 784,80 |
Orange flush illuminated pushbutton head Ø22 spring return for BA9s bulb
| range of product |
Harmony XB5
|
|
|---|---|---|
| product or component type |
Head for illuminated push-button
|
|
| device short name |
ZB5
|
|
| product compatibility |
BA 9s
|
|
| bezel material |
Dark grey plastic
|
|
| mounting diameter |
22 mm
|
|
| sale per indivisible quantity |
1
|
|
| head type |
Standard
|
|
| shape of signaling unit head |
Round
|
|
| type of operator |
spring return
|
|
| operator profile |
Orange flush, unmarked
|
|
| operator additional information |
With plain lens
|
| CAD overall width |
29 mm
|
|
|---|---|---|
| CAD overall height |
29 mm
|
|
| CAD overall depth |
32 mm
|
|
| net weight |
0.018 kg
|
|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| mechanical durability |
10000000 cycles
|
|
| main group |
Illum push-button
|
|
| group of product |
Flush push BA9s
|
|
| station name |
XALD 1...5 cut-outs
XALK 2...5 cut-outs |
|
| cap/operator or lens colour |
Orange
|
|
| marking |
Unmarked
|
|
| electrical composition code |
M7 for <6 contacts using single blocks in front mounting with BA 9s
M8 for <6 contacts using single and double blocks in front mounting with BA 9s M9 for <2 contacts using single blocks in front mounting with BA 9s and transformer MF2 for <2 contacts using single blocks in front mounting with BA 9s |
|
| device presentation |
Basic sub-assemblies
|
| protective treatment |
TC
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…55 °C
|
|
| overvoltage category |
Class II conforming to IEC 60536
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
IP67 IP69 IP69K |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| IK degree of protection |
IK05 conforming to EN 50102
|
|
| standards |
GB 14048.5
CSA C22.2 No 14 EN/IEC 60947-5-4 EN/IEC 60947-1 UL 508 JIS C8201-5-1 EN/IEC 60947-5-1 JIS C8201-1 |
|
| product certifications |
UL listed
CSA LROS (Lloyds register of shipping) DNV GL RINA BV |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
18 g
|
|
| Package 1 Height |
3.4 cm
|
|
| Package 1 width |
4.5 cm
|
|
| Package 1 Length |
5.4 cm
|
|
| Unit Type of Package 2 |
S01
|
-
Harmony XB5 ZB5AW35
