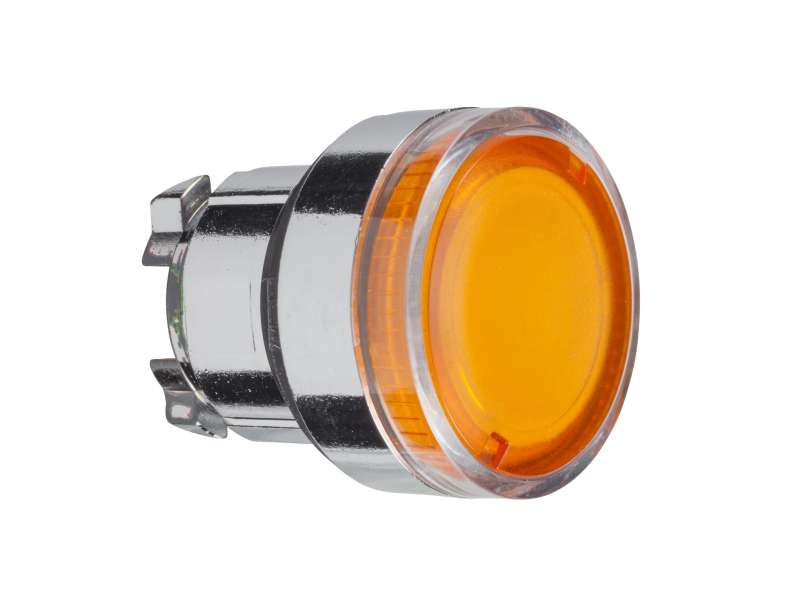

Schneider Electric Narandžasta udubljena glava svetlećeg tastera Ø22 sa povratkom za BA9s sijalicu;ZB4BW35
Illuminated push button head, metal, flush, orange, Ø22, spring return, plain lens for BA9s bulb...
VAT-exclusive price: 935,00 |
VAT-inclusive price: 1.122,00 |
Illuminated push button head, metal, flush, orange, Ø22, spring return, plain lens for BA9s bulb
| range of product |
Harmony XB4
|
|
|---|---|---|
| product or component type |
Head for illuminated push-button
|
|
| device short name |
ZB4
|
|
| product compatibility |
BA 9s
|
|
| bezel material |
Chromium plated metal
|
|
| head type |
Standard
|
|
| mounting diameter |
22 mm
|
|
| sale per indivisible quantity |
1
|
|
| shape of signaling unit head |
Round
|
|
| type of operator |
spring return
|
|
| operator profile |
Orange flush, unmarked
|
|
| operator additional information |
With plain lens
|
| CAD overall width |
29 mm
|
|
|---|---|---|
| CAD overall height |
29 mm
|
|
| CAD overall depth |
32 mm
|
|
| net weight |
0.027 kg
|
|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| mechanical durability |
10000000 cycles
|
|
| electrical composition code |
M7 for <6 contacts using single blocks in front mounting with BA 9s
M8 for <6 contacts using single and double blocks in front mounting with BA 9s M9 for <2 contacts using single blocks in front mounting with BA 9s and transformer |
|
| device presentation |
Basic sub-assemblies
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…55 °C
|
|
| overvoltage category |
Class I conforming to IEC 60536
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
IP67 IP69 IP69K |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| IK degree of protection |
IK06 conforming to EN 50102
|
|
| standards |
JIS C8201-5-1
EN/IEC 60947-1 EN/IEC 60947-5-5 EN/IEC 60947-5-4 UL 508 CSA C22.2 No 14 EN/IEC 60947-5-1 JIS C8201-1 |
|
| product certifications |
GL
RINA DNV UL listed LROS (Lloyds register of shipping) BV CSA |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
27 g
|
|
| Package 1 Height |
3.6 cm
|
|
| Package 1 width |
4.2 cm
|
|
| Package 1 Length |
4.6 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
-
Harmony XB4 ZB4BW35
