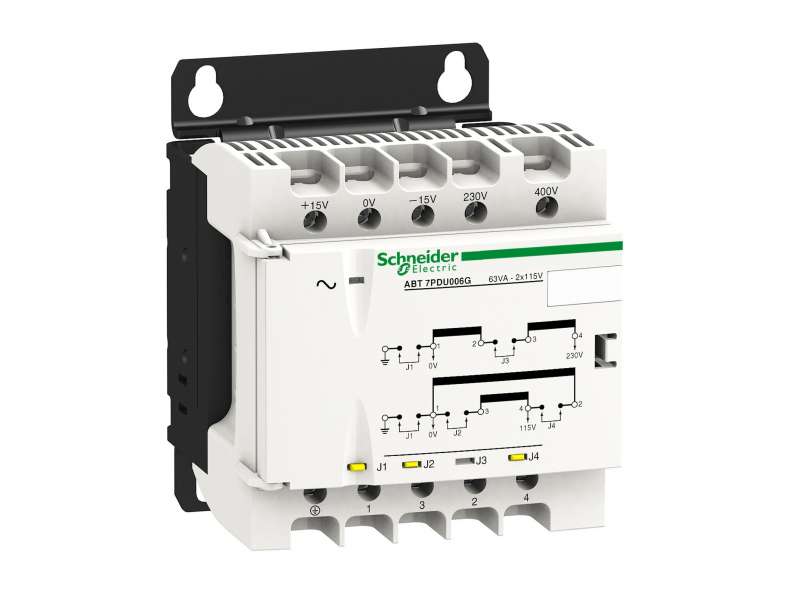

Schneider Electric Naponski transformator - 230..400 V - 2 x 115 V - 63 VA;ABT7PDU006G
Voltage transformer - 230..400 V - 2 x 115 V - 63 VA...
VAT-exclusive price: 12.593,00 |
VAT-inclusive price: 15.111,60 |
Voltage transformer - 230..400 V - 2 x 115 V - 63 VA
| range of product |
Modicon Universal
|
|
|---|---|---|
| product or component type |
Safety and isolation transformer
|
|
| rated power in VA |
63 VA
|
|
| input voltage |
230 V AC single phase, terminal(s): N-L1
400 V AC phase to phase, terminal(s): L1-L2 |
|
| output voltage |
115/230 V AC
|
|
| secondary winding |
Double
|
|
| protective cover |
With
|
|
| ambient air temperature for operation |
-20…60 °C
|
| input voltage limits |
207...253 V
360...440 V |
|
|---|---|---|
| network frequency limits |
47…63 Hz
|
|
| input voltage tolerance |
+/- 15 V
|
|
| efficiency |
84 %
|
|
| power dissipation in W |
12 W
|
|
| voltage variation at nominal load |
0,0382 at 230 V
0,0426 at 400 V |
|
| output sustained overvoltage |
0,025 (no load, hot state)
|
|
| maximum voltage drop at rated load |
4.28 %
|
|
| no load losses |
7.37 W
|
|
| short-circuit voltage |
0,066
|
|
| output protection type |
Against overload, protection technology: external
Against overvoltage, protection technology: external Against short-circuits, protection technology: external |
|
| connections - terminals |
For input connection: screw type terminals, connection capacity: 5 x 4 mm² AWG 11
For input ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 11 For output connection: screw type terminals, connection capacity: 4 x 4 mm² AWG 11 |
|
| marking |
CE
|
|
| fixing mode |
By 4 screws diameter: 5.5 mm on vertical panel, operating position: horizontal
By 4 screws diameter: 5.5 mm on vertical panel, operating position: vertical By clips on 35 x 15 mm symmetrical DIN rail By 4 screws diameter: 5.5 mm on horizontal panel with derating to 90 % |
|
| output coupling |
Grounding of secondary
Parallel Series by internal jumper |
|
| operating altitude |
3000 m
|
|
| electrical insulation class |
Class B
|
|
| status LED |
1 LED (orange)input voltage
|
|
| width |
87 mm
|
|
| height |
116 mm
|
|
| depth |
108 mm
|
|
| net weight |
1.94 kg
|
| product certifications |
UR
EAC |
|
|---|---|---|
| standards |
UL 506
|
|
| IP degree of protection |
IP20
|
|
| environmental characteristic |
EMC conforming to EN 62041
Safety conforming to EN 61558-1 Safety conforming to EN 61558-2-6 |
|
| ambient air temperature for storage |
-40…80 °C
|
|
| relative humidity |
0…95 % during operation
|
|
| overvoltage category |
Class I conforming to VDE 0106-1
|
|
| dielectric strength |
3200 V between input and ground
3200 V between output and ground 5100 V between input and output |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
2.281 kg
|
|
| Package 1 Height |
11.6 cm
|
|
| Package 1 width |
18.8 cm
|
-
Phaseo ABT7 ABL6 ABT7PDU006G
