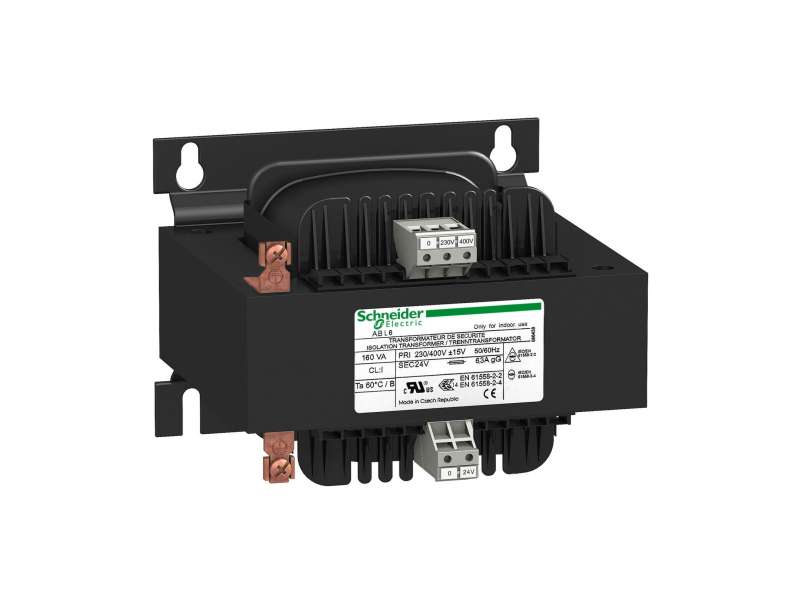

Schneider Electric Naponski transformator - 230..400 V - 1 x 12 V - 160 VA; ABL6TS16J
voltage transformer - 230..400 V - 1 x 12 V - 160 VA...
VAT-exclusive price: 14.586,00 |
VAT-inclusive price: 17.503,20 |
voltage transformer - 230..400 V - 1 x 12 V - 160 VA
| range of product |
Phaseo Optimum
|
|
|---|---|---|
| product or component type |
Safety and isolation transformer
|
|
| rated power in VA |
160 VA
|
|
| input voltage |
230 V AC single phase, terminal(s): N-L1
400 V AC phase to phase, terminal(s): L1-L2 |
|
| output voltage |
12 V AC
|
|
| secondary winding |
Single
|
|
| protective cover |
Without
|
|
| ambient air temperature for operation |
-20…50 °C
|
| input voltage limits |
360...440 V
207...253 V |
|
|---|---|---|
| network frequency limits |
47…63 Hz
|
|
| input voltage tolerance |
+/- 15 V
|
|
| efficiency |
88 %
|
|
| power dissipation in W |
21.8 W
|
|
| output sustained overvoltage |
7 % (no load, hot state)
|
|
| maximum voltage drop at rated load |
0.4 %
|
|
| no load losses |
9.1 W
|
|
| short-circuit voltage |
0,069
|
|
| output protection type |
Against overload, protection technology: external
Against overvoltage, protection technology: external Against short-circuits, protection technology: external |
|
| connections - terminals |
For input connection: screw type terminals, connection capacity: 5 x 4 mm² AWG 11
For input ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 11 For output connection: screw type terminals, connection capacity: 2 x 4 mm² AWG 11 |
|
| marking |
CE
|
|
| fixing mode |
By 4 screws diameter: 5.8 mm on vertical panel, operating position: horizontal
By 4 screws diameter: 5.8 mm on vertical panel, operating position: vertical By 4 screws diameter: 5.8 mm on horizontal panel with derating to 90 % |
|
| operating altitude |
3000 m
|
|
| electrical insulation class |
Class B
|
|
| width |
106 mm
|
|
| height |
112 mm
|
|
| depth |
81 mm
|
|
| net weight |
3.2 kg
|
| product certifications |
UR
EAC |
|
|---|---|---|
| standards |
UL 506
|
|
| IP degree of protection |
IP20
|
|
| environmental characteristic |
EMC conforming to EN 62041
Safety conforming to EN 61558-1 Safety conforming to EN 61558-2-6 |
|
| protective treatment |
TC
|
|
| ambient air temperature for storage |
-40…80 °C
|
|
| overvoltage category |
Class I conforming to VDE 0106-1
|
|
| dielectric strength |
2000 V between winding and ground
4000 V between primary and secondary |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
3.114 kg
|
|
| Package 1 Height |
19 cm
|
|
| Package 1 width |
16.2 cm
|
|
| Package 1 Length |
17.4 cm
|
|
| Unit Type of Package 2 |
P06
|
|
| Number of Units in Package 2 |
30
|
|
| Package 2 Weight |
106.51 kg
|
|
| Package 2 Height |
76 cm
|
|
| Package 2 width |
80 cm
|
|
| Package 2 Length |
60 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| PVC free |
Yes
|
| Warranty |
18 months
|
|---|
-
Phaseo ABT7 ABL6 ABL6TS16J
