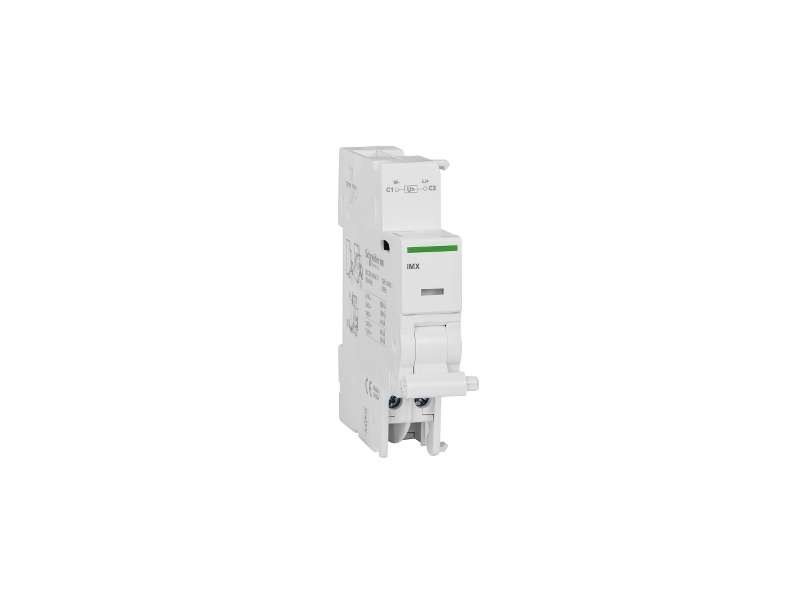

Schneider Electric Naponski okidač - iMX - zaštitna jedinica - 110..415 VAC;A9A26476

shunt trip release, Acti9, iMX, voltage release, 100...415 V AC...

Brand: Schneider Electric
Product Code: A9A26476
Availability: Check availability

VAT-exclusive price: 4.961,00

VAT-inclusive price: 5.953,20

Qnt:

Description
Specification

shunt trip release, Acti9, iMX, voltage release, 100...415 V AC

Main
range of product	Acti9
product or component type	Shunt trip release
device short name	IMX
[Uc] control circuit voltage	100...415 V AC 50/60 Hz 110...130 V DC
9 mm pitches	2

Complementary
range compatibility	Acti 9 (Acti9 iC65) Acti 9 (Acti 9 ARA) Acti 9 (Acti9 iDPN Vigi) Acti 9 (Acti9 iID) Acti 9 (Acti9 iSW-NA) Acti 9 (Acti 9 RCA) Acti 9 (Acti 9 iDPN (China version)) Acti 9 (Acti9 iC60) double terminals miniature circuit breaker Acti 9 (Acti 9 iC40)
local signalling	Action indicator
mounting mode	Clip-on
mounting support	DIN rail
comb busbar and distribution block compatibility	Top and bottom: YES
width	18 mm
colour	White
connections - terminals	Clamp terminal - 2 cable(s) 2.5 mm² - flexible with cable end Clamp terminal - 1 cable(s) 6 mm² - rigid Clamp terminal - 2 cable(s) 2.5 mm² - rigid Clamp terminal - 1 cable(s) 4 mm² - flexible
tightening torque	1 N.m
compatibility code	IMX

Environment
standards	EN/IEC 60947-5-1
tropicalisation	2 conforming to EN/IEC 60947-5-1
relative humidity	95 % at 55 °C
ambient air temperature for operation	-25…50 °C
ambient air temperature for storage	-40…85 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.8 cm
Package 1 Width	3.0 cm
Package 1 Length	9.3 cm
Package 1 Weight	71.0 g
Unit Type of Package 2	S03
Number of Units in Package 2	72
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	6.113 kg
Unit Type of Package 3	BB1
Number of Units in Package 3	8
Package 3 Height	8.7 cm
Package 3 Width	10.0 cm
Package 3 Length	26.7 cm
Package 3 Weight	625.0 g

Contractual warranty
Warranty	18 months
