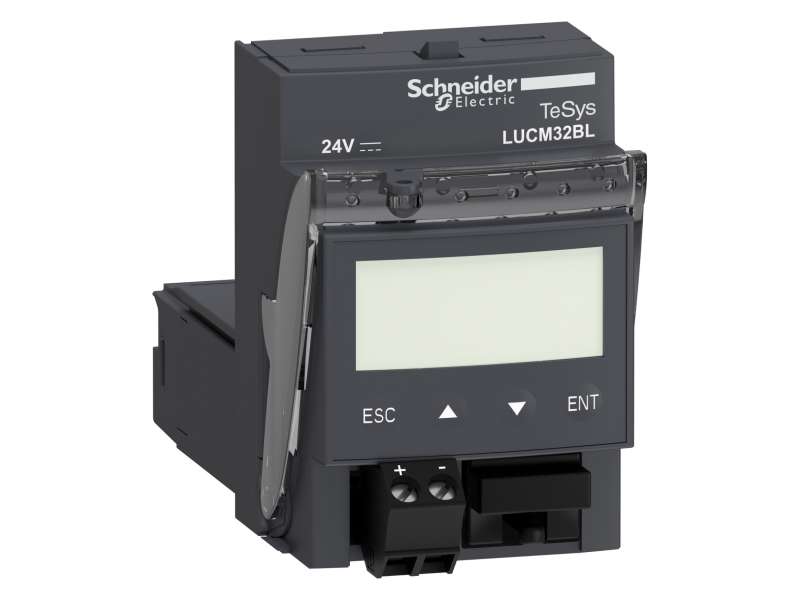

Schneider Electric Multifunkcionalna kontrolna jedinica LUCM - klasa 5...30 - 8...32 A - 24 V DC
Multifunction control unit, TeSys U, 8-32A, 1P/3P motors, protection & diagnostic, class 5-30, coil 24V DC...
VAT-exclusive price: 60.283,00 |
VAT-inclusive price: 72.339,60 |
Multifunction control unit, TeSys U, 8-32A, 1P/3P motors, protection & diagnostic, class 5-30, coil 24V DC
| range | TeSys |
|---|---|
| range of product | TeSys U |
| product name | TeSys U |
| device short name | LUCM |
| Product or component type | Multifunction control unit |
| Device application |
Motor control Motor protection |
| Product specific application | Most sophisticated control and protection requirements, with display |
| main function available |
Manual or automatic reset Monitoring function, indication of main motor parameters Overload, no-load running Protection function alarm Protection against overload and short-circuit Protection against phase failure and phase imbalance Earth fault protection Log function Differentiation of thermal overload and magnetic fault |
| product compatibility |
Power base LUB32 Power base LUB38 Power base LUB320 Power base LUB380 Reversing contactor breaker LU2B32FU Reversing contactor breaker LU2B38FU |
| [Ue] rated operational voltage | 690 V AC |
| network frequency | 40...60 Hz |
| load type |
3-phase motor - cooling: self-cooled - setting factory setting 3-phase motor - cooling: self-cooled, force cooled - setting settable Single-phase motor - cooling: self-cooled, force cooled - setting settable |
| utilisation category |
AC-43 AC-41 AC-44 |
| motor power kW |
15 kW at 400...440 V AC 50/60 Hz for 3 phases motors 15 kW at 500 V AC 50/60 Hz for 3 phases motors 18.5 kW at 690 V AC 50/60 Hz for 3 phases motors 7.5 kW at 400...440 V AC 50/60 Hz for 1 phase motors |
| rated motor current adjustment range | 8…32 A |
| thermal overload class |
Class 5…30 - frequency limit: 50…60 Hz - temperature compensation: -25…55 °C conforming to IEC 60947-6-2 Class 5…30 - frequency limit: 50…60 Hz - temperature compensation: -25…55 °C conforming to UL 508 |
| tripping threshold | 14.2 x Ir +/- 20 % |
| [Uc] control circuit voltage | 24 V DC |
| control circuit voltage limits |
20...28 V for DC circuit 24 V in operation 14.5 V for DC circuit 24 V drop-out |
|---|---|
| typical current consumption |
220 mA at 24 V DC I maximum while closing with LUB32 220 mA at 24 V DC I maximum while closing with LUB38 80 mA at 24 V DC I rms sealed with LUB32 80 mA at 24 V DC I rms sealed with LUB38 |
| heat dissipation |
1.8 W for control circuit with LUB32 1.8 W for control circuit with LUB38 0.8 W for external auxiliary circuit |
| operating time |
35 ms opening with LUB32 for control circuit 35 ms opening with LUB38 for control circuit 65 ms closing with LUB32 for control circuit 65 ms closing with LUB38 for control circuit |
| physical interface | RS485 multidrop - connector(s): RJ45 - location: front panel - communication protocol: Modbus RTU 19200 bit/s |
| return time | <= 200 ms |
| messages display capacity |
2 lines of 12 characters - display LCD - English - accuracy +/- 5 % - resolution 1 % of Ir 2 lines of 12 characters - display LCD - French - accuracy +/- 5 % - resolution 1 % of Ir 2 lines of 12 characters - display LCD - German - accuracy +/- 5 % - resolution 1 % of Ir 2 lines of 12 characters - display LCD - Italian - accuracy +/- 5 % - resolution 1 % of Ir 2 lines of 12 characters - display LCD - Spanish - accuracy +/- 5 % - resolution 1 % of Ir |
| reset |
Automatic reset - setting: setting range Manual - setting: factory setting Manual - setting: setting range Remote reset - setting: setting range |
| time before reset |
1…1000 s - reset manual or automatic reset - setting settable 120 s - reset manual - setting factory setting |
| user language |
English - setting factory setting English, French, German, Italian, Spanish - setting settable |
| information displayed |
Average current (factory setting) Average current (settable) Cause of last 5 faults (settable) Current in phase (settable) Earth leakage current (settable) Phase imbalance (settable) Thermal state of motor (settable) |
| standards |
EN 60947-6-2 IEC 60947-6-2 UL 60947-4-1, with phase barrier CSA C22.2 No 60947-4-1, with phase barrier |
| Product certifications |
CE UL CSA CCC EAC ASEFA ATEX Marine |
| [Ui] rated insulation voltage |
690 V conforming to IEC 60947-6-2 600 V conforming to UL 60947-4-1 600 V conforming to CSA C22.2 No 60947-4-1 |
| [Uimp] rated impulse withstand voltage | IEC 60947-6-2 6 kV |
| safe separation of circuit |
400 V SELV between the control and auxiliary circuits conforming to IEC 60947-1 400 V SELV between the control or auxiliary circuit and the main circuit conforming to IEC 60947-1 |
| fixing mode | Plug-in (front face) |
| Width | 45 mm |
| Height | 66 mm |
| Depth | 60 mm |
| Net weight | 0.175 kg |
| compatibility code | LUCM |
| IP degree of protection |
IP20 front panel and wired terminals conforming to IEC 60947-1 IP20 other faces conforming to IEC 60947-1 IP40 front panel outside connection zone conforming to IEC 60947-1 |
|---|---|
| protective treatment | TH conforming to IEC 60068 |
| ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| operating altitude | 2000 m |
| fire resistance |
960 °C parts supporting live components conforming to IEC 60695-2-12 650 °C conforming to IEC 60695-2-12 |
| shock resistance |
10 gn power poles open conforming to IEC 60068-2-27 15 gn power poles closed conforming to IEC 60068-2-27 |
| vibration resistance |
2 gn, 5…300 Hz, power poles open conforming to IEC 60068-2-6 4 gn, 5…300 Hz, power poles closed conforming to IEC 60068-2-6 |
| resistance to electrostatic discharge |
8 kV level 3 in open air conforming to IEC 61000-4-2 8 kV level 4 on contact conforming to IEC 61000-4-2 |
| resistance to radiated fields | 10 V/m 3 conforming to IEC 61000-4-3 |
| resistance to fast transients |
2 kV class 3 serial link conforming to IEC 61000-4-4 4 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4 |
| immunity to radioelectric fields | 10 V conforming to IEC 61000-4-6 |
| immunity to microbreaks | 3 ms |
| immunity to voltage dips | 70 % / 500 ms conforming to IEC 61000-4-11 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 178 g |
| Package 1 Height | 5.5 cm |
| Package 1 width | 8.5 cm |
| Package 1 Length | 10.2 cm |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 9 |
| Package 2 Weight | 1.764 kg |
| Package 2 Height | 15 cm |
| Package 2 width | 15 cm |
| Package 2 Length | 40 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
|
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| PVC free | Yes |
| Halogen content performance | Halogen free plastic parts product |
| Warranty | 18 months |
|---|
-
TeSys U LUCM32BL
