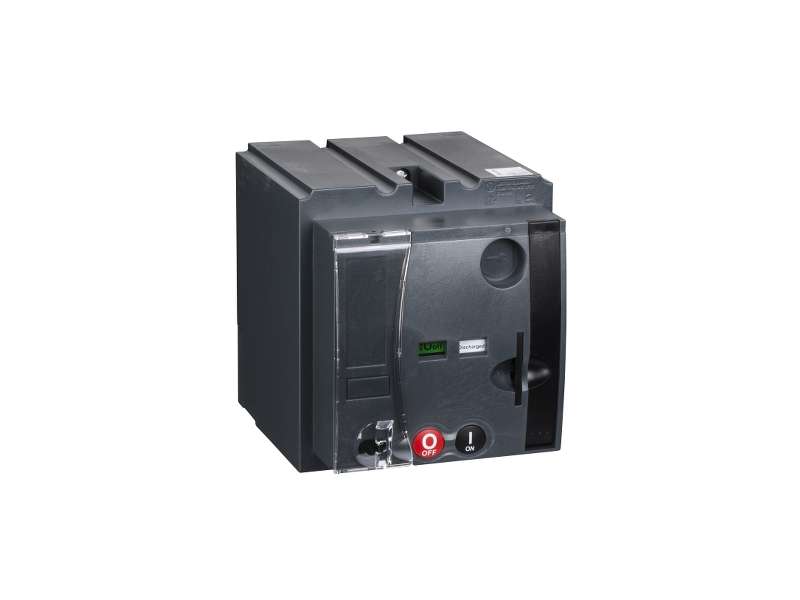

Schneider Electric Motorni pogon - MT400/630 - 24..30 V DC;LV432643
Standard motor mechanism module MT400/630, ComPacT NSX400/630, 24/30VDC...
VAT-exclusive price: 73.514,00 |
VAT-inclusive price: 88.216,80 |
Standard motor mechanism module MT400/630, ComPacT NSX400/630, 24/30VDC
| device short name | MT400/630 |
|---|---|
| product or component type | Motor mechanism |
| device application | Automatic spring charging |
| range compatibility |
ComPacT NSX400 new generation ComPacT NSX630 new generation ComPact NSX400 ComPact NSX630 ComPacT NSX DC new generation NSX400 DC ComPacT NSX DC new generation NSX630 DC Compact NSX400 DC Compact NSX630 DC PowerPact Multistandard EasyPact CVS400 EasyPact CVS630 PowerPact L |
| control type | Standard |
| [Uc] control circuit voltage | 24...30 V DC |
| circuit breaker mounting mode | Fixed |
| circuit breaker frame rated current |
400 A 630 A |
| control signal type |
Impulse Maintained |
|---|---|
| circuit breaker response time |
< 700 ms open < 80 ms closed |
| maximum operating frequency | 4 per minute |
| maximum power consumption in VA |
500 VA closing 500 VA opening |
| locking options description |
Padlocking in OFF position 1 to 3 padlocks Ø 5 to Ø 8 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 3.152 kg |
| Package 1 Height | 17.0 cm |
| Package 1 width | 17.0 cm |
| Package 1 Length | 19.5 cm |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 6 |
| Package 2 Weight | 19.672 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Warranty | 18 months |
|---|
