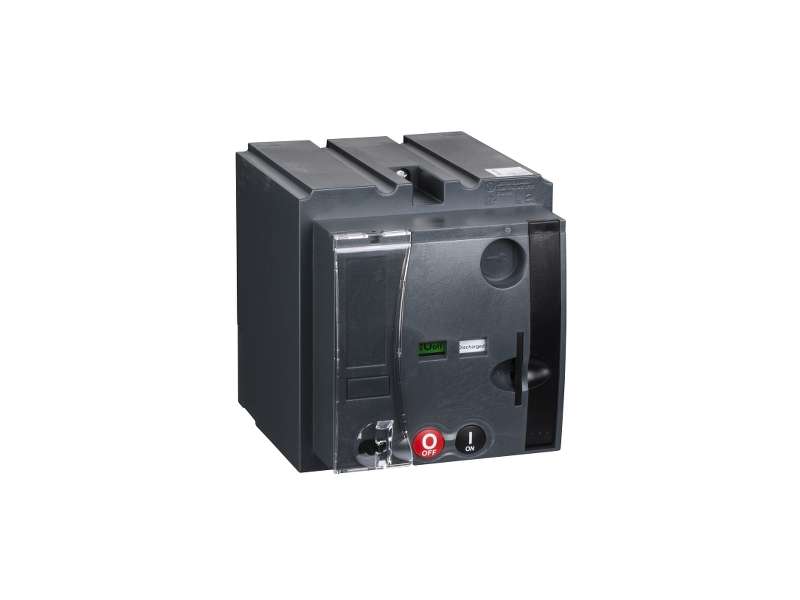

Schneider Electric Motorni pogon - MT400/630 - 110..130 V AC 50/60Hz;LV432640

Standard motor mechanism module MT400/630, ComPacT NSX400/630, 110/130VAC 50/60Hz...

Brand: Schneider Electric
Product Code: LV432640
Availability: Check availability

VAT-exclusive price: 65.653,00

VAT-inclusive price: 78.783,60

Qnt:

Description
Specification

Standard motor mechanism module MT400/630, ComPacT NSX400/630, 110/130VAC 50/60Hz

Main
device short name	MT400/630
product or component type	Motor mechanism
device application	Automatic spring charging
range compatibility	ComPacT NSX400 new generation ComPacT NSX630 new generation ComPact NSX400 ComPact NSX630 ComPacT NSX DC new generation NSX400 DC ComPacT NSX DC new generation NSX630 DC Compact NSX400 DC Compact NSX630 DC PowerPact Multistandard EasyPact CVS400 EasyPact CVS630 PowerPact L
control type	Standard
[Uc] control circuit voltage	110...130 V AC 50/60 Hz
circuit breaker mounting mode	Fixed
circuit breaker frame rated current	630 A 400 A

Complementary
control signal type	Impulse Maintained
circuit breaker response time	< 700 ms open < 80 ms closed
maximum operating frequency	4 per minute
maximum power consumption in VA	500 VA closing 500 VA opening
locking options description	Padlocking in OFF position 1 to 3 padlocks Ø 5 to Ø 8

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	3.164 kg
Package 1 Height	17.0 cm
Package 1 width	17.0 cm
Package 1 Length	19.5 cm
Unit Type of Package 2	S04
Number of Units in Package 2	6
Package 2 Weight	19.798 kg
Package 2 Height	30.0 cm
Package 2 width	40.0 cm
Package 2 Length	60.0 cm

Contractual warranty
Warranty	18 months
