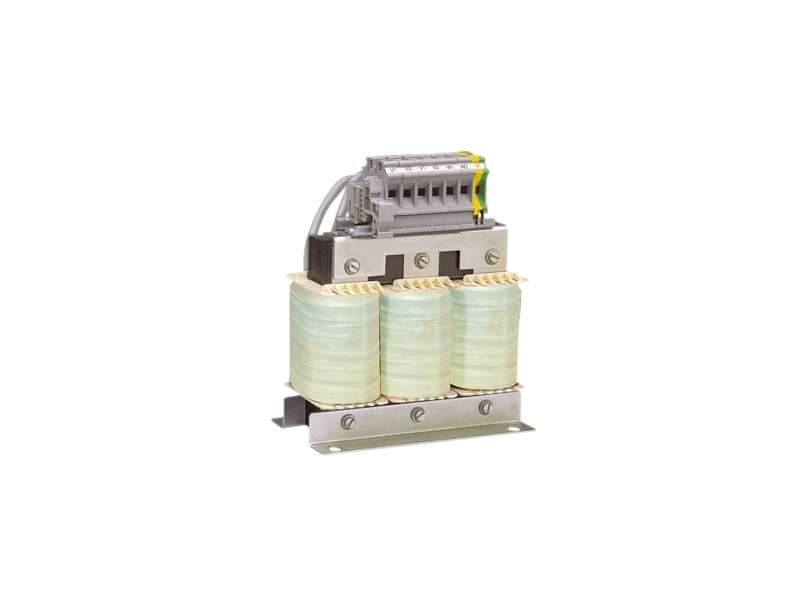

Schneider Electric Motorna prigušnica - 481 A - za frekventne regulatore Altivar - IP00;VW3A5106
motor choke - 481 A - for variable speed drive Altivar - IP00...
VAT-exclusive price: 221.554,00 |
VAT-inclusive price: 265.864,80 |
motor choke - 481 A - for variable speed drive Altivar - IP00
| product or component type | Motor choke |
|---|---|
| range compatibility |
Altivar 61 Altivar 71 Altivar Process ATV600 Altivar 61Q Altivar Process ATV900 Altivar 71Q |
| product specific application | Output filter |
| [In] rated current | 481 A |
| product compatibility |
ATV61HC16N4 ATV61HC22N4 ATV61HC31Y ATV61HC40Y ATV61HD90M3X ATV61QC20N4 ATV61QC25N4 ATV61QC25Y ATV61QC31Y ATV71HC16N4 ATV71HC20N4 ATV71HC25N4 ATV71HC25Y ATV71HC31Y ATV71QC16N4 ATV71QC20N4 ATV71QC20Y ATV71QC25Y ATV630 variable speed drive wall mount - 220 kW, 380...480 V ATV930 variable speed drive wall mount - 220 kW, 380...480 V |
| nedded quantity | 3 |
| electrical connection | Tag connector 2 x M12 |
| maximum motor cable length |
250 m shielded cable P motor 90 kW at 200...240 V 300 m unshielded cable P motor 90 kW at 200...240 V 250 m shielded cable P motor 160…220 kW at 380...480 V 1 300 m unshielded cable P motor 160…220 kW at 380...480 V 1 150 m shielded cable P motor 250…400 kW at 500...690 V 1 250 m unshielded cable P motor 250…400 kW at 500...690 V 1 250 m shielded cable P motor 250…400 kW at 500...690 V 2 400 m unshielded cable P motor 250…400 kW at 500...690 V 2 |
|---|---|
| dv/dt |
500 V/µs max at 400 V 750 V/µs max at 500 V 1000 V/µs max at 690 V |
| thermal losses | 530 W |
| maximum drive output frequency | 100 Hz |
| ambient air temperature for operation | -10…50 °C |
| net weight | 58 kg |
| IP degree of protection |
IP20 (with kits VW3A9612,613) IP00 |
|---|---|
| ambient air temperature for storage | -25…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 31.5 kg |
| Package 1 Height | 58.0 cm |
| Package 1 width | 60.0 cm |
| Package 1 Length | 80.0 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 1 |
| Package 2 Weight | 40.0 kg |
| Package 2 Height | 77.0 cm |
| Package 2 width | 80.0 cm |
| Package 2 Length | 60.0 cm |
| Warranty | 18 months |
|---|
| product or component type | Motor choke |
|---|---|
| range compatibility |
Altivar 61 Altivar 71 Altivar Process ATV600 Altivar 61Q Altivar Process ATV900 Altivar 71Q |
| product specific application | Output filter |
| [In] rated current | 481 A |
| product compatibility |
ATV61HC16N4 ATV61HC22N4 ATV61HC31Y ATV61HC40Y ATV61HD90M3X ATV61QC20N4 ATV61QC25N4 ATV61QC25Y ATV61QC31Y ATV71HC16N4 ATV71HC20N4 ATV71HC25N4 ATV71HC25Y ATV71HC31Y ATV71QC16N4 ATV71QC20N4 ATV71QC20Y ATV71QC25Y ATV630 variable speed drive wall mount - 220 kW, 380...480 V ATV930 variable speed drive wall mount - 220 kW, 380...480 V |
| nedded quantity | 3 |
| electrical connection | Tag connector 2 x M12 |
| maximum motor cable length |
250 m shielded cable P motor 90 kW at 200...240 V 300 m unshielded cable P motor 90 kW at 200...240 V 250 m shielded cable P motor 160…220 kW at 380...480 V 1 300 m unshielded cable P motor 160…220 kW at 380...480 V 1 150 m shielded cable P motor 250…400 kW at 500...690 V 1 250 m unshielded cable P motor 250…400 kW at 500...690 V 1 250 m shielded cable P motor 250…400 kW at 500...690 V 2 400 m unshielded cable P motor 250…400 kW at 500...690 V 2 |
|---|---|
| dv/dt |
500 V/µs max at 400 V 750 V/µs max at 500 V 1000 V/µs max at 690 V |
| thermal losses | 530 W |
| maximum drive output frequency | 100 Hz |
| ambient air temperature for operation | -10…50 °C |
| net weight | 58 kg |
| IP degree of protection |
IP20 (with kits VW3A9612,613) IP00 |
|---|---|
| ambient air temperature for storage | -25…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 31.5 kg |
| Package 1 Height | 58.0 cm |
| Package 1 width | 60.0 cm |
| Package 1 Length | 80.0 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 1 |
| Package 2 Weight | 40.0 kg |
| Package 2 Height | 77.0 cm |
| Package 2 width | 80.0 cm |
| Package 2 Length | 60.0 cm |
| Warranty | 18 months |
|---|
