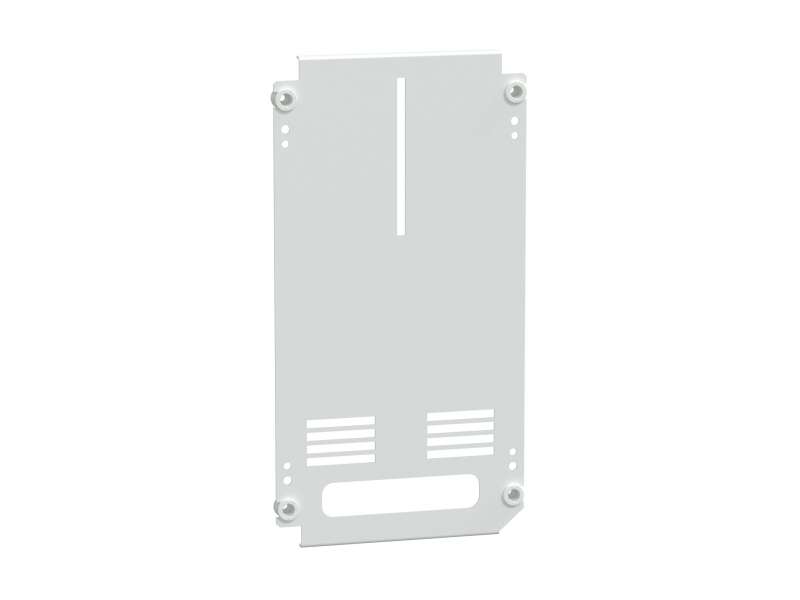

Schneider Electric Montažna ploča za 1 3P brojilo Š600; LVS03156

Mounting plate, PrismaSeT G, for 1 Kilowatt-hour meters 3P/3P+N, 9M, W300mm...

Brand: Schneider Electric
Product Code: LVS03156
Availability: Check availability

VAT-exclusive price: 3.768,00

VAT-inclusive price: 4.521,60

Qnt:

Mounting plate, PrismaSeT G, for 1 Kilowatt-hour meters 3P/3P+N, 9M, W300mm

Main
Range	PrismaSeT
Range of product	PrismaSeT G
Product or component type	Mounting plate
Accessory / separate part category	Installation accessory
Range compatibility	PrismaSeT (PrismaSeT G) duct
installation description	Floor-standing duct - width 300 mm Wall-mounted duct - width 300 mm
Installed device	Power meters: kilowatt-hour meters - vertical installation
Poles description	1 x 4P: kilowatt-hour meters vertical installation
Number of vertical modules [50 mm]	9 module(s): kilowatt-hour meters in 300 mm Widefloor-standing duct 9 module(s): kilowatt-hour meters in 300 mm Widewall-mounted duct
Standards	IEC 61439-2
Product certifications	ASTA

Complementary
Material	Sheet steel
Protective treatment	Electrophoresis treatment and hot-polymerised polyester epoxy powder
Surface finish	Textured Matt Galvanized
Colour	White (RAL 9003)
Width	300 mm
Height	400 mm
Product weight	1.06 kg
Functional unit	300 mm PrismaSeT G floor-standing duct power meters kilowatt-hour meters vertical 4P 1 9 50 mm 300 mm PrismaSeT G wall-mounted duct power meters kilowatt-hour meters vertical 4P 1 9 50 mm

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.0 cm
Package 1 Width	22.0 cm
Package 1 Length	42.2 cm
Package 1 Weight	1.081 kg
Unit Type of Package 2	S04
Number of Units in Package 2	16
Package 2 Height	30.0 cm
Package 2 Width	40.0 cm
Package 2 Length	60.0 cm
Package 2 Weight	18.044 kg
