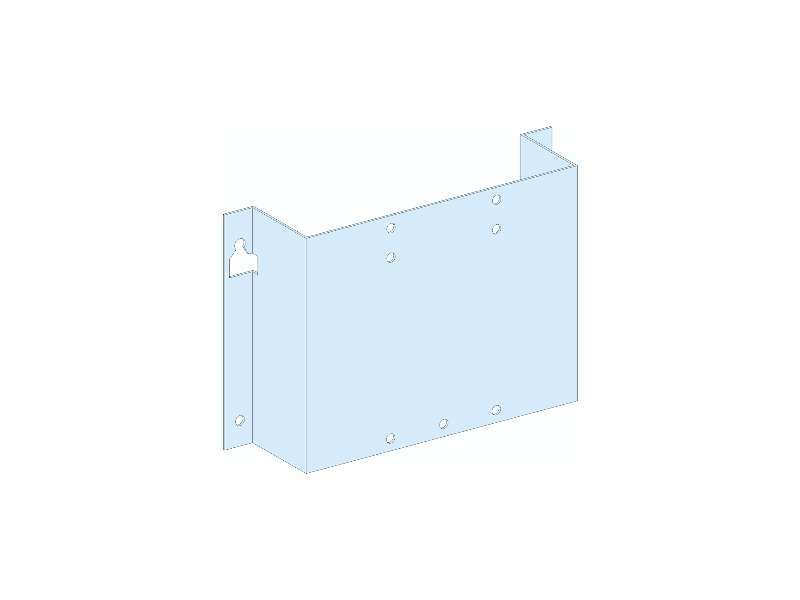

Schneider Electric Montažna ploča NSX/CVS/Vigi/INS 250 vertikalne ugradnje, fiksni, ručica; LVS03050
Mounting plate, PrismaSeT G, for NSX/CVS/Vigi/INS 250A, vertical fixed, toggle, W600mm...
VAT-exclusive price: 3.276,00 |
VAT-inclusive price: 3.931,20 |
Mounting plate, PrismaSeT G, for NSX/CVS/Vigi/INS 250A, vertical fixed, toggle, W600mm
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT G |
| Product or component type | Mounting plate |
| Accessory / separate part category | Installation accessory |
| Range compatibility |
PrismaSeT (PrismaSeT Pack 250) duct PrismaSeT (PrismaSeT G) duct PrismaSeT (PrismaSeT P) cubicle |
| installation description |
Floor-standing duct - width 300 mm Wall-mounted duct - width 300 mm Cubicle - width 400 mm depth 400 mm Pack enclosure - width 300 mm |
| Installed device |
EasyPact: fixed CVS100...160 without earth leakage protection - control: toggle - vertical installation EasyPact: fixed CVS250 without earth leakage protection - control: toggle - vertical installation ComPact: fixed INS250 - control: direct front rotary handle - vertical installation ComPact: fixed INV100 - control: direct front rotary handle - vertical installation ComPact: fixed INV160 - control: direct front rotary handle - vertical installation ComPact: fixed INV200 - control: direct front rotary handle - vertical installation ComPact: fixed INV250 - control: direct front rotary handle - vertical installation ComPact: fixed NSX100...160 without earth leakage protection - control: toggle - vertical installation ComPact: fixed NSX250 without earth leakage protection - control: toggle - vertical installation EasyPact: fixed CVS100...160 with earth leakage protection - control: toggle - vertical installation EasyPact: fixed CVS250 with earth leakage protection - control: toggle - vertical installation ComPact: fixed NSX100...160 with earth leakage protection - control: toggle - vertical installation ComPact: fixed NSX250 with earth leakage protection - control: toggle - vertical installation ComPact: plug-in NSX100...160 without earth leakage protection - control: toggle - vertical installation ComPact: plug-in NSX250 without earth leakage protection - control: toggle - vertical installation ComPact: plug-in NSX100...160 with earth leakage protection - control: toggle - vertical installation ComPact: plug-in NSX250 with earth leakage protection - control: toggle - vertical installation |
| Poles description |
1 x 3P: fixed INS250 vertical installation 1 x 4P: fixed INS250 vertical installation 1 x 3P: fixed INV250 vertical installation 1 x 4P: fixed INV250 vertical installation 1 x 3P: fixed INV100 vertical installation 1 x 4P: fixed INV100 vertical installation 1 x 3P: fixed INV160 vertical installation 1 x 4P: fixed INV160 vertical installation 1 x 3P: fixed INV200 vertical installation 1 x 4P: fixed INV200 vertical installation 1 x 3P: fixed CVS100...160 vertical installation 1 x 4P: fixed CVS100...160 vertical installation 1 x 3P: fixed CVS250 vertical installation 1 x 4P: fixed CVS250 vertical installation 1 x 3P: fixed NSX100...160 vertical installation 1 x 4P: fixed NSX100...160 vertical installation 1 x 3P: plug-in NSX100...160 vertical installation 1 x 4P: plug-in NSX100...160 vertical installation 1 x 3P: fixed NSX250 vertical installation 1 x 4P: fixed NSX250 vertical installation 1 x 3P: plug-in NSX250 vertical installation 1 x 4P: plug-in NSX250 vertical installation |
| Condition of using cable tie | Need additional plate (1M high) when installation of device is in vertical |
| Number of vertical modules [50 mm] |
9 module(s): CVS100...160 without earth leakage protection , direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure) 9 module(s): CVS100...160 without earth leakage protection , direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure) 9 module(s): CVS100...160 without earth leakage protection , direct with long terminal shield in 300 mm WidePack enclosure (cable coming from top or bottom of enclosure) 9 module(s): CVS250 without earth leakage protection , direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure) 9 module(s): CVS250 without earth leakage protection , direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure) 9 module(s): CVS250 without earth leakage protection , direct with long terminal shield in 300 mm WidePack enclosure (cable coming from top or bottom of enclosure) 9 module(s): INS250, direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure) 9 module(s): INS250, direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure) 9 module(s): INV100, direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure) 9 module(s): INV100, direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure) 9 module(s): INV160, direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure) 9 module(s): INV160, direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure) 9 module(s): INV200, direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure) 9 module(s): INV200, direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure) 9 module(s): INV250, direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure) 9 module(s): INV250, direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure) 9 module(s): NSX100...160 without earth leakage protection , direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure) 9 module(s): NSX100...160 without earth leakage protection , direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure) 9 module(s): NSX100...160 without earth leakage protection , front connection in 400 mm Widecubicle 9 module(s): NSX100...160 without earth leakage protection , direct with long terminal shield in 300 mm WidePack enclosure (cable coming from top or bottom of enclosure) 9 module(s): NSX250 without earth leakage protection , direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure) 9 module(s): NSX250 without earth leakage protection , direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure) 9 module(s): NSX250 without earth leakage protection , front connection in 400 mm Widecubicle 9 module(s): NSX250 without earth leakage protection , direct with long terminal shield in 300 mm WidePack enclosure (cable coming from top or bottom of enclosure) 13 module(s): CVS100...160 with earth leakage protection , direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure) 13 module(s): CVS100...160 with earth leakage protection , direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure) 13 module(s): CVS250 with earth leakage protection , direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure) 13 module(s): CVS250 with earth leakage protection , direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure) 13 module(s): NSX100...160 with earth leakage protection , direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure) 13 module(s): NSX100...160 with earth leakage protection , direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure) 11 module(s): NSX100...160 with earth leakage protection , front connection in 400 mm Widecubicle 13 module(s): NSX100...160 with earth leakage protection , direct with long terminal shield in 300 mm WidePack enclosure (cable coming from top or bottom of enclosure) 13 module(s): NSX250 with earth leakage protection , direct with long terminal shield in 300 mm Widefloor-standing duct (cable coming from top or bottom of enclosure) 13 module(s): NSX250 with earth leakage protection , direct with long terminal shield in 300 mm Widewall-mounted duct (cable coming from top or bottom of enclosure) 11 module(s): NSX250 with earth leakage protection , front connection in 400 mm Widecubicle 13 module(s): NSX250 with earth leakage protection , direct with long terminal shield in 300 mm WidePack enclosure (cable coming from top or bottom of enclosure) |
| Standards | IEC 61439-2 |
| Product certifications | ASTA |
| Material | Sheet steel |
|---|---|
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish |
Matt Textured |
| Colour | White (RAL 9003) |
| Width | 300 mm |
| Height | 250 mm |
| Net weight | 0.54 kg |
| Functional unit |
300 mm PrismaSeT G floor-standing duct EasyPact CVS100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9 178 mm 300 mm PrismaSeT G wall-mounted duct EasyPact CVS100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9 178 mm 300 mm PrismaSeT G floor-standing duct EasyPact CVS100...160 without fixed toggle vertical 4P 1 direct with long terminal shield 9 178 mm 300 mm PrismaSeT G wall-mounted duct EasyPact CVS100...160 without fixed toggle vertical 4P 1 direct with long terminal shield 9 178 mm 300 mm Prisma Pack 250 Pack enclosure EasyPact CVS100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9 178 mm 300 mm Prisma Pack 250 Pack enclosure EasyPact CVS100...160 without fixed toggle vertical 4P 1 direct with long terminal shield 9 178 mm 300 mm PrismaSeT G floor-standing duct EasyPact CVS250 without fixed toggle vertical 3P 1 direct with long terminal shield 9 178 mm 300 mm PrismaSeT G wall-mounted duct EasyPact CVS250 without fixed toggle vertical 3P 1 direct with long terminal shield 9 178 mm 300 mm PrismaSeT G floor-standing duct EasyPact CVS250 without fixed toggle vertical 4P 1 direct with long terminal shield 9 178 mm 300 mm PrismaSeT G wall-mounted duct EasyPact CVS250 without fixed toggle vertical 4P 1 direct with long terminal shield 9 178 mm 300 mm Prisma Pack 250 Pack enclosure EasyPact CVS250 without fixed toggle vertical 3P 1 direct with long terminal shield 9 178 mm 300 mm Prisma Pack 250 Pack enclosure EasyPact CVS250 without fixed toggle vertical 4P 1 direct with long terminal shield 9 178 mm 300 mm PrismaSeT G floor-standing duct ComPact INS250 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 203 mm 300 mm PrismaSeT G wall-mounted duct ComPact INS250 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 203 mm 300 mm PrismaSeT G floor-standing duct ComPact INS250 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 203 mm 300 mm PrismaSeT G wall-mounted duct ComPact INS250 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 203 mm 300 mm PrismaSeT G floor-standing duct ComPact INV100 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 203 mm 300 mm PrismaSeT G wall-mounted duct ComPact INV100 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 203 mm 300 mm PrismaSeT G floor-standing duct ComPact INV100 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 203 mm 300 mm PrismaSeT G wall-mounted duct ComPact INV100 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 203 mm 300 mm PrismaSeT G floor-standing duct ComPact INV160 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 203 mm 300 mm PrismaSeT G wall-mounted duct ComPact INV160 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 203 mm 300 mm PrismaSeT G floor-standing duct ComPact INV160 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 203 mm 300 mm PrismaSeT G wall-mounted duct ComPact INV160 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 203 mm 300 mm PrismaSeT G floor-standing duct ComPact INV200 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 203 mm 300 mm PrismaSeT G wall-mounted duct ComPact INV200 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 203 mm 300 mm PrismaSeT G floor-standing duct ComPact INV200 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 203 mm 300 mm PrismaSeT G wall-mounted duct ComPact INV200 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 203 mm 300 mm PrismaSeT G floor-standing duct ComPact INV250 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 203 mm 300 mm PrismaSeT G wall-mounted duct ComPact INV250 fixed direct front rotary handle vertical 3P 1 direct with long terminal shield 9 203 mm 300 mm PrismaSeT G floor-standing duct ComPact INV250 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 203 mm 300 mm PrismaSeT G wall-mounted duct ComPact INV250 fixed direct front rotary handle vertical 4P 1 direct with long terminal shield 9 203 mm 300 mm PrismaSeT G floor-standing duct ComPact NSX100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9 178 mm 300 mm PrismaSeT G wall-mounted duct ComPact NSX100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9 178 mm 300 mm PrismaSeT G floor-standing duct ComPact NSX100...160 without fixed toggle vertical 4P 1 direct with long terminal shield 9 178 mm 300 mm PrismaSeT G wall-mounted duct ComPact NSX100...160 without fixed toggle vertical 4P 1 direct with long terminal shield 9 178 mm 400 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed toggle vertical 3P 1 front connection 9 178 mm 400 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed toggle vertical 4P 1 front connection 9 178 mm 400 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in toggle vertical 3P 1 front connection 9 178 mm 400 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without plug-in toggle vertical 4P 1 front connection 9 178 mm 300 mm Prisma Pack 250 Pack enclosure ComPact NSX100...160 without fixed toggle vertical 3P 1 direct with long terminal shield 9 178 mm 300 mm Prisma Pack 250 Pack enclosure ComPact NSX100...160 without fixed toggle vertical 4P 1 direct with long terminal shield 9 178 mm 300 mm PrismaSeT G floor-standing duct ComPact NSX250 without fixed toggle vertical 3P 1 direct with long terminal shield 9 178 mm 300 mm PrismaSeT G wall-mounted duct ComPact NSX250 without fixed toggle vertical 3P 1 direct with long terminal shield 9 178 mm 300 mm PrismaSeT G floor-standing duct ComPact NSX250 without fixed toggle vertical 4P 1 direct with long terminal shield 9 178 mm 300 mm PrismaSeT G wall-mounted duct ComPact NSX250 without fixed toggle vertical 4P 1 direct with long terminal shield 9 178 mm 400 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed toggle vertical 3P 1 front connection 9 178 mm 400 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed toggle vertical 4P 1 front connection 9 178 mm 400 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in toggle vertical 3P 1 front connection 9 178 mm 400 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without plug-in toggle vertical 4P 1 front connection 9 178 mm 300 mm Prisma Pack 250 Pack enclosure ComPact NSX250 without fixed toggle vertical 3P 1 direct with long terminal shield 9 178 mm 300 mm Prisma Pack 250 Pack enclosure ComPact NSX250 without fixed toggle vertical 4P 1 direct with long terminal shield 9 178 mm 300 mm PrismaSeT G floor-standing duct EasyPact CVS100...160 with fixed toggle vertical 3P 1 direct with long terminal shield 13 278 mm 300 mm PrismaSeT G wall-mounted duct EasyPact CVS100...160 with fixed toggle vertical 3P 1 direct with long terminal shield 13 278 mm 300 mm PrismaSeT G floor-standing duct EasyPact CVS100...160 with fixed toggle vertical 4P 1 direct with long terminal shield 13 278 mm 300 mm PrismaSeT G wall-mounted duct EasyPact CVS100...160 with fixed toggle vertical 4P 1 direct with long terminal shield 13 278 mm 300 mm PrismaSeT G floor-standing duct EasyPact CVS250 with fixed toggle vertical 3P 1 direct with long terminal shield 13 278 mm 300 mm PrismaSeT G wall-mounted duct EasyPact CVS250 with fixed toggle vertical 3P 1 direct with long terminal shield 13 278 mm 300 mm PrismaSeT G floor-standing duct EasyPact CVS250 with fixed toggle vertical 4P 1 direct with long terminal shield 13 278 mm 300 mm PrismaSeT G wall-mounted duct EasyPact CVS250 with fixed toggle vertical 4P 1 direct with long terminal shield 13 278 mm 300 mm PrismaSeT G floor-standing duct ComPact NSX100...160 with fixed toggle vertical 3P 1 direct with long terminal shield 13 278 mm 300 mm PrismaSeT G wall-mounted duct ComPact NSX100...160 with fixed toggle vertical 3P 1 direct with long terminal shield 13 278 mm 300 mm PrismaSeT G floor-standing duct ComPact NSX100...160 with fixed toggle vertical 4P 1 direct with long terminal shield 13 278 mm 300 mm PrismaSeT G wall-mounted duct ComPact NSX100...160 with fixed toggle vertical 4P 1 direct with long terminal shield 13 278 mm 400 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed toggle vertical 3P 1 front connection 11 278 mm 400 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed toggle vertical 4P 1 front connection 11 278 mm 400 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in toggle vertical 3P 1 front connection 11 278 mm 400 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with plug-in toggle vertical 4P 1 front connection 11 278 mm 300 mm Prisma Pack 250 Pack enclosure ComPact NSX100...160 with fixed toggle vertical 3P 1 direct with long terminal shield 13 278 mm 300 mm Prisma Pack 250 Pack enclosure ComPact NSX100...160 with fixed toggle vertical 4P 1 direct with long terminal shield 13 278 mm 300 mm PrismaSeT G floor-standing duct ComPact NSX250 with fixed toggle vertical 3P 1 direct with long terminal shield 13 278 mm 300 mm PrismaSeT G wall-mounted duct ComPact NSX250 with fixed toggle vertical 3P 1 direct with long terminal shield 13 278 mm 300 mm PrismaSeT G floor-standing duct ComPact NSX250 with fixed toggle vertical 4P 1 direct with long terminal shield 13 278 mm 300 mm PrismaSeT G wall-mounted duct ComPact NSX250 with fixed toggle vertical 4P 1 direct with long terminal shield 13 278 mm 400 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed toggle vertical 3P 1 front connection 11 278 mm 400 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed toggle vertical 4P 1 front connection 11 278 mm 400 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in toggle vertical 3P 1 front connection 11 278 mm 400 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with plug-in toggle vertical 4P 1 front connection 11 278 mm 300 mm Prisma Pack 250 Pack enclosure ComPact NSX250 with fixed toggle vertical 3P 1 direct with long terminal shield 13 278 mm 300 mm Prisma Pack 250 Pack enclosure ComPact NSX250 with fixed toggle vertical 4P 1 direct with long terminal shield 13 278 mm |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.400 cm |
| Package 1 Width | 14.100 cm |
| Package 1 Length | 22.000 cm |
| Package 1 Weight | 571.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 16.500 cm |
| Package 2 Width | 51.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 18.292 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 83.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 156.500 kg |
