Schneider Electric Montažna ploča ISFT 100 vertikalna; LVS03120

Mounting plate, PrismaSeT G, for FuPacT ISFT100/100N, vertical fixed, 6M, W600/850mm...

Brand: Schneider Electric
Product Code: LVS03120
Availability: Check availability

VAT-exclusive price: 3.804,00

VAT-inclusive price: 4.564,80

Qnt:

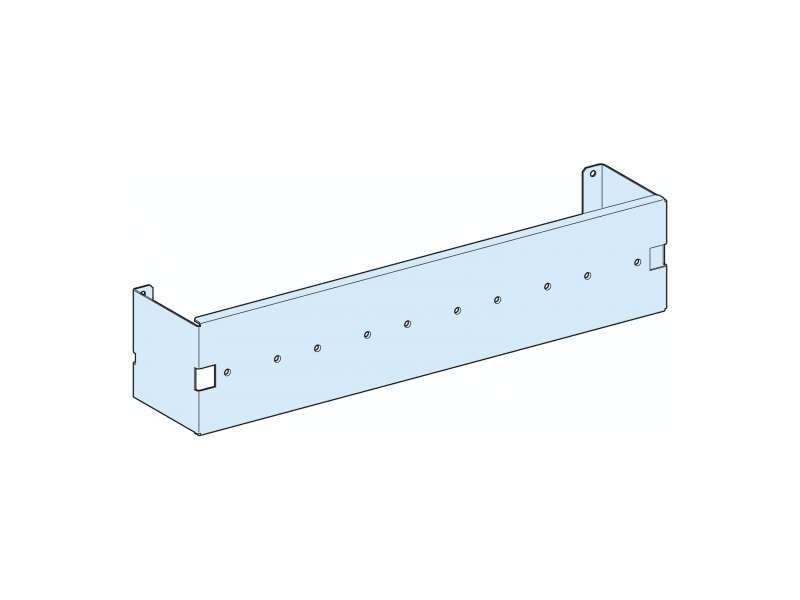

Mounting plate, PrismaSeT G, for FuPacT ISFT100/100N, vertical fixed, 6M, W600/850mm

Main
Range	PrismaSeT
Range of product	PrismaSeT G
Product or component type	Mounting plate
Accessory / separate part category	Installation accessory
Range compatibility	PrismaSeT (PrismaSeT G) enclosure
installation description	Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm
Installed device	FuPact: fixed ISFT100 - control: fuse carriers handle - vertical installation
Poles description	5 x 3P: fixed ISFT100 vertical installation
Number of vertical modules [50 mm]	7 module(s): ISFT100, direct in 600 mm Widefloor-standing enclosure 7 module(s): ISFT100, direct in 600 mm Widewall-mounted enclosure
Standards	IEC 61439-2
Product certifications	ASTA

Complementary
Material	Sheet steel
Protective treatment	Electrophoresis treatment and hot-polymerised polyester epoxy powder
Surface finish	Matt Textured
Colour	White (RAL 9003)
Width	600 mm
Height	300 mm
Product weight	0.98 kg
Functional unit	600 mm PrismaSeT G floor-standing enclosure FuPact ISFT100 fixed fuse carriers handle vertical 3P 5 direct 7 150 mm 600 mm PrismaSeT G wall-mounted enclosure FuPact ISFT100 fixed fuse carriers handle vertical 3P 5 direct 7 150 mm

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	9.8 cm
Package 1 Width	10.2 cm
Package 1 Length	47 cm
Package 1 Weight	1.1 kg
Unit Type of Package 2	CAR
Number of Units in Package 2	5
Package 2 Height	19.7 cm
Package 2 Width	39 cm
Package 2 Length	58 cm
Package 2 Weight	5.56 kg
Unit Type of Package 3	P12
Number of Units in Package 3	20
Package 3 Height	36 cm
Package 3 Width	80 cm
Package 3 Length	120 cm
Package 3 Weight	33.5 kg
