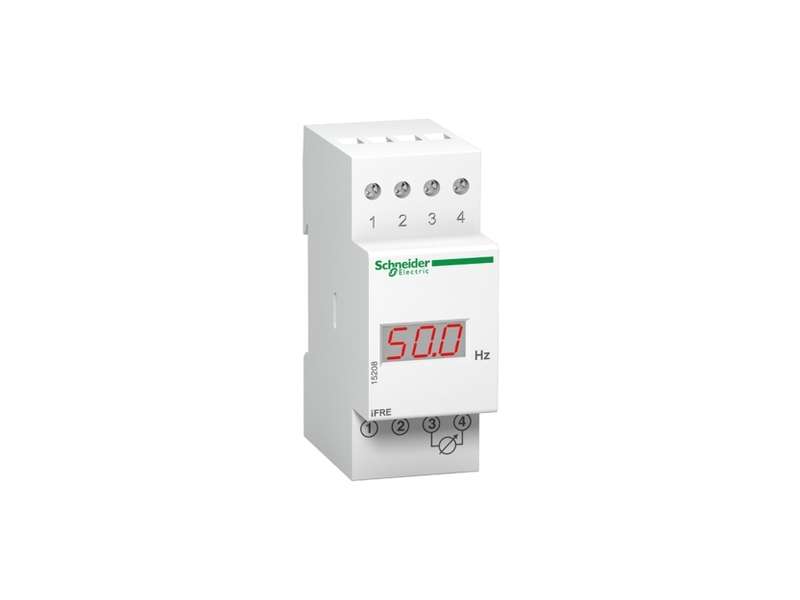

Schneider Electric Modularni uređaj za merenje frekvencije - 20 Hz do 100 Hz iFRE - 230V;15208

modular frequency meter 20 to 100 Hz iFRE - 230V...

Brand: Schneider Electric
Product Code: 15208
Availability: Check availability

VAT-exclusive price: 16.039,00

VAT-inclusive price: 19.246,80

Qnt:

Description
Specification

modular frequency meter 20 to 100 Hz iFRE - 230V

Main
range	Acti 9
device short name	IFRE
product or component type	Frequency meter
range compatibility	Prisma P door Prisma G door
type of measurement	Frequency
display type	LED 3 digit(s)
maximum value measured	99.9 Hz

Complementary
frequency measurement range	20…100 Hz
full scale display	99,9
measurement accuracy	0.5 % +/- 1 digit
[Us] rated supply voltage	230 V AC at 50/60 Hz
power consumption in VA	5 VA
mounting mode	Fixed
mounting support	DIN rail

Environment
standards	IEC 65081-2 EN 65081-2 EN 65081-1 IEC 65081-1
IP degree of protection	Terminal level: IP20 Front face: IP40
width	36 mm
height	87 mm
depth	65 mm

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	182.0 g
Package 1 Height	4.2 cm
Package 1 width	8 cm
Package 1 Length	9.5 cm
Unit Type of Package 2	S02
Number of Units in Package 2	36
Package 2 Weight	7.007 kg
Package 2 Height	15 cm
Package 2 width	30 cm
Package 2 Length	40 cm
