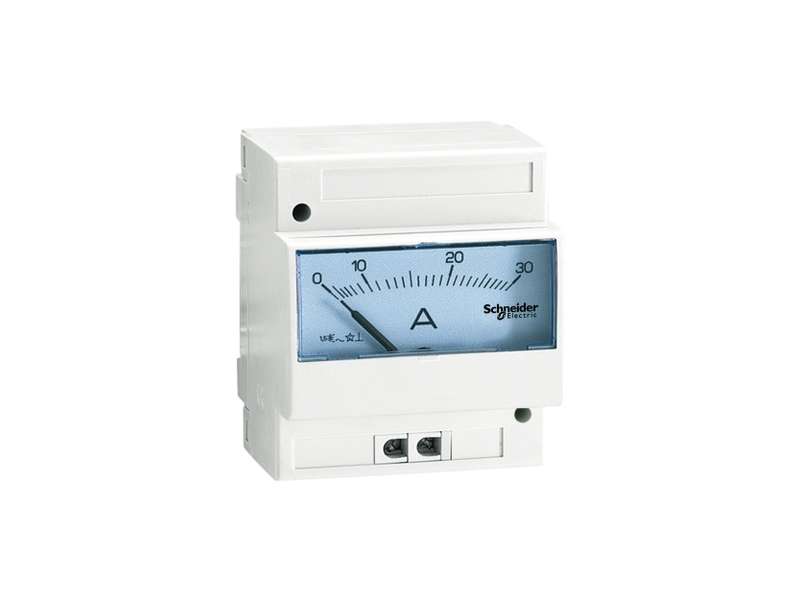

Schneider Electric Modularni analogni ampermetar bez skale iAMP - 0..2000 A;16030

modular analog ammeter without scale iAMP - 0..2000 A...

Brand: Schneider Electric
Product Code: 16030
Availability: Check availability

VAT-exclusive price: 8.315,00

VAT-inclusive price: 9.978,00

Qnt:

Description
Specification

modular analog ammeter without scale iAMP - 0..2000 A

Main
range	Acti 9
device short name	IAMP
product or component type	Ammeter
range compatibility	Prisma P door Prisma G door
technology type	Ferromagnetic
scale type	Pseudo-linear scale over 90°
mounting support	DIN rail

Complementary
type of measurement	Current
accuracy class	Class 1.5
power consumption in VA	1.1 VA
power consumption in VA	1.1 VA
overload withstand	1.2 In, permanently 10 In, 5 s
9 mm pitches	8
width	70 mm
height	83 mm
depth	66 mm
temperature drift	+/- 0.03 %/°C
connections - terminals	Tunnel type terminalrigid 1.5…6 mm²

Environment
standards	IEC 60051-1 IEC 61000-4 IEC 61010-1
ambient air temperature for operation	-25…50 °C
reference temperature	23 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	154.0 g
Package 1 Height	7.5 cm
Package 1 width	7.7 cm
Package 1 Length	9.3 cm
Unit Type of Package 2	S03
Number of Units in Package 2	45
Package 2 Weight	7.36 kg
Package 2 Height	30 cm
Package 2 width	30 cm
Package 2 Length	40 cm

Contractual warranty
Warranty	18 months
