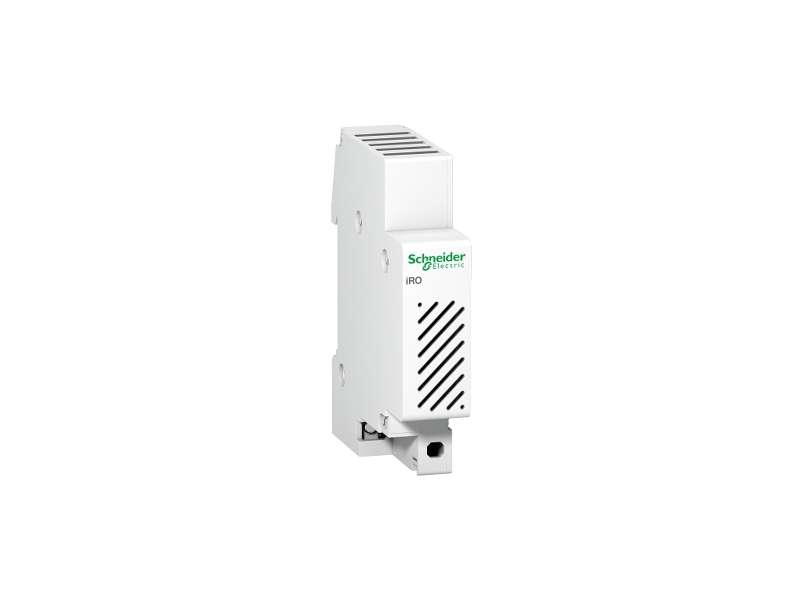

Schneider Electric Modularna zujalica iRO - 8..12 V 50/60Hz - 70 dB; A9A15323
modular buzzer iRO - 8..12 V 50/60Hz - 70 dB...
VAT-exclusive price: 1.171,00 |
VAT-inclusive price: 1.405,20 |
modular buzzer iRO - 8..12 V 50/60Hz - 70 dB
| range of product | Acti9 |
|---|---|
| Product name | Acti9 iRO |
| Product or component type | Buzzer |
| device short name | IRO |
| [Us] rated supply voltage | 8...12 V AC at 50/60 Hz |
|---|---|
| Power consumption in VA | 3.6 VA |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height | 81 mm |
| Width | 18 mm |
| Depth | 72 mm |
| Net weight | 64 g |
| Colour | White |
| auxiliary connection terminal |
Tunnel type terminalsrigid 4 mm² Tunnel type terminalsflexible 4 mm² Tunnel type terminalsflexible with ferrule 4 mm² |
| wire stripping length | 12 mm for bottom connection |
| tightening torque | 1.3 N.m |
| Noise level | 70 dB |
|---|---|
| Type of sound | Buzzer |
| IP degree of protection |
IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529 |
| Ambient air temperature for operation | -10…40 °C |
| Ambient air temperature for storage | -25…60 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.8 cm |
| Package 1 Width | 6.6 cm |
| Package 1 Length | 8.5 cm |
| Package 1 Weight | 55.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 8.0 cm |
| Package 2 Width | 10.0 cm |
| Package 2 Length | 22.7 cm |
| Package 2 Weight | 715.0 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 144 |
| Package 3 Height | 30.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 9.104 kg |
| Warranty | 18 months |
|---|
| range of product | Acti9 |
|---|---|
| Product name | Acti9 iRO |
| Product or component type | Buzzer |
| device short name | IRO |
| [Us] rated supply voltage | 8...12 V AC at 50/60 Hz |
|---|---|
| Power consumption in VA | 3.6 VA |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height | 81 mm |
| Width | 18 mm |
| Depth | 72 mm |
| Net weight | 64 g |
| Colour | White |
| auxiliary connection terminal |
Tunnel type terminalsrigid 4 mm² Tunnel type terminalsflexible 4 mm² Tunnel type terminalsflexible with ferrule 4 mm² |
| wire stripping length | 12 mm for bottom connection |
| tightening torque | 1.3 N.m |
| Noise level | 70 dB |
|---|---|
| Type of sound | Buzzer |
| IP degree of protection |
IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529 |
| Ambient air temperature for operation | -10…40 °C |
| Ambient air temperature for storage | -25…60 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.8 cm |
| Package 1 Width | 6.6 cm |
| Package 1 Length | 8.5 cm |
| Package 1 Weight | 55.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 8.0 cm |
| Package 2 Width | 10.0 cm |
| Package 2 Length | 22.7 cm |
| Package 2 Weight | 715.0 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 144 |
| Package 3 Height | 30.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 9.104 kg |
| Warranty | 18 months |
|---|
