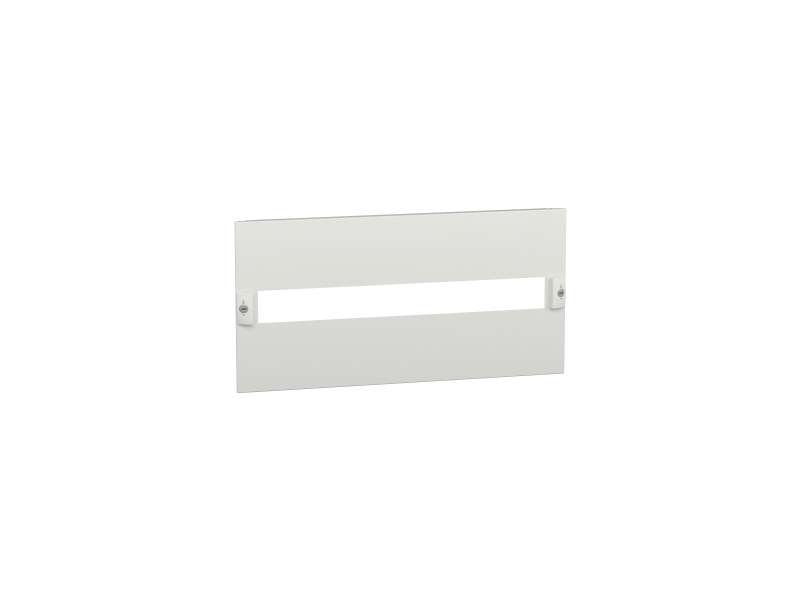

Front plate, PrismaSeT P and G, for modular device, 5M, W600/W650
| Range | PrismaSeT |
|---|---|
| Range of product |
PrismaSeT G PrismaSeT P |
| Product or component type | Front plate |
| Accessory / separate part category | Installation accessory |
| Range compatibility |
PrismaSeT (PrismaSeT G) enclosure PrismaSeT (PrismaSeT P) cubicle PrismaSeT (PrismaSeT Pack 160) enclosure |
| Type of front plate |
Modular Cut-out |
| Installed device |
ComPact: fixed INS100 - control: direct front rotary handle - vertical installation ComPact: fixed INS125 - control: direct front rotary handle - vertical installation ComPact: fixed INS160 - control: direct front rotary handle - vertical installation Acti 9: fixed C120 without earth leakage protection - control: toggle TeSys: fixed GV3 Acti 9: fixed iC120 without earth leakage protection - control: toggle Multi9: fixed NG125 without earth leakage protection - control: toggle Multi9: fixed NG125 NA - control: toggle ComPact: fixed NG160 without earth leakage protection - control: toggle ComPact: fixed NG160 NA without earth leakage protection - control: toggle TeSys: fixed TeSys U - horizontal installation Acti 9: fixed C120 with earth leakage protection - control: toggle Acti 9: fixed iC120 with earth leakage protection - control: toggle Multi9: fixed NG125 with earth leakage protection - control: toggle ComPact: fixed NG160 with earth leakage protection - control: toggle ComPact: fixed NSXm without earth leakage protection - control: toggle - vertical installation ComPact: fixed NSXm with earth leakage protection - control: toggle - vertical installation |
| Poles description |
1 x 3P: modular rail support: INS100 vertical installation 1 x 4P: modular rail support: INS100 vertical installation 1 x 3P: modular rail support: INS125 vertical installation 1 x 4P: modular rail support: INS125 vertical installation 1 x 3P: modular rail support: INS160 vertical installation 1 x 4P: modular rail support: INS160 vertical installation 1 x 3P: modular rail support: C120 1 x 4P: modular rail support: C120 7 x 3P: modular rail support: GV3 1 x 3P: modular rail support: iC120 1 x 4P: modular rail support: iC120 1 x 3P: modular rail support: NG125 1 x 4P: modular rail support: NG125 1 x 3P: modular rail support: NG125 NA 1 x 4P: modular rail support: NG125 NA 1 x 3P: modular rail support: NG160 1 x 4P: modular rail support: NG160 1 x 3P: modular rail support: NG160 NA 1 x 4P: modular rail support: NG160 NA 9 x 3P: modular rail support: TeSys U horizontal installation 1 x 3P or 4P: modular rail support: NSXm vertical installation 5 x 3P: mounting plate support: NSXm vertical installation 4 x 4P: mounting plate support: NSXm vertical installation 4 x 3P or 4P: mounting plate support: NSXm vertical installation |
| Operating position | Vertical |
| Enclosure/cubicle description |
Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm Cubicle - width 650 mm depth 400 mm Pack enclosure - width 555 mm |
|---|---|
| Connection position | Direct connection |
| 9 mm pitches | 48 |
| Number of 18 mm modules per row | 24 |
| Number of vertical modules [50 mm] | 5 |
| Standards |
IEC 61439-2 IEC 61439-1 |
| Product certifications | ASTA |
| Material | Steel |
| Surface finish |
Textured Matt |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Colour | White (RAL 9003) |
| Height | 250 mm |
| Width | 500 mm |
| Net weight | 0.92 kg |
| Quantity per set | Set of 1 |
| functional unit |
600 mm PrismaSeT G floor-standing enclosure Acti 9 C120 without fixed toggle 3P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure Acti 9 C120 without fixed toggle 3P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure Acti 9 C120 without fixed toggle 4P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure Acti 9 C120 without fixed toggle 4P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle Acti 9 C120 without fixed toggle 3P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle Acti 9 C120 without fixed toggle 4P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure TeSys GV3 fixed 3P 7 direct 5 600 mm PrismaSeT G wall-mounted enclosure TeSys GV3 fixed 3P 7 direct 5 650 mm 400 mm PrismaSeT P cubicle TeSys GV3 fixed 3P 7 direct 5 600 mm PrismaSeT G floor-standing enclosure Acti 9 iC120 without fixed toggle 3P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure Acti 9 iC120 without fixed toggle 3P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure Acti 9 iC120 without fixed toggle 4P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure Acti 9 iC120 without fixed toggle 4P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle Acti 9 iC120 without fixed toggle 3P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle Acti 9 iC120 without fixed toggle 4P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle ComPact INS100 fixed direct front rotary handle vertical 3P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle ComPact INS100 fixed direct front rotary handle vertical 4P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle ComPact INS125 fixed direct front rotary handle vertical 3P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle ComPact INS125 fixed direct front rotary handle vertical 4P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle ComPact INS160 fixed direct front rotary handle vertical 3P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle ComPact INS160 fixed direct front rotary handle vertical 4P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure Multi9 NG125 without fixed toggle 3P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure Multi9 NG125 without fixed toggle 3P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure Multi9 NG125 without fixed toggle 4P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure Multi9 NG125 without fixed toggle 4P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle Multi9 NG125 without fixed toggle 3P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle Multi9 NG125 without fixed toggle 4P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure Multi9 NG125 NA fixed toggle 3P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure Multi9 NG125 NA fixed toggle 3P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure Multi9 NG125 NA fixed toggle 4P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure Multi9 NG125 NA fixed toggle 4P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle Multi9 NG125 NA fixed toggle 3P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle Multi9 NG125 NA fixed toggle 4P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure ComPact NG160 without fixed toggle 3P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure ComPact NG160 without fixed toggle 3P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure ComPact NG160 without fixed toggle 4P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure ComPact NG160 without fixed toggle 4P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle ComPact NG160 without fixed toggle 3P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle ComPact NG160 without fixed toggle 4P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure ComPact NG160 NA without fixed toggle 3P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure ComPact NG160 NA without fixed toggle 3P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure ComPact NG160 NA without fixed toggle 4P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure ComPact NG160 NA without fixed toggle 4P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle ComPact NG160 NA without fixed toggle 3P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle ComPact NG160 NA without fixed toggle 4P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle TeSys TeSys U fixed horizontal 3P 9 direct 5 600 mm PrismaSeT G floor-standing enclosure Acti 9 C120 with fixed toggle 3P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure Acti 9 C120 with fixed toggle 3P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure Acti 9 C120 with fixed toggle 4P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure Acti 9 C120 with fixed toggle 4P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle Acti 9 C120 with fixed toggle 3P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle Acti 9 C120 with fixed toggle 4P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure Acti 9 iC120 with fixed toggle 3P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure Acti 9 iC120 with fixed toggle 3P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure Acti 9 iC120 with fixed toggle 4P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure Acti 9 iC120 with fixed toggle 4P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle Acti 9 iC120 with fixed toggle 3P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle Acti 9 iC120 with fixed toggle 4P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure Multi9 NG125 with fixed toggle 3P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure Multi9 NG125 with fixed toggle 3P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure Multi9 NG125 with fixed toggle 4P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure Multi9 NG125 with fixed toggle 4P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle Multi9 NG125 with fixed toggle 3P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle Multi9 NG125 with fixed toggle 4P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure ComPact NG160 with fixed toggle 3P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure ComPact NG160 with fixed toggle 3P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure ComPact NG160 with fixed toggle 4P 1 direct 5 600 mm PrismaSeT G wall-mounted enclosure ComPact NG160 with fixed toggle 4P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle ComPact NG160 with fixed toggle 3P 1 direct 5 650 mm 400 mm PrismaSeT P cubicle ComPact NG160 with fixed toggle 4P 1 direct 5 600 mm PrismaSeT G floor-standing enclosure ComPact NSXm without fixed toggle vertical 3P or 4P 1 direct 7 600 mm PrismaSeT G wall-mounted enclosure ComPact NSXm without fixed toggle vertical 3P or 4P 1 direct 7 600 mm PrismaSeT G floor-standing enclosure ComPact NSXm without fixed toggle vertical 3P or 4P 1 connection block 7 600 mm PrismaSeT G wall-mounted enclosure ComPact NSXm without fixed toggle vertical 3P or 4P 1 connection block 7 650 mm 400 mm PrismaSeT P cubicle ComPact NSXm without fixed toggle vertical 3P or 4P 1 direct 8 650 mm 400 mm PrismaSeT P cubicle ComPact NSXm without fixed toggle vertical 3P 5 direct 8 650 mm 400 mm PrismaSeT P cubicle ComPact NSXm without fixed toggle vertical 4P 4 direct 8 600 mm PrismaSeT G floor-standing enclosure ComPact NSXm with fixed toggle vertical 3P or 4P 1 direct 7 600 mm PrismaSeT G wall-mounted enclosure ComPact NSXm with fixed toggle vertical 3P or 4P 1 direct 7 600 mm PrismaSeT G floor-standing enclosure ComPact NSXm with fixed toggle vertical 3P or 4P 1 connection block 7 600 mm PrismaSeT G wall-mounted enclosure ComPact NSXm with fixed toggle vertical 3P or 4P 1 connection block 7 650 mm 400 mm PrismaSeT P cubicle ComPact NSXm with fixed toggle vertical 3P or 4P 1 direct 8 650 mm 400 mm PrismaSeT P cubicle ComPact NSXm with fixed toggle vertical 3P or 4P 4 direct 8 555 mm Pack 160 Pack enclosure Acti 9 C120 without fixed toggle 3P 1 direct 5 555 mm Pack 160 Pack enclosure Acti 9 C120 without fixed toggle 4P 1 direct 5 555 mm Pack 160 Pack enclosure TeSys GV3 fixed 3P 7 direct 5 555 mm Pack 160 Pack enclosure Acti 9 iC120 without fixed toggle 3P 1 direct 5 555 mm Pack 160 Pack enclosure Acti 9 iC120 without fixed toggle 4P 1 direct 5 555 mm Pack 160 Pack enclosure Multi9 NG125 without fixed toggle 3P 1 direct 5 555 mm Pack 160 Pack enclosure Multi9 NG125 without fixed toggle 4P 1 direct 5 555 mm Pack 160 Pack enclosure Multi9 NG125 NA fixed toggle 3P 1 direct 5 555 mm Pack 160 Pack enclosure Multi9 NG125 NA fixed toggle 4P 1 direct 5 555 mm Pack 160 Pack enclosure ComPact NG160 without fixed toggle 3P 1 direct 5 555 mm Pack 160 Pack enclosure ComPact NG160 without fixed toggle 4P 1 direct 5 555 mm Pack 160 Pack enclosure ComPact NG160 NA without fixed toggle 3P 1 direct 5 555 mm Pack 160 Pack enclosure ComPact NG160 NA without fixed toggle 4P 1 direct 5 555 mm Pack 160 Pack enclosure ComPact NSXm without fixed toggle vertical 3P or 4P 1 direct 5 555 mm Pack 160 Pack enclosure Acti 9 C120 with fixed toggle 3P 1 direct 5 555 mm Pack 160 Pack enclosure Acti 9 C120 with fixed toggle 4P 1 direct 5 555 mm Pack 160 Pack enclosure Acti 9 iC120 with fixed toggle 3P 1 direct 5 555 mm Pack 160 Pack enclosure Acti 9 iC120 with fixed toggle 4P 1 direct 5 555 mm Pack 160 Pack enclosure Multi9 NG125 with fixed toggle 3P 1 direct 5 555 mm Pack 160 Pack enclosure Multi9 NG125 with fixed toggle 4P 1 direct 5 555 mm Pack 160 Pack enclosure ComPact NG160 with fixed toggle 3P 1 direct 5 555 mm Pack 160 Pack enclosure ComPact NG160 with fixed toggle 4P 1 direct 5 555 mm Pack 160 Pack enclosure ComPact NSXm with fixed toggle vertical 3P or 4P 1 direct 5 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.0 cm |
| Package 1 Width | 26.5 cm |
| Package 1 Length | 51.5 cm |
| Package 1 Weight | 920.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 16.5 cm |
| Package 2 Width | 27.2 cm |
| Package 2 Length | 52.0 cm |
| Package 2 Weight | 9.455 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 270 |
| Package 3 Height | 94.0 cm |
| Package 3 Width | 80.0 cm |
| Package 3 Length | 120.0 cm |
| Package 3 Weight | 267.0 kg |
