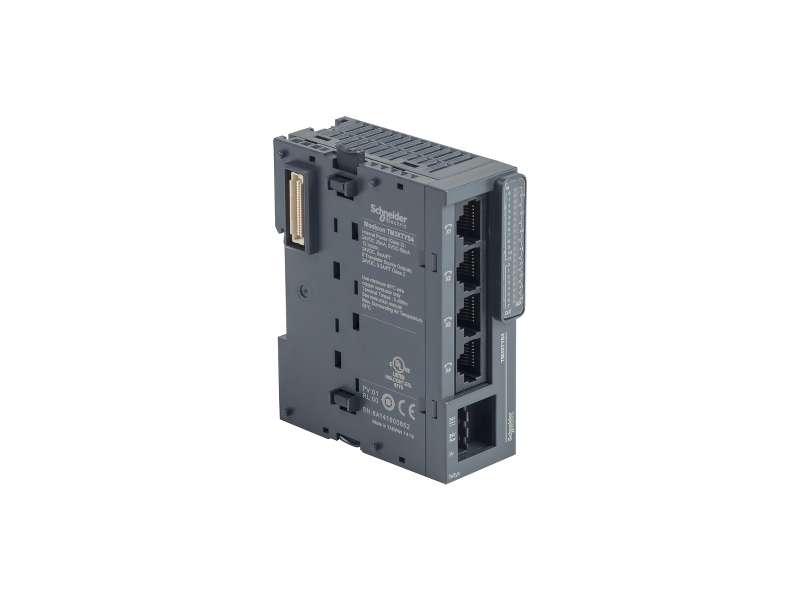

Schneider Electric Modul TM3 TeSys interfejs 4XRJ45;TM3XTYS4

Parallel interface module, Modicon TM3, 4 Tesys motors...

Brand: Schneider Electric
Product Code: TM3XTYS4
Availability: Check availability

VAT-exclusive price: 9.652,00

VAT-inclusive price: 11.582,40

Qnt:

Description
Specification

Parallel interface module, Modicon TM3, 4 Tesys motors

Main
range of product	Modicon TM3
product or component type	Parallel interface module
product specific application	TeSys U
range compatibility	Modicon M221 Modicon M251 Modicon M241 Modicon M262
[Us] rated supply voltage	24 V DC by external supply (- 15...20 %)
number of input channels	12
number of output channels	8

Complementary
current consumption	5 mA at 5 V DC via bus connector at state on 35 mA at 5 V DC via bus connector at state off 0 mA at 24 V DC via bus connector at state on 10 mA at 24 V DC via bus connector at state off 1200 mA at 24 V DC external power supply at state on
input voltage limits	19.2...28.8 V per input
input current limits	5 mA per input
response time	< 10 ms turn-on for input < 10 ms turn-off for input
output voltage	24 V DC for transistor output
maximum load current	800 mA per channel in starting mode during 100 ms 300 mA per channel in normal mode
insulation	Between the RJ45 connectors and internal logic at 500 V AC Non-insulated between RJ45 connectors
output protection type	Against overload, protection technology: current limiter
reset	Automatic reset
local signalling	3 LEDs green for input status per channel 2 LEDs green for output status per channel
electrical connection	3 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for connecting the 24 V DC power supply 4 RJ45 connectorsfor connecting the motor starters
mounting support	Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit
height	90 mm
depth	85 mm
width	30 mm
net weight	0.115 kg

Environment
product certifications	C-Tick cULus
marking	CE
resistance to electrostatic discharge	8 kV in air conforming to EN/IEC 61000-4-2 4 kV on contact conforming to EN/IEC 61000-4-2
resistance to electromagnetic fields	10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3
resistance to magnetic fields	30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8
resistance to fast transients	1 kV for input conforming to EN/IEC 61000-4-4 1 kV for output conforming to EN/IEC 61000-4-4
surge withstand	1 kV input common mode conforming to EN/IEC 61000-4-5 1 kV output common mode conforming to EN/IEC 61000-4-5
resistance to conducted disturbances	10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)
electromagnetic emission	Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011 Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011
ambient air temperature for operation	-10…35 °C vertical installation -10…55 °C horizontal installation
ambient air temperature for storage	-25…70 °C
relative humidity	10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage)
IP degree of protection	IP20 with protective cover in place
pollution degree	2
operating altitude	0...2000 m
storage altitude	0…3000 m
vibration resistance	3.5 mm at 5…8.4 Hz on DIN rail 3 gn at 8.4…150 Hz on DIN rail 3.5 mm at 5…8.4 Hz on panel 3 gn at 8.4…150 Hz on panel
shock resistance	15 gn for 11 ms

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	220.0 g
Package 1 Height	7.5 cm
Package 1 width	10.5 cm
Package 1 Length	12.5 cm
Unit Type of Package 2	S04
Number of Units in Package 2	42
Package 2 Weight	9.462 kg
Package 2 Height	30.0 cm
Package 2 width	40.0 cm
Package 2 Length	60.0 cm

Main
range of product	Modicon TM3
product or component type	Parallel interface module
product specific application	TeSys U
range compatibility	Modicon M221 Modicon M251 Modicon M241 Modicon M262
[Us] rated supply voltage	24 V DC by external supply (- 15...20 %)
number of input channels	12
number of output channels	8

Complementary
current consumption	5 mA at 5 V DC via bus connector at state on 35 mA at 5 V DC via bus connector at state off 0 mA at 24 V DC via bus connector at state on 10 mA at 24 V DC via bus connector at state off 1200 mA at 24 V DC external power supply at state on
input voltage limits	19.2...28.8 V per input
input current limits	5 mA per input
response time	< 10 ms turn-on for input < 10 ms turn-off for input
output voltage	24 V DC for transistor output
maximum load current	800 mA per channel in starting mode during 100 ms 300 mA per channel in normal mode
insulation	Between the RJ45 connectors and internal logic at 500 V AC Non-insulated between RJ45 connectors
output protection type	Against overload, protection technology: current limiter
reset	Automatic reset
local signalling	3 LEDs green for input status per channel 2 LEDs green for output status per channel
electrical connection	3 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for connecting the 24 V DC power supply 4 RJ45 connectorsfor connecting the motor starters
mounting support	Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit
height	90 mm
depth	85 mm
width	30 mm
net weight	0.115 kg

Environment
product certifications	C-Tick cULus
marking	CE
resistance to electrostatic discharge	8 kV in air conforming to EN/IEC 61000-4-2 4 kV on contact conforming to EN/IEC 61000-4-2
resistance to electromagnetic fields	10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3
resistance to magnetic fields	30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8
resistance to fast transients	1 kV for input conforming to EN/IEC 61000-4-4 1 kV for output conforming to EN/IEC 61000-4-4
surge withstand	1 kV input common mode conforming to EN/IEC 61000-4-5 1 kV output common mode conforming to EN/IEC 61000-4-5
resistance to conducted disturbances	10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6,
