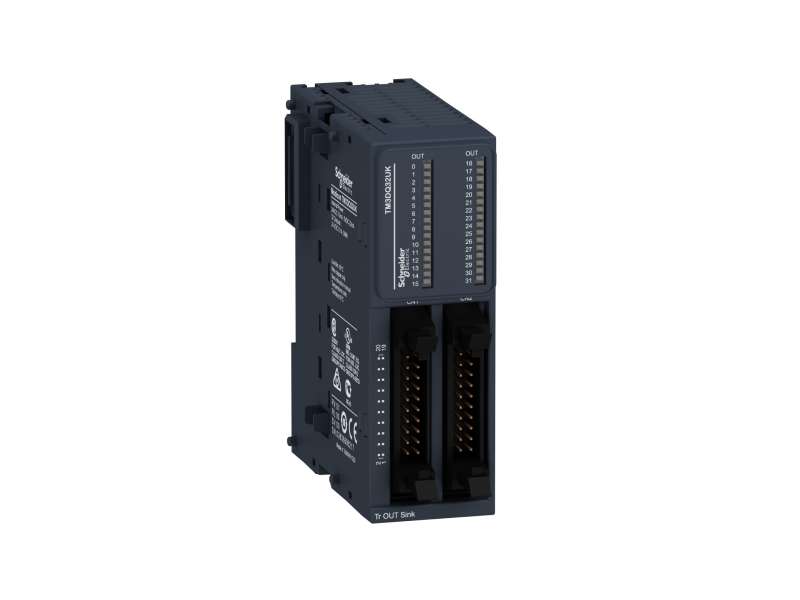

Name: Schneider Electric Modul TM3 - 32 tranzistorska izlaza NPN HE10; TM3DQ32UK
Brand: Schneider Electric
SKU: TM3DQ32UK
Price: 27568.80 RSD
Availability: OutOfStock

Schneider Electric Modul TM3 - 32 tranzistorska izlaza NPN HE10; TM3DQ32UK

Modicon TM3 - 32 outputs transistor NPN (HE10)...

Brand: Schneider Electric
Product Code: TM3DQ32UK
Availability: Check availability

VAT-exclusive price: 22.974,00

VAT-inclusive price: 27.568,80

Qnt:

Modicon TM3 - 32 outputs transistor NPN (HE10)

Main
range of product	Modicon TM3
product or component type	Discrete output module
range compatibility	Modicon M241 Modicon M251 Modicon M221 Modicon M262
discrete output type	Transistor
discrete output number	32
discrete output logic	Negative logic (sink)
discrete output voltage	24 V DC for transistor output
discrete output current	100 mA for transistor output

Complementary
discrete I/O number	32
current consumption	5 mA at 5 V DC via bus connector (at state off) 0 mA at 24 V DC via bus connector (at state off) 25 mA at 5 V DC via bus connector (at state on) 40 mA at 24 V DC via bus connector (at state on)
response time	450 µs (turn-on) 450 µs (turn-off)
maximum leakage current	0.1 mA for transistor output
maximum voltage drop	<0.4 V
maximum tungsten load	<1.2 W for transistor output
local signalling	1 LED per channel (green)output status:
electrical connection	HE-10 connectorfor outputs
maximum cable distance between devices	Unshielded cable: <5 m for transistor output
insulation	Between output and internal logic at 500 V AC Non-insulated between outputs
marking	CE
mounting support	Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit
height	90 mm
depth	81.3 mm
width	33.5 mm
net weight	0.112 kg

Environment
standards	EN/IEC 61010-2-201 EN/IEC 61131-2
product certifications	CULus C-Tick
resistance to electrostatic discharge	8 kV in air conforming to EN/IEC 61000-4-2 4 kV on contact conforming to EN/IEC 61000-4-2
resistance to electromagnetic fields	10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3
resistance to magnetic fields	30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8
resistance to fast transients	1 kV for I/O conforming to EN/IEC 61000-4-4
surge withstand	1 kV I/O common mode conforming to EN/IEC 61000-4-5 DC
resistance to conducted disturbances	10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)
electromagnetic emission	Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011 Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011
ambient air temperature for operation	-10…35 °C vertical installation -10…55 °C horizontal installation
ambient air temperature for storage	-25…70 °C
relative humidity	10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage)
IP degree of protection	IP20 with protective cover in place
pollution degree	2
operating altitude	0...2000 m
storage altitude	0…3000 m
vibration resistance	3.5 mm at 5…8.4 Hz on DIN rail 3 gn at 8.4…150 Hz on DIN rail 3.5 mm at 5…8.4 Hz on panel 3 gn at 8.4…150 Hz on panel
shock resistance	15 gn for 11 ms

Packing Units
Package 1 Weight	225.000 g
Package 1 Height	75.000 mm
Package 1 width	105.000 mm
Package 1 Length	125.000 mm

Offer Sustainability
Sustainable offer status	Green Premium product
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
PVC free	Yes
