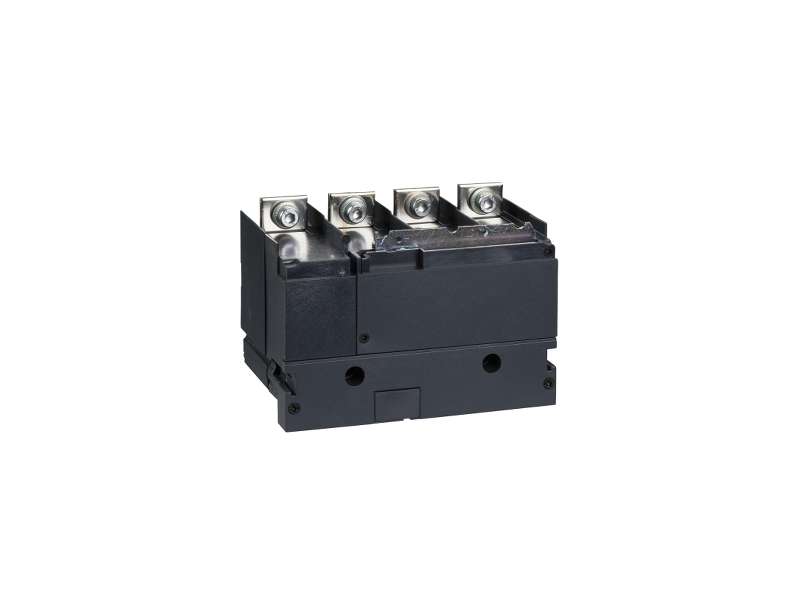

current transformer module with voltage output, ComPact NSX630, 600 A rating, 4 poles
Main
|
device short name |
CT module and voltage output |
|
product or component type |
Current transformer |
|
device application |
Control |
|
range compatibility |
ComPact NSX630
Compact INS
Compact INV |
|
poles description |
4P |
|
[In] rated current |
600 A |
|
current transformer ratio |
600/5 A |
|
power consumption in VA |
2 VA |
|
accuracy class |
Class 0.5 |
Complementary
|
[Ue] rated operational voltage |
530 V |
|
network type |
AC |
|
network frequency |
50/60 Hz |
|
auxiliary connection terminal |
Cable connector 2.5 mm² |
Environment
|
electrical shock protection class |
Class II |
|
IP degree of protection |
IP40 conforming to IEC 60529 |
|
IK degree of protection |
IK04 conforming to IEC 62262 |
Packing Units
|
Unit Type of Package 1 |
PCE |
|
Number of Units in Package 1 |
1 |
|
Package 1 Weight |
2.655 kg |
|
Package 1 Height |
14.0 cm |
|
Package 1 width |
17.0 cm |
|
Package 1 Length |
20.0 cm |
|
Unit Type of Package 2 |
S03 |
|
Number of Units in Package 2 |
2 |
|
Package 2 Weight |
5.797 kg |
|
Package 2 Height |
30.0 cm |
|
Package 2 width |
30.0 cm |
|
Package 2 Length |
40.0 cm |
Contractual warranty
|
Warranty |
18 months |
