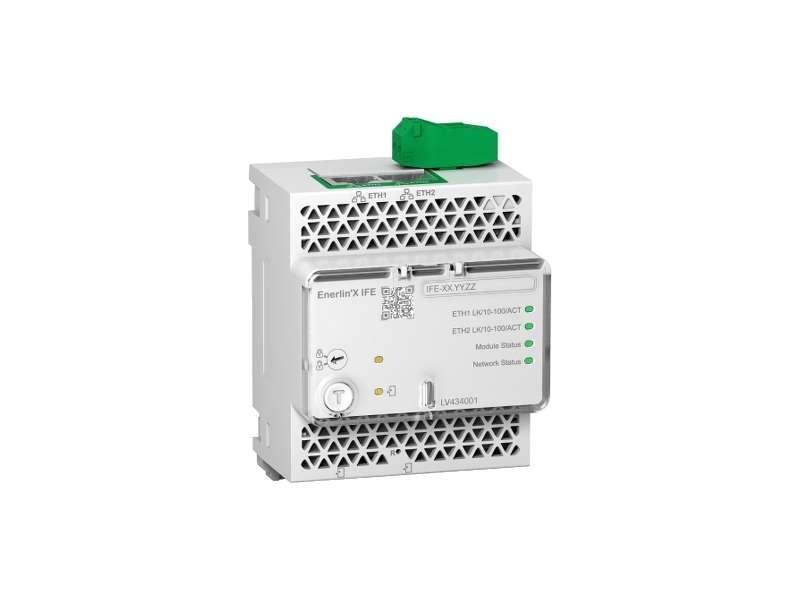

Schneider Electric Modul IFE - Modbus TCP - Ethernet IP i Modbus serijski;LV434002
IFE Ethernet switchboard server, Enerlin'X...
VAT-exclusive price: 60.674,00 |
VAT-inclusive price: 72.808,80 |
IFE Ethernet switchboard server, Enerlin'X
| device short name | IFE |
|---|---|
| product or component type | Interface module |
| range compatibility |
MasterPact MTZ MasterPact NT MasterPact NW ComPact NSX ComPact NS630b...1600 ComPact NS1600b...3200 PowerPact J PowerPact L PowerPact H PowerPact P PowerPact R |
| communication network type |
Ethernet, Modbus TCP/IP, HTTP, FTP, SMTP, NTP, SNMP10/100 Mbit/s on 2-port RJ45 Universal Logic Plug on 2-port RJ45 Modbus TCP/IP, Modbus TCP master9.6...38.4 kbauds |
|---|---|
| communication gateway | Ethernet TCP/IP to Modbus |
| web server | Embedded HTTP server |
| mounting mode | By clips |
| mounting support | 35 mm DIN rail |
| control type | By software |
| [Us] rated supply voltage | 24 V DC - 20...10 % |
| maximum supply current | 3 A |
| current consumption | 120 mA |
| connections - terminals | RJ45 connector |
| product certifications |
CE GOST cULus FCC |
| standards |
IEC 60947-6-2 UL 508 UL 60950 IEC 60950 |
| height | 105 mm |
| width | 72 mm |
| depth | 71 mm |
| net weight | 182.5 g |
| accessory / separate part category |
Spare part for Compact NS630b...1600 Spare part for Compact NS1600b...3200 |
| IP degree of protection |
Connectors: IP2x Other parts: IP3x Front panel: IP4X |
|---|---|
| relative humidity | 5…85 % |
| ambient air temperature for storage | -40…85 °C |
| ambient air temperature for operation | -20…70 °C |
| pollution degree | 3 |
| flame retardance |
V0 conforming to UL 94 V0 conforming to IEC 60947-1 V0 conforming to IEC 60695-2-11 |
| shock resistance | 1000 m/s² |
| vibration frequency | 5…8.4 Hz |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 188.0 g |
| Package 1 Height | 7.1 cm |
| Package 1 width | 7.2 cm |
| Package 1 Length | 10.5 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 192 |
| Package 2 Weight | 61.786 kg |
| Package 2 Height | 60 cm |
| Package 2 width | 80 cm |
| Package 2 Length | 70 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 24 |
| Package 3 Weight | 6.723 kg |
| Package 3 Height | 30 cm |
| Package 3 width | 30 cm |
| Package 3 Length | 40 cm |
| Warranty | 18 months |
|---|
