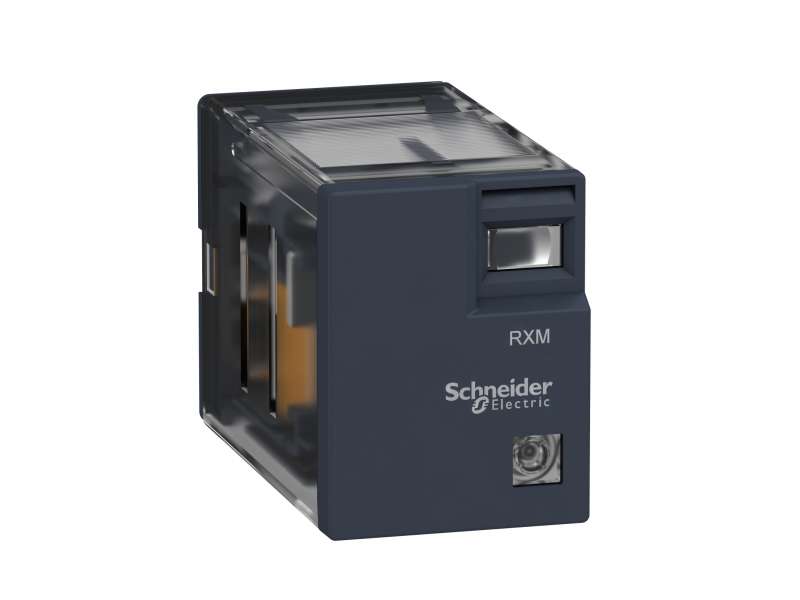

Schneider Electric Minijaturni utični relej - Zelio RXM2L - 2 C/O - 230 V AC - 5 A - without LED;RXM2LB1P7
Miniature plug-in relay - Zelio RXM2L - 2 C/O - 230 V AC - 5 A - without LED...
VAT-exclusive price: 454,00 |
VAT-inclusive price: 544,80 |
Miniature plug-in relay - Zelio RXM2L - 2 C/O - 230 V AC - 5 A - without LED
| range of product |
Harmony Electromechanical Relays
|
|
|---|---|---|
| series name |
Miniature
|
|
| product or component type |
Plug-in relay
|
|
| device short name |
RXM
|
|
| coil interference suppression |
Without
|
|
| utilisation coefficient |
20 %
|
|
| sale per indivisible quantity |
10
|
| contacts type and composition |
2 C/O
|
|
|---|---|---|
| contact operation |
Standard
|
|
| [Uc] control circuit voltage |
230 V AC 50/60 Hz
|
|
| [Ithe] conventional enclosed thermal current |
5 A at -40…55 °C
|
|
| status LED |
Without
|
|
| control type |
Without push-button
|
|
| [Ui] rated insulation voltage |
250 V conforming to IEC
|
|
| [Uimp] rated impulse withstand voltage |
3.6 kV during 1.2/50 µs conforming to IEC 61810-7
|
|
| contacts material |
Silver alloy (Ag/Ni)
|
|
| [Ie] rated operational current |
5 A (AC-1/DC-1) NO conforming to IEC
2.5 A (AC-1/DC-1) NC conforming to IEC |
|
| minimum switching current |
10 mA
|
|
| maximum switching voltage |
250 V AC
250 V DC |
|
| minimum switching voltage |
17 V
|
|
| load current |
5 A at 250 V AC
5 A at 28 V DC |
|
| maximum switching capacity |
1250 VA AC
140 W DC |
|
| minimum switching capacity |
170 mW
|
|
| operating rate |
<= 1200 cycles/hour under load
<= 18000 cycles/hour no-load |
|
| mechanical durability |
10000000 cycles
|
|
| electrical durability |
100000 cycles for resistive load
|
|
| average coil consumption in VA |
1.2 AC
|
|
| drop-out voltage threshold |
>= 0.15 Uc AC
|
|
| operating time |
20 ms between coil de-energisation and making of the Off-delay contact
20 ms between coil energisation and making of the On-delay contact |
|
| average resistance |
15000 Ohm network: AC at 20 °C +/- 15 %
|
|
| rated operational voltage limits |
184...253 V AC
|
|
| protection category |
RT I
|
|
| test levels |
Level A group mounting
|
|
| operating position |
Any position
|
|
| CAD overall width |
21 mm
|
|
| CAD overall height |
27 mm
|
|
| CAD overall depth |
46 mm
|
|
| dielectric strength |
2000 V AC between coil and contact
2000 V AC between poles 1000 V AC between contacts |
|
| safety reliability data |
B10d = 100000
|
| standards |
CE
EN/IEC 61810-1 (iss. 2) |
|
|---|---|---|
| ambient air temperature for storage |
-40…85 °C
|
|
| ambient air temperature for operation |
-40…55 °C
|
|
| vibration resistance |
3 gn, amplitude = +/- 1 mm (f = 10…50 Hz)operating conforming to EN/IEC 60068-2-6
6 gn, amplitude = +/- 1 mm (f = 10…50 Hz)not operating conforming to EN/IEC 60068-2-6 |
|
| IP degree of protection |
IP40 conforming to EN/IEC 60529
|
-
Zelio Electromechanical Relay RXM2LB1P7
