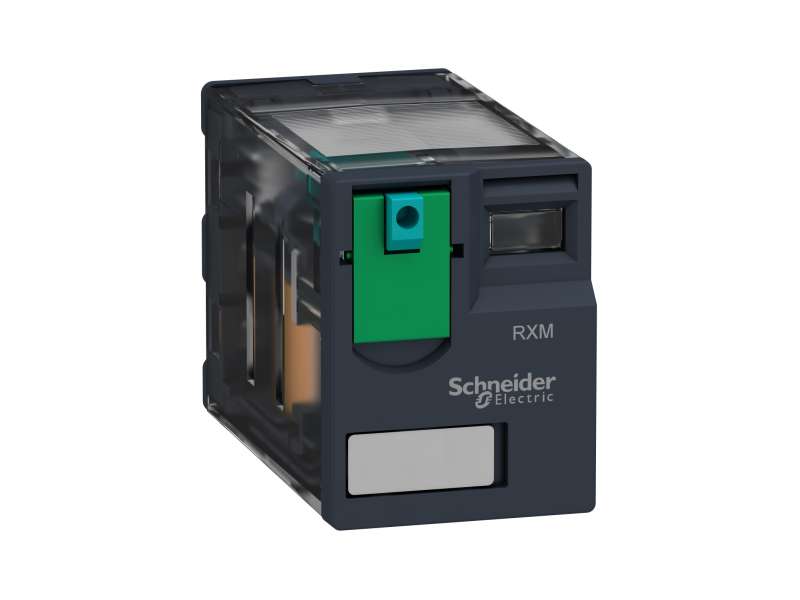

Schneider Electric Minijaturni utični relej - Zelio RXM 3 C/O 110 V DC 10 A; RXM3AB1FD
Miniature plug in relay, Harmony, 10A, 3CO, lockable test button, 110V DC; RXM3AB1FD...
VAT-exclusive price: 1.049,00 |
VAT-inclusive price: 1.258,80 |
Miniature plug in relay, Harmony, 10A, 3CO, lockable test button, 110V DC; RXM3AB1FD
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Series name | Miniature |
| Product or component type | Plug-in relay |
| Device short name | RXM |
| Contacts type and composition | 3 C/O |
| [Uc] control circuit voltage | 110 V DC |
| Status LED | Without |
| Control type | Lockable test button |
| utilisation coefficient | 20 % |
| Shape of pin | Flat |
|---|---|
| [Ui] rated insulation voltage |
250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs |
| Contacts material | AgNi |
| [Ie] rated operational current |
10 A at 28 V (DC) NO conforming to IEC 10 A at 250 V (AC) NO conforming to IEC 5 A at 28 V (DC) NC conforming to IEC 5 A at 250 V (AC) NC conforming to IEC 10 A at 30 V (DC) conforming to UL 10 A at 277 V (AC) conforming to UL |
| Continuous output current | 6.7 A |
| Maximum switching voltage | 250 V conforming to IEC |
| resistive rated load |
10 A at 250 V AC 10 A at 28 V DC |
| Maximum switching capacity | 2500 VA/280 W |
| Minimum switching capacity | 170 mW at 10 mA, 17 V |
| Operating rate |
<= 1200 cycles/hour under load <= 18000 cycles/hour no-load |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles for resistive load |
| average coil consumption | 0.9 W |
| Drop-out voltage threshold | >= 0.1 Uc |
| operate time | 20 ms |
| release time | 20 ms |
| average coil resistance | 13440 Ohm at 20 °C +/- 10 % |
| Rated operational voltage limits | 88...121 V DC |
| Safety reliability data | B10d = 100000 |
| Protection category | RT I |
| Test levels | Level A group mounting |
| operating position | Any position |
| CAD overall height | 82.8 mm |
| CAD overall depth | 80.35 mm |
| Net weight | 0.037 kg |
| device presentation | Complete product |
| Dielectric strength |
1300 V AC between contacts with micro disconnection 2000 V AC between coil and contact 2000 V AC between poles |
|---|---|
| Product certifications |
Lloyd's UL CE CSA GOST |
| Standards |
UL 508 EN/IEC 61810-1 CSA C22.2 No 14 |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| Vibration resistance |
3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating |
| IP degree of protection | IP40 conforming to EN/IEC 60529 |
| Shock resistance |
10 gn for in operation 30 gn for not operating |
| Pollution degree | 2 |
