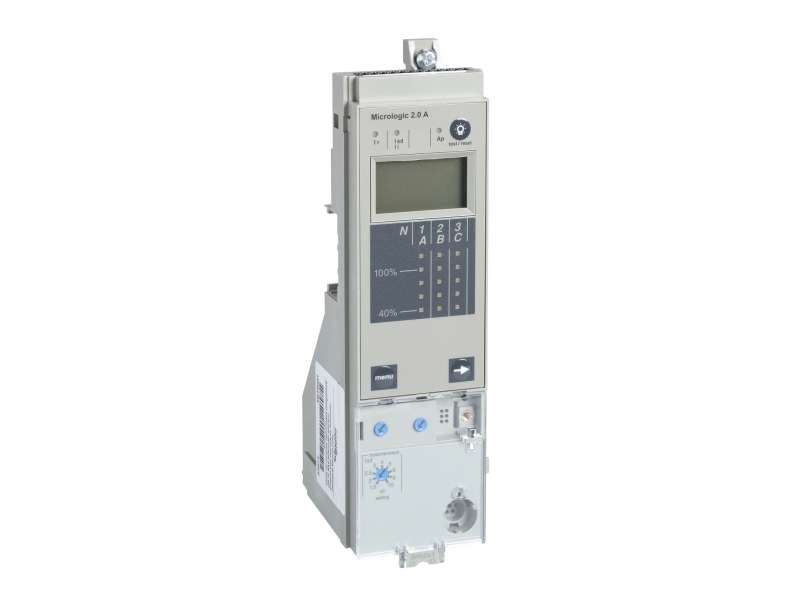

Schneider Electric Micrologic 2.0 A zaštitna jedinica - LI - za NS 630b..1600 fiksni/NS 1600b..3200; 33505
trip unit MicroLogic 2.0 A, ComPact NS630b to NS3200 fixed, basic protections...
Price on request
trip unit MicroLogic 2.0 A, ComPact NS630b to NS3200 fixed, basic protections
| range |
ComPact
|
|
|---|---|---|
| range of product |
ComPact NS1600b...3200
ComPact NS630b...1600 |
|
| product or component type |
Trip unit
|
|
| trip unit name |
Micrologic 2.0 A
|
|
| trip unit technology |
Electronic
|
|
| range compatibility |
ComPact NS1600b...3200
ComPact NS630b...1600 |
|
| device application |
Distribution
|
|
| Number of poles |
4P
3P |
|
| protected poles description |
3t + N/2
3t 4t |
|
| trip unit protection functions |
Basic protection
|
|
| protection type |
for overload protection (long time)
for instantaneous short-circuit protection |
|
| Trip unit rating |
630 A at 50 °C
800 A at 50 °C 1000 A at 50 °C 1250 A at 50 °C 1600 A at 50 °C 2000 A at 50 °C 2500 A at 50 °C 3200 A at 50 °C |
|
| network type |
AC
|
|
| network frequency |
50/60 Hz
|
|
| Circuit breaker mounting mode |
Fixed
|
| Long-time pick-up adjustment type Ir (thermal protection) |
Adjustable 9 settings
|
|
|---|---|---|
| [Ir] long-time protection pick-up adjustment range |
0.4...1 x In
|
|
| Long-time protection delay adjustment type tr |
Adjustable 9 settings
|
|
| [tr] long-time protection delay adjustment range |
0.7…16.6 s at 7.2 x Ir
0.7…24 s at 6 x Ir 12.5…600 s at 1.5 x Ir |
|
| thermal memory |
20 mn
|
|
| Instantaneous protection pick-up adjustment type Ii |
Adjustable 9 settings
|
|
| [Ii] instantaneous protection pick-up adjustment range |
1.5...10 x Ir
|
|
| earth-leakage protection |
Without
|
|
| zone selective interlocking ZSI |
With
|
|
| local signalling |
3 LEDs (red) for electrical fault
1 LED (red) for internal error |
|
| display type |
Digital display
|
|
| type of measurement |
Ammeter
|
|
| communication of data |
Measurement readout
Protection and alarm settings |
| ambient air temperature for operation |
-25…70 °C
|
|
|---|---|---|
| ambient air temperature for storage |
-40…85 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
265 g
|
|
| Package 1 Height |
6.8 cm
|
|
| Package 1 width |
8 cm
|
|
| Package 1 Length |
21.5 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure | ||
| PVC free |
Yes
|
| Warranty |
18 months
|
|---|
-
ComPact NS 33505
