Schneider Electric Metalna ind. kutija puna vrata V200xŠ600xD120 IP66 IK10 RAL 7035 ; NSYSBM206012
Metal industrial box plain door H200xW600xD120 IP66 IK10 RAL 7035...
VAT-exclusive price: 11.204,00 |
VAT-inclusive price: 13.444,80 |

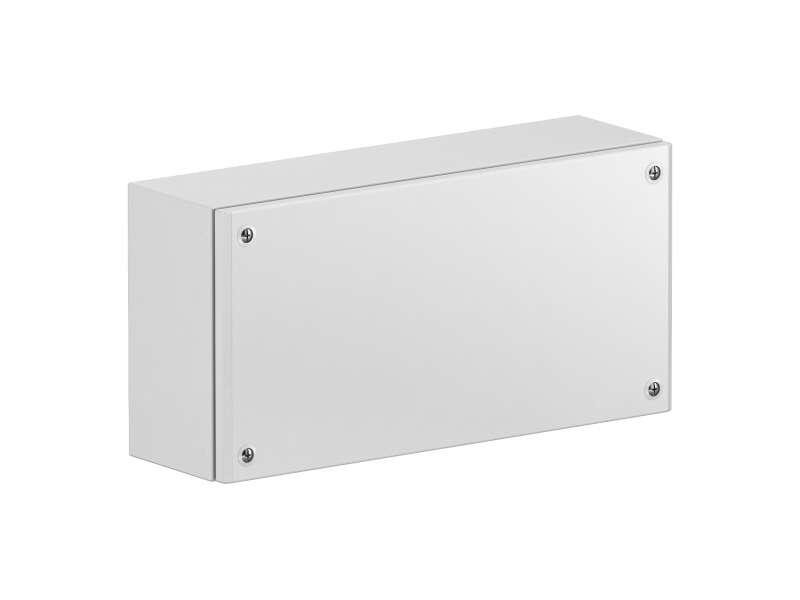

Metal industrial box plain door H200xW600xD120 IP66 IK10 RAL 7035
| range |
Spacial
|
|
|---|---|---|
| product name |
Spacial SBM
|
|
| device application |
Multi-purpose
|
|
| Category |
Industrial box
|
|
| device short name |
SBM
|
|
| enclosure type |
Flat face box
|
|
| enclosure nominal height |
200 mm
|
|
| enclosure nominal width |
600 mm
|
|
| enclosure nominal depth |
120 mm
|
|
| enclosure mounting |
Wall mounted
|
|
| device composition |
1 cover
1 body 6 cover screw |
|
| body type |
Single piece body folded and welded
|
|
| type of front cover |
Plain door
|
|
| cover fixing |
Half turn metal screw
|
|
| lock type |
Captive screw PZ2 outside sealed area
|
|
| removable parts |
Cover by captive screws
|
| material |
Sheet steel
|
|
|---|---|---|
| surface finish |
Polyester powder
|
|
| colour |
Grey (RAL 7035)
|
|
| standards |
IEC 62208
|
|
| product certifications |
BV
DNV UL GL LR |
|
| IP degree of protection |
IP66 conforming to IEC 60529
|
|
| IK degree of protection |
IK10 conforming to IEC 62262
|
|
| ambient air temperature for storage |
-35…60 °C
|
|
| Operating temperature |
-35…80 °C
|
|
| net weight |
5.108 kg
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
5.108 kg
|
|
| Package 1 Height |
63 cm
|
|
| Package 1 width |
23 cm
|
|
| Package 1 Length |
14.5 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure |
| Warranty |
18 months
|
|---|
-
Spacial SBM NSYSBM206012
