Schneider Electric Membranska kablovska uvodnica 25 otvora Ø 5-26mm Prisma G IP30 i IP55; LVS08872

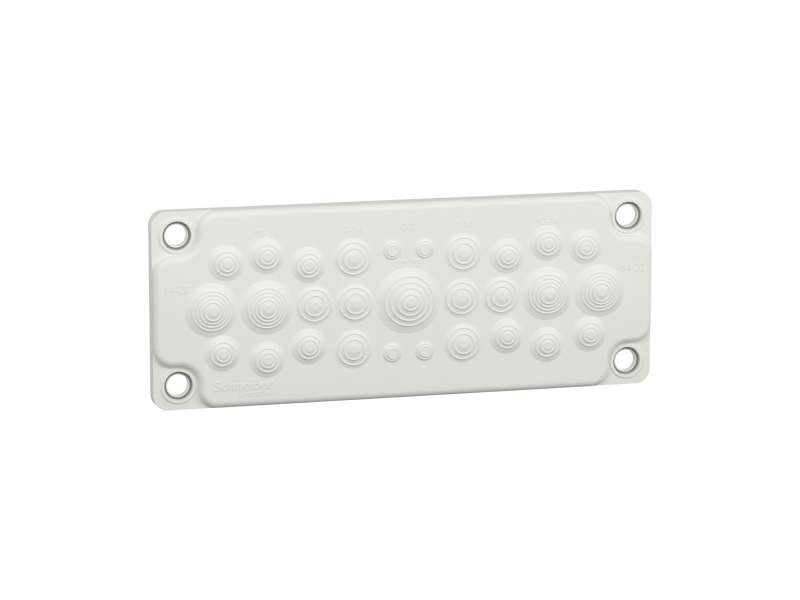

Gland plate, PrismaSeT G, membrane type, 29 entries with dia 5 to 26mm, Insulated, IP55, white, RAL 9003...
VAT-exclusive price: 1.953,00 |
VAT-inclusive price: 2.343,60 |
Gland plate, PrismaSeT G, membrane type, 29 entries with dia 5 to 26mm, Insulated, IP55, white, RAL 9003
| Range of product | PrismaSeT G |
|---|---|
| Range | PrismaSeT |
| Range compatibility | PrismaSeT (PrismaSeT G) gland plate |
| Product or component type | Gland plate |
| Accessory / separate part category | Enclosure accessory |
| Product compatibility |
IP43 enclosure IP31 enclosure IP55 enclosure IP30 enclosure |
| Enclosure/cubicle description |
Wall-mounted enclosure - width 600 mm Floor-standing enclosure - width 600 mm Wall-mounted duct - width 300 mm Floor-standing duct - width 300 mm |
|---|---|
| Type of gland plate | Membrane |
| Material | Insulated material |
| Cable entry number |
4 diameter: 5…7 mm 12 diameter: 10…14 mm 4 diameter: 14…20 mm 1 diameter: 20…26 mm 4 diameter: 8…14 mm 4 diameter: 7…14 mm |
| Quantity per set | Set of 1 |
| Depth | 180 mm |
| Net weight | 0.28 kg |
| Colour | White (RAL 9003) |
| IP degree of protection | IP55 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.5 cm |
| Package 1 Width | 8.4 cm |
| Package 1 Length | 21.7 cm |
| Package 1 Weight | 278.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 5.802 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 44.0 cm |
| Package 3 Width | 80.0 cm |
| Package 3 Length | 120.0 cm |
| Package 3 Weight | 81.5 kg |
-
PrismaSeT G LVS08872
