Schneider Electric Membr. kabl. uvodnica 35 otvora prečnika 5-32mm za 08871/08875/08876 G IP30+IP55; LVS08896
Gland plate, PrismaSeT G, membrane type, 35 entries with dia 5 to 32mm, Insulated, IP30 to IP55, white, RAL 9003...
VAT-exclusive price: 2.255,00 |
VAT-inclusive price: 2.706,00 |

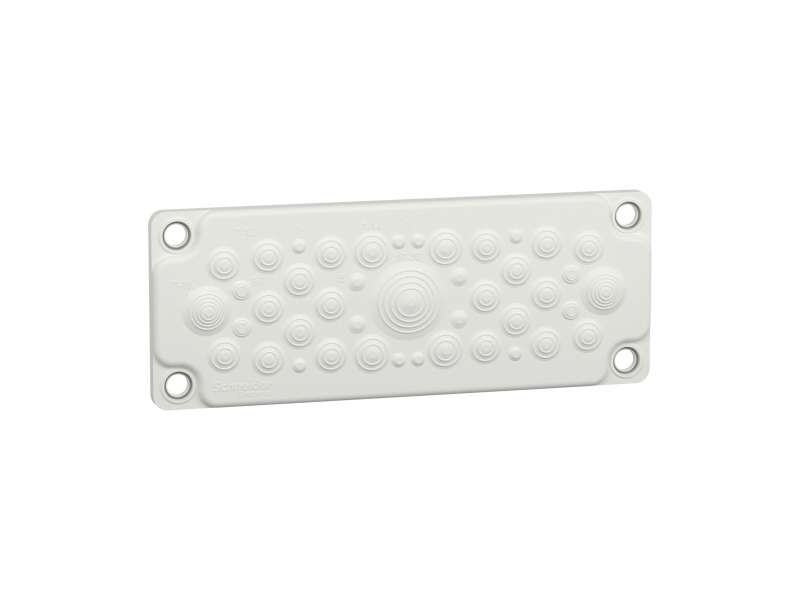

Gland plate, PrismaSeT G, membrane type, 35 entries with dia 5 to 32mm, Insulated, IP30 to IP55, white, RAL 9003
| Range of product | PrismaSeT G |
|---|---|
| Range | PrismaSeT |
| Range compatibility | PrismaSeT (PrismaSeT G) enclosure |
| Product or component type | Gland plate |
| Accessory / separate part category | Enclosure accessory |
| Product compatibility |
IP30 enclosure IP31 enclosure IP55 enclosure IP43 enclosure |
| Enclosure/cubicle description |
Wall-mounted enclosure - width 600 mm Floor-standing enclosure - width 600 mm Wall-mounted duct - width 300 mm Floor-standing duct - width 300 mm |
|---|---|
| Type of gland plate | Membrane |
| Mounting location |
Top Bottom |
| Material | Insulated material |
| Cable entry number |
4 diameter: 7…14 mm 8 diameter: 3 mm 1 diameter: 17…30 mm 4 diameter: 3…7 mm 4 diameter: 5 mm 10 diameter: 7…12 mm 10 diameter: 7…10 mm 2 diameter: 7…18 mm |
| Quantity per set | Set of 1 |
| Depth | 180 mm |
| Net weight | 0.28 kg |
| Colour | White (RAL 9003) |
| IP degree of protection | IP55 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.000 cm |
| Package 1 Width | 8.300 cm |
| Package 1 Length | 21.700 cm |
| Package 1 Weight | 279.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.850 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 43.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 81.000 kg |
-
PrismaSeT G LVS08896
