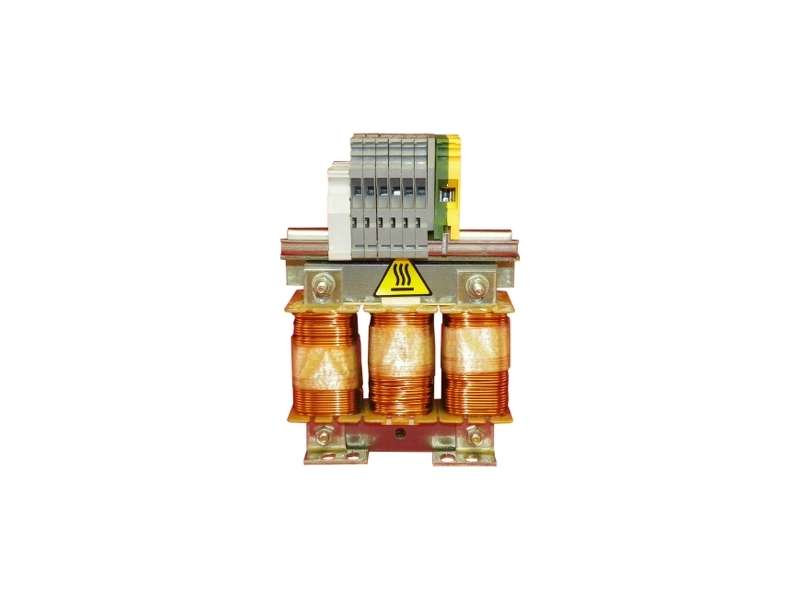

Schneider Electric Linijska/motorna prigušnica - 10 mH - 4 A - trofazna - 45 W - za fr. regulatore;VW3A4551
line/motor choke - 10 mH - 4 A - 3 phases - 45 W - for variable speed drive...
VAT-exclusive price: 25.738,00 |
VAT-inclusive price: 30.885,60 |
line/motor choke - 10 mH - 4 A - 3 phases - 45 W - for variable speed drive
| range of product | Altivar |
|---|---|
| product or component type | Line/motor choke |
| product compatibility |
ATV12H018F1 - motor choke - 1 per drive ATV12H018M2 - motor choke - 1 per drive ATV12H018M3 - motor choke - 1 per drive ATV12H037F1 - motor choke - 1 per drive ATV12H037M2 - motor choke - 1 per drive ATV12H037M3 - motor choke - 1 per drive ATV12H055M2 - motor choke - 1 per drive ATV12P037F1 - motor choke - 1 per drive ATV12P037M2 - motor choke - 1 per drive ATV12P037M3 - motor choke - 1 per drive ATV12P055M2 - motor choke - 1 per drive ATV312H018M3 - line choke - 1 per drive ATV312H037M3 - line choke - 1 per drive ATV312H037N4 - line choke - 1 per drive ATV312H055M3 - line choke - 1 per drive ATV312H055N4 - line choke - 1 per drive ATV312H075M3 - line choke - 1 per drive ATV312H075N4 - line choke - 1 per drive ATV312H075S6 - line choke - 1 per drive ATV312HU11N4 - line choke - 1 per drive ATV312HU15N4 - line choke - 1 per drive ATV312HU15S6 - line choke - 1 per drive ATV32H037N4 - line choke - 1 per drive ATV32H055N4 - line choke - 1 per drive ATV32H075N4 - line choke - 1 per drive ATV32HU11N4 - line choke - 1 per drive ATV32HU15N4 - line choke - 1 per drive ATV61H075M3 - line choke - 1 per drive ATV61H075N4 - line choke - 1 per drive ATV61HU15N4 - line choke - 1 per drive ATV61HU30Y - line choke - 1 per drive ATV61W075N4 - line choke - 1 per drive ATV61W075N4C - line choke - 1 per drive ATV61WU15N4 - line choke - 1 per drive ATV61WU15N4C - line choke - 1 per drive ATV71H037M3 - line choke - 1 per drive ATV71H075M3 - line choke - 1 per drive ATV71H075N4 - line choke - 1 per drive ATV71HU15N4 - line choke - 1 per drive ATV71HU22Y - line choke - 1 per drive ATV71HU30Y - line choke - 1 per drive ATV71P075N4Z - line choke - 1 per drive ATV71PU15N4Z - line choke - 1 per drive ATV71W075N4 - line choke - 1 per drive ATV71WU15N4 - line choke - 1 per drive ATV61HU22S6X - line choke - 1 per drive ATV71HU15S6X - line choke - 1 per drive ATV71HU22S6X - line choke - 1 per drive ATV31C037N4 - line choke - 1 per drive ATV31C055N4 - line choke - 1 per drive ATV31C075N4 - line choke - 1 per drive ATV31CU11N4 - line choke - 1 per drive ATV31CU15N4 - line choke - 1 per drive Variable speed drive ATV310 motor: 0.37 kW - line choke - 1 per drive Variable speed drive ATV310 motor: 0.75 kW - line choke - 1 per drive Variable speed drive ATV340 motor: 0.75 kW 380...480 V - line choke - 1 per drive Variable speed drive ATV340 motor: 1.5 kW 380...480 V - line choke - 1 per drive Variable speed drive ATV320 motor: 0.37 kW 380...500 V - three phase - line choke - 1 per drive Variable speed drive ATV320 motor: 0.55 kW 380...500 V - three phase - line choke - 1 per drive Variable speed drive ATV320 motor: 0.75 kW 380...500 V - three phase - line choke - 1 per drive Variable speed drive ATV320 motor: 1.1 kW 380...500 V - three phase - line choke - 1 per drive Variable speed drive ATV320 motor: 1.5 kW 380...500 V - three phase - line choke - 1 per drive Variable speed drive ATV320 motor: 0.18 kW 200...240 V - three phase - line choke - 1 per drive Variable speed drive ATV320 motor: 0.37 kW 200...240 V - three phase - line choke - 1 per drive Variable speed drive ATV320 motor: 0.55 kW 200...240 V - three phase - line choke - 1 per drive Variable speed drive ATV320 motor: 0.75 kW 200...240 V - three phase - line choke - 1 per drive Variable speed drive ATV320 motor: 0.75 kW 525...600 V - three phase - line choke - 1 per drive Variable speed drive ATV320 motor: 1.5 kW 525...600 V - three phase - line choke - 1 per drive Variable speed drive ATV320 motor: 2.2 kW 525...600 V - three phase - line choke - 1 per drive Variable speed drive ATV630 motor: 2.2 kW 500...690 V - three phase - line choke - 1 per drive Variable speed drive ATV630 motor: 3 kW 500...690 V - three phase - line choke - 1 per drive Variable speed drive ATV630 motor: 4 kW 500...690 V - three phase - line choke - 1 per drive Variable speed drive ATV930 motor: 2.2 kW 500...690 V - three phase - line choke - 1 per drive Variable speed drive ATV930 motor: 3 kW 500...690 V - three phase - line choke - 1 per drive Variable speed drive ATV930 motor: 4 kW 500...690 V - three phase - line choke - 1 per drive Variable speed drive ATV630 motor: 600 V - three phase - line choke - 3 hp - 1 per drive Variable speed drive ATV930 motor: 600 V - three phase - line choke - 3 hp - 1 per drive Variable speed drive ATV310L motor: 0.75 kW Variable speed drive ATV310L motor: 1.5 kW Variable speed drive ATV310L motor: 2.2 kW Variable speed drive ATV310L motor: 3.0 kW Variable speed drive ATV310L motor: 4.0 kW Variable speed drive ATV310L motor: 5.5 kW |
| number of phases | Three phase |
| range compatibility |
Altivar 61 Altivar 312 Altivar Process ATV900 Altivar 32 Altivar 312 Solar Altivar Process ATV600 Altivar 31C Lexium 62 Easy Altivar 310 Altivar Machine ATV340 Altivar Machine ATV320 Altivar 71 Altivar 12 Easy Altivar 310L |
| device application | Reduction of current harmonics |
| value of inductance | 10 mH |
| [In] rated current | 4 A |
| thermal losses | 45 W |
| electrical connection | Terminal 2.5 mm² / AWG 12, 0.4…0.6 N.m |
| power supply frequency | 50...60 Hz |
|---|---|
| max current | 1.65 x nominal current (duration = 60 s) |
| maximum voltage drop at rated load | 5 % |
| electrical insulation class | Class F |
| minimum clearance distance | 5.5 mm IEC 60664 |
| leakage distance | 11.5 mm conforming to IEC 60664 |
| net weight | 1.5 kg |
| width | 100 mm |
| height | 135 mm |
| depth | 60 mm |
| standards |
VDE 0160 level 1 IEC 60076 (with HD398) EN 50178 |
|---|---|
| IP degree of protection |
Choke: IP00 Terminals: IP20 |
| environmental characteristic |
3B1 conforming to IEC 721-3-3 3C2 conforming to IEC 721-3-3 3S1 conforming to IEC 721-3-3 |
| pollution degree | 2 conforming to EN 50178 |
| vibration resistance |
1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| relative humidity | 0…95 % |
| ambient air temperature for operation |
45…55 °C (with current derating of 2 % per °C) 0…45 °C (without current derating) |
| ambient air temperature for storage | -25…70 °C |
| operating altitude |
<= 1000 m without current derating 1000...3000 m with current derating 1 % per 100 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 2.092 kg |
| Package 1 Height | 19.2 cm |
| Package 1 width | 19.4 cm |
| Package 1 Length | 21.2 cm |
| Unit Type of Package 2 | S06 |
| Number of Units in Package 2 | 20 |
| Package 2 Weight | 49.32 kg |
| Package 2 Height | 73.5 cm |
| Package 2 width | 60.0 cm |
| Package 2 Length | 80.0 cm |
| Package 3 Height | 73.5 cm |
| Warranty | 18 months |
|---|
| range of product | Altivar |
|---|---|
| product or component type | Line/motor choke |
| product compatibility |
ATV12H018F1 - motor choke - 1 per drive ATV12H018M2 - motor choke - 1 per drive ATV12H018M3 - motor choke - 1 per drive ATV12H037F1 - motor choke - 1 per drive ATV12H037M2 - motor choke - 1 per drive ATV12H037M3 - motor choke - 1 per drive ATV12H055M2 - motor choke - 1 per drive ATV12P037F1 - motor choke - 1 per drive ATV12P037M2 - motor choke - 1 per drive ATV12P037M3 - motor choke - 1 per drive ATV12P055M2 - motor choke - 1 per drive ATV312H018M3 - line choke - 1 per drive ATV312H037M3 - line choke - 1 per drive ATV312H037N4 - line choke - 1 per drive ATV312H055M3 - line choke - 1 per drive ATV312H055N4 - line choke - 1 per drive ATV312H075M3 - line choke - 1 per drive ATV312H075N4 - line choke - 1 per drive ATV312H075S6 - line choke - 1 per drive ATV312HU11N4 - line choke - 1 per drive ATV312HU15N4 - line choke - 1 per drive ATV312HU15S6 - line choke - 1 per drive ATV32H037N4 - line choke - 1 per drive ATV32H055N4 - line choke - 1 per drive ATV32H075N4 - line choke - 1 per drive ATV32HU11N4 - line choke - 1 per drive ATV32HU15N4 - line choke - 1 per drive ATV61H075M3 - line choke - 1 per drive ATV61H075N4 - line choke - 1 per drive ATV61HU15N4 - line choke - 1 per drive ATV61HU30Y - line choke - 1 per drive ATV61W075N4 - line choke - 1 per drive ATV61W075N4C - line choke - 1 per drive ATV61WU15N4 - line choke - 1 per drive ATV61WU15N4C - line choke - 1 per drive ATV71H037M3 - line choke - 1 per drive ATV71H075M3 - line choke - 1 per drive ATV71H075N4 - line choke - 1 per drive ATV71HU15N4 - line choke - 1 per drive ATV71HU22Y - line choke - 1 per drive ATV71HU30Y - line choke - 1 per drive ATV71P075N4Z - line choke - 1 per drive ATV71PU15N4Z - line choke - 1 per drive ATV71W075N4 - line choke - 1 per drive ATV71WU15N4 - line choke - 1 per drive ATV61HU22S6X - line choke - 1 per drive ATV71HU15S6X - line choke - 1 per drive ATV71HU22S6X - line choke - 1 per drive ATV31C037N4 - line choke - 1 per drive ATV31C055N4 - line choke - 1 per drive ATV31C075N4 - line choke - 1 per drive ATV31CU11N4 - line choke - 1 per drive ATV31CU15N4 - line choke - 1 per drive Variable speed drive ATV310 motor: 0.37 kW - line choke - 1 per drive Variable speed drive ATV310 motor: 0.75 kW - line choke - 1 per drive Variable speed drive ATV340 motor: 0.75 kW 380...480 V - line choke - 1 per drive Variable speed drive ATV340 motor: 1.5 kW 380...480 V - line choke - 1 per drive Variable speed drive ATV320 motor: 0.37 kW 380...500 V - three phase - line choke - 1 per drive Variable speed drive ATV320 motor: 0.55 kW 380...500 V - three phase - line choke - 1 per drive Variable speed drive ATV320 motor: 0.75 kW 380...500 V - three phase - line choke - 1 per drive Variable speed drive ATV320 motor: 1.1 kW 380...500 V - three phase - line choke - 1 per drive Variable speed drive ATV320 motor: 1.5 kW 380...500 V - three phase - line choke - 1 per drive Variable speed drive ATV320 motor: 0.18 kW 200...240 V - three phase - line choke - 1 per drive Variable speed drive ATV320 motor: 0.37 kW 200...240 V - three phase - line choke - 1 per drive Variable speed drive ATV320 motor: 0.55 kW 200...240 V - three phase - line choke - 1 per drive Variable speed drive ATV320 motor: 0.75 kW 200...240 V - three phase - line choke - 1 per drive Variable speed drive ATV320 motor: 0.75 kW 525...600 V - three phase - line choke - 1 per drive Variable speed drive ATV320 motor: 1.5 kW 525...600 V - three phase - line choke - 1 per drive Variable speed drive ATV320 motor: 2.2 kW 525...600 V - three phase - line choke - 1 per drive Variable speed drive ATV630 motor: 2.2 kW 500...690 V - three phase - line choke - 1 per drive Variable speed drive ATV630 motor: 3 kW 500...690 V - three phase - line choke - 1 per drive Variable speed drive ATV630 motor: 4 kW 500...690 V - three phase - line choke - 1 per drive Variable speed drive ATV930 motor: 2.2 kW 500...690 V - three phase - line choke - 1 per drive Variable speed drive ATV930 motor: 3 kW 500...690 V - three phase - line choke - 1 per drive Variable speed drive ATV930 motor: 4 kW 500...690 V - three phase - line choke - 1 per drive Variable speed drive ATV630 motor: 600 V - three phase - line choke - 3 hp - 1 per drive Variable speed drive ATV930 motor: 600 V - three phase - line choke - 3 hp - 1 per drive Variable speed drive ATV310L motor: 0.75 kW Variable speed drive ATV310L motor: 1.5 kW Variable speed drive ATV310L motor: 2.2 kW Variable speed drive ATV310L motor: 3.0 kW Variable speed drive ATV310L motor: 4.0 kW Variable speed drive ATV310L motor: 5.5 kW |
| number of phases | Three phase |
| range compatibility |
Altivar 61 Altivar 312 Altivar Process ATV900 Altivar 32 Altivar 312 Solar Altivar Process ATV600 Altivar 31C Lexium 62 Easy Altivar 310 Altivar Machine ATV340 Altivar Machine ATV320 Altivar 71 Altivar 12 Easy Altivar 310L |
| device application | Reduction of current harmonics |
| value of inductance | 10 mH |
| [In] rated current | 4 A |
| thermal losses | 45 W |
| electrical connection | Terminal 2.5 mm² / AWG 12, 0.4…0.6 N.m |
| power supply frequency | 50...60 Hz |
|---|---|
| max current | 1.65 x nominal current (duration = 60 s) |
| maximum voltage drop at rated load | 5 % |
| electrical insulation class | Class F |
| minimum clearance distance | 5.5 mm IEC 60664 |
| leakage distance | 11.5 mm conforming to IEC 60664 |
| net weight | 1.5 kg |
| width | 100 mm |
| height | 135 mm |
| depth | 60 mm |
