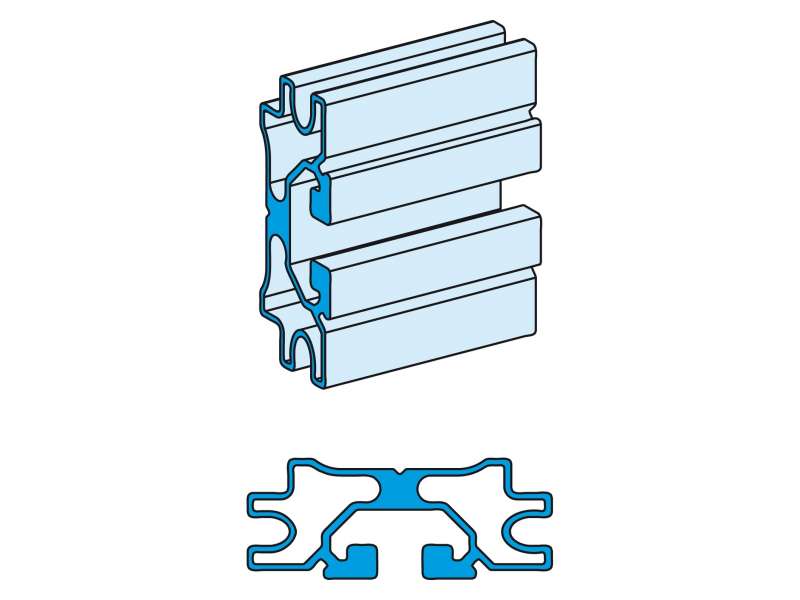

Schneider Electric Linergy LGYE profil 630A D2000; LVS04560

LINERGY LGYE PROFILE 630A LENGTH 2000MM; LVS04560...

Brand: Schneider Electric
Product Code: LVS04560
Availability: Check availability

VAT-exclusive price: 12.582,00

VAT-inclusive price: 15.098,40

Qnt:

Description
Specification

LINERGY LGYE PROFILE 630A LENGTH 2000MM; LVS04560

Main
Range	Linergy
Range of product	Linergy
Product or component type	Profile busbar
product name	Linergy LGYE
Range compatibility	PrismaSeT (PrismaSeT P) enclosure
Accessory / separate part category	Busbar accessory
Busbar description	Linergy
Quantity per set	Set of 1

Complementary
Installation direction	Horizontal, operating position: top Horizontal, operating position: bottom
installation description	Cubicle - width 650 mm Cubicle - width 650 + 150 mm Cubicle duct - width 300 mm Cubicle duct - width 400 mm
[Ui] rated insulation voltage	1000 V
[Uimp] rated impulse withstand voltage	12 kV (degree of pollution: 3)
[Ie] rated operational current	630 A
[Icw] rated short-time withstand current	30 kA (1 s) for 2 supports (horizontal position)
Permissible current	630 A at 35 °C: <= IP31 530 A at 35 °C: > IP31
Length	2000 mm
Height	150 mm
Width	60 mm
Depth	23 mm
Net weight	2.11 kg
Colour	Natural
Type of busbar connection	Single t-slot
Connection pitch	Free connection position
