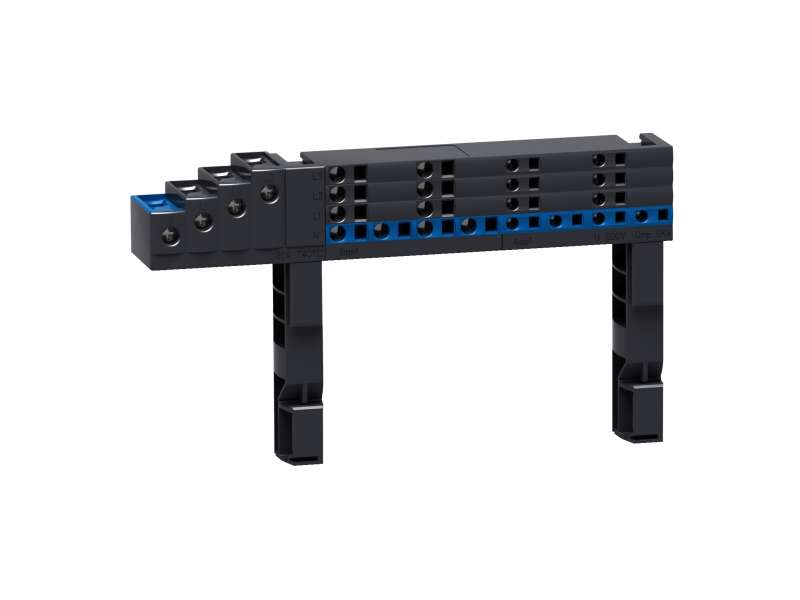

Schneider Electric Linergy FM 3P+N razvodni blok 63A - Š =12 modula 20 izvoda brzo povezivanje; LVS04008
LINERGY FM 4P DIST.BLOCK 63A 12M 20HOLES; LVS04008...
VAT-exclusive price: 3.643,00 |
VAT-inclusive price: 4.371,60 |
LINERGY FM 4P DIST.BLOCK 63A 12M 20HOLES; LVS04008
| Range | Linergy |
|---|---|
| Range of product | Linergy |
| Product or component type | Device feeder |
| Product name | Linergy FM |
| Range compatibility |
PrismaSeT (PrismaSeT G) enclosure PrismaSeT (PrismaSeT P) enclosure PrismaSeT (Prisma PH) enclosure PrismaSeT (PrismaSeT Pack 160) enclosure PrismaSeT (PrismaSeT Pack 250) enclosure |
| Product compatibility | Spacial enclosures |
| IP degree of protection | IPxx B |
| Mounting support |
DIN rail Slotted backplate Plain backplate |
|---|---|
| Mounting mode | - |
| Installed device | modular device |
| Poles description | 3P + N |
| [Ue] rated operational voltage | 440 V AC |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Ie] rated operational current | 63 A |
| [In] rated current | 63 A at 40 °C |
| [Ipk] rated peak withstand current | 12 kA |
| I²t on activation | 2400000 A².s |
| Connections - terminals |
Supply: tunnel type terminal25 mm² Distribution: quick-connect terminal strips (phase) , 2 x 4…6 mm² (rigid) Distribution: quick-connect terminal strips (phase) , 2 x 4…6 mm² (flexible) Distribution: quick-connect terminal strips (neutral) , 4 x 4…6 mm² (rigid) Distribution: quick-connect terminal strips (neutral) , 4 x 4…6 mm² (flexible) Distribution: quick-connect terminal strips (phase) , 2 x 1.5…4 mm² (rigid) Distribution: quick-connect terminal strips (phase) , 2 x 1.5…4 mm² (flexible) Distribution: quick-connect terminal strips (neutral) , 4 x 1.5…4 mm² (rigid) Distribution: quick-connect terminal strips (neutral) , 4 x 1.5…4 mm² (flexible) |
| 9 mm pitches | 24 |
| Total number of 18 mm modules | 12 |
| Net weight | 0.46 kg |
| Colour | Anthracite grey (RAL 7016) |
| Standards |
IEC 61439-1, inside enclosure IEC 61439-2, inside enclosure IEC 60947-7-1 |
|---|---|
| Product certifications | ASTA |
