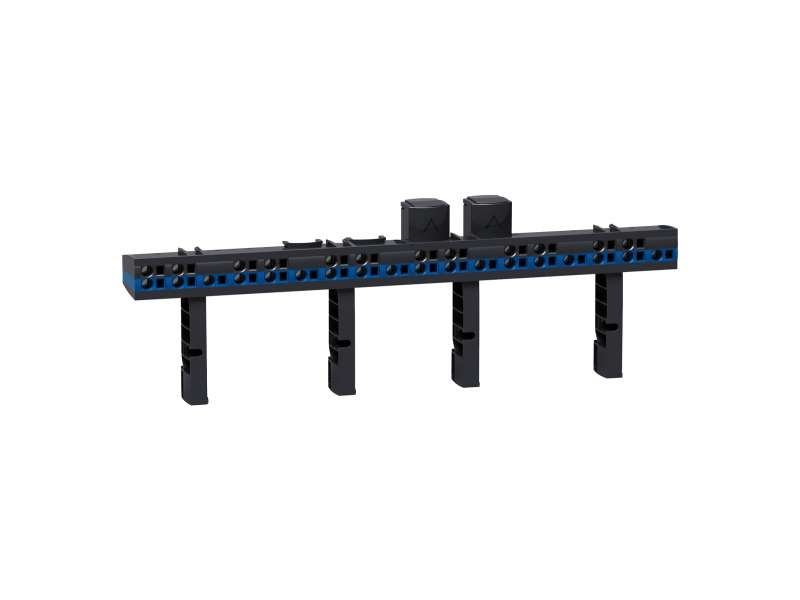

Schneider Electric Linergy FM 2P razvodni blok - 200A - 24 modula 24 izvoda - brzo povezivanje; LVS04012
LINERGY FM 2P DIS.BLOCK 200A 24M 24HOLES; LVS04012...
VAT-exclusive price: 5.630,00 |
VAT-inclusive price: 6.756,00 |
LINERGY FM 2P DIS.BLOCK 200A 24M 24HOLES; LVS04012
| Range | Linergy |
|---|---|
| Range of product | Linergy |
| Product or component type | Device feeder |
| Product name | Linergy FM |
| Range compatibility |
PrismaSeT (PrismaSeT G) enclosure PrismaSeT (PrismaSeT P) enclosure PrismaSeT (Prisma PH) enclosure |
| Product compatibility | Spacial enclosures |
| IP degree of protection | IPxx B |
| Mounting support |
Slotted backplate DIN rail Plain backplate |
|---|---|
| Mounting mode |
By screws Clip-on |
| Installed device | modular device |
| Poles description | 1P + N |
| [Ue] rated operational voltage | 690 V AC |
| [Ui] rated insulation voltage | 750 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ie] rated operational current | 200 A |
| [In] rated current | 200 A at 40 °C |
| [Ipk] rated peak withstand current | 20 kA |
| I²t on activation | 6700000 A².s |
| Connections - terminals |
Supply: crimped lug50 mm² Supply: flexible bars, 20 x 3 mm Distribution: quick-connect terminal strips (phase) , 12 x 4…10 mm² (flexible) Distribution: quick-connect terminal strips (phase) , 12 x 4…10 mm² (rigid) Distribution: quick-connect terminal strips (neutral) , 18 x 4…10 mm² (flexible) Distribution: quick-connect terminal strips (neutral) , 18 x 4…10 mm² (rigid) |
| 9 mm pitches | 48 |
| Total number of 18 mm modules | 24 |
| Net weight | 1.02 kg |
| Colour | Anthracite grey (RAL 7016) |
| Standards |
IEC 61439-1, inside enclosure IEC 61439-2, inside enclosure IEC 60947-7-1 |
|---|---|
| Product certifications | ASTA |
