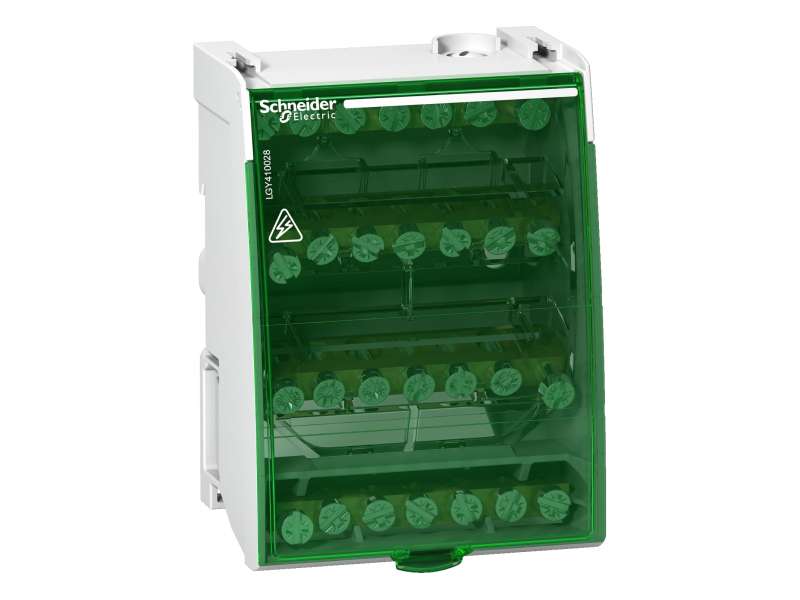

Schneider Electric Linergy DS - vijčani razvodni blok 4P - 100A - 28 izvoda ; LGY410028
Linergy DS - screw distribution block 4P - 100A - 28 holes...
VAT-exclusive price: 2.653,00 |
VAT-inclusive price: 3.183,60 |
Linergy DS - screw distribution block 4P - 100A - 28 holes
| range |
Linergy
|
|
|---|---|---|
| product name |
Linergy DS
|
|
| product or component type |
Distribution block
|
| mounting support |
DIN rail
|
|
|---|---|---|
| range compatibility |
Prisma G
Prisma P Prisma PH Prisma Pack Spacial Kaedra Pragma TeSys ComPact |
|
| product compatibility |
Spacial enclosures
|
|
| poles description |
4P
|
|
| distribution block outgoers |
4 x 7 holes
|
|
| [Ue] rated operational voltage |
230 V AC Ph/N
440 V AC Ph/Ph |
|
| [Ui] rated insulation voltage |
500 V AC
|
|
| [Uimp] rated impulse withstand voltage |
8 kV
|
|
| [Ie] rated operational current |
100 A at 40 °C
|
|
| [Icw] rated short-time withstand current |
3 kAfor 1 s
|
|
| [Ipk] rated peak withstand current |
24 kA
|
|
| connections - terminals |
Supply: screw terminal 2 cable(s) 2.5…25 mm² rigid
Supply: screw terminal 2 cable(s) 1.5…16 mm² flexible with cable end Distribution: screw terminal 5 cable(s) 1.5…16 mm² rigid Distribution: screw terminal 5 cable(s) 1.5…10 mm² flexible with cable end |
|
| tightening torque |
Supply: 2 N.m flat screwdriver 7.5 mm
Supply: 2 N.m PZ2 screwdriver 7.5 mm Distribution: 2 N.m flat screwdriver 5.5 mm Distribution: 2 N.m PZ2 screwdriver 5.5 mm |
|
| 9 mm pitches |
8
|
|
| height |
100 mm
|
|
| width |
71 mm
|
|
| depth |
50.5 mm
|
|
| net weight |
0.21 kg
|
|
| colour |
White (RAL 9003)
|
| pollution degree |
3
|
|
|---|---|---|
| overvoltage category |
III
|
|
| dielectric strength |
2500 V
|
|
| standards |
EN/IEC 61439-1
EN/IEC 60947-7-1 |
|
| ambient air temperature for operation |
-25…55 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
256 g
|
|
| Package 1 Height |
5.4 cm
|
|
| Package 1 width |
10.8 cm
|
|
| Package 1 Length |
13.2 cm
|
|
| Unit Type of Package 2 |
S03
|
|
| Number of Units in Package 2 |
34
|
|
| Package 2 Weight |
9.259 kg
|
|
| Package 2 Height |
30 cm
|
|
| Package 2 width |
30 cm
|
|
| Package 2 Length |
40 cm
|
|
| Unit Type of Package 3 |
P12
|
|
| Number of Units in Package 3 |
272
|
|
| Package 3 Weight |
86.072 kg
|
|
| Package 3 Height |
80 cm
|
|
-
Prisma G LGY410028
