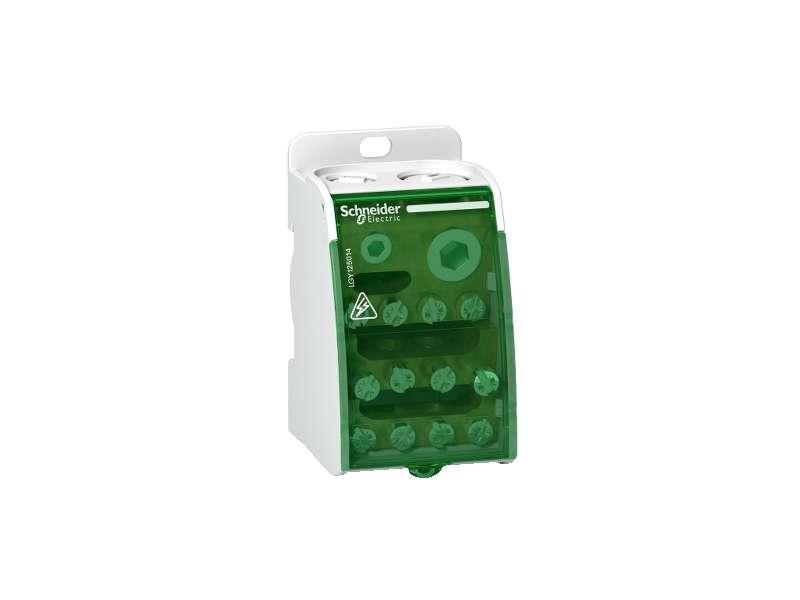

Schneider Electric Linergy DS - screw distribution block 1P - 250A - 14 holes; LGY125014
Linergy DS - screw distribution block 1P - 250A - 14 holes...
VAT-exclusive price: 5.777,00 |
VAT-inclusive price: 6.932,40 |
Linergy DS - screw distribution block 1P - 250A - 14 holes
| Range | Linergy |
|---|---|
| Product name | Linergy DS |
| Product or component type | Distribution block |
| Mounting support | DIN rail |
|---|---|
| Range compatibility |
Prisma G Prisma P Prisma PH Spacial TeSys |
| Product compatibility | Spacial enclosures |
| Poles description | 1P |
| Distribution block outgoers | 14 holes |
| [Ue] rated operational voltage |
230 V AC Ph/N 440 V AC Ph/Ph |
| [Ui] rated insulation voltage | 500 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ie] rated operational current | 250 A at 40 °C |
| [Icw] rated short-time withstand current | 14.4 kA for 1 s |
| [Ipk] rated peak withstand current | 60 kA |
| Connections - terminals |
Distribution: screw terminal 4 cable(s) 1.5…16 mm² rigid Distribution: screw terminal 4 cable(s) 1.5…10 mm² flexible with cable end Distribution: screw terminal 8 cable(s) 2.5…25 mm² rigid Distribution: screw terminal 8 cable(s) 1.5…16 mm² flexible with cable end Supply: screw terminal 1 cable(s) 35…120 mm² rigid Supply: screw terminal 1 cable(s) 23…95 mm² flexible with cable end Distribution: screw terminal 1 cable(s) 1.5…50 mm² rigid Distribution: screw terminal 1 cable(s) 1.5…35 mm² flexible with cable end |
| Tightening torque |
Distribution: 2 N.m flat screwdriver 7.5 mm Distribution: 2 N.m PZ2 screwdriver 7.5 mm Supply: 10 N.m flat screwdriver 15.3 mm Supply: 10 N.m PZ2 screwdriver 15.3 mm Distribution: 4 N.m flat screwdriver 10 mm Distribution: 4 N.m PZ2 screwdriver 10 mm Distribution: 2 N.m flat screwdriver 6 mm Distribution: 2 N.m PZ2 screwdriver 6 mm |
| 9 mm pitches | 5 |
| Height | 85 mm |
| Width | 45 mm |
| Depth | 50.5 mm |
| Net weight | 0.252 kg |
| Colour | White (RAL 9003) |
| Pollution degree | 3 |
|---|---|
| Overvoltage category | III |
| Dielectric strength | 2500 V |
| Standards |
EN/IEC 60947-7-1 EN/IEC 61439-1 |
| Ambient air temperature for operation | -25…55 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 5.1 cm |
| Package 1 Length | 8.7 cm |
| Package 1 Weight | 255 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 15.875 kg |
| Warranty | 18 months |
|---|
