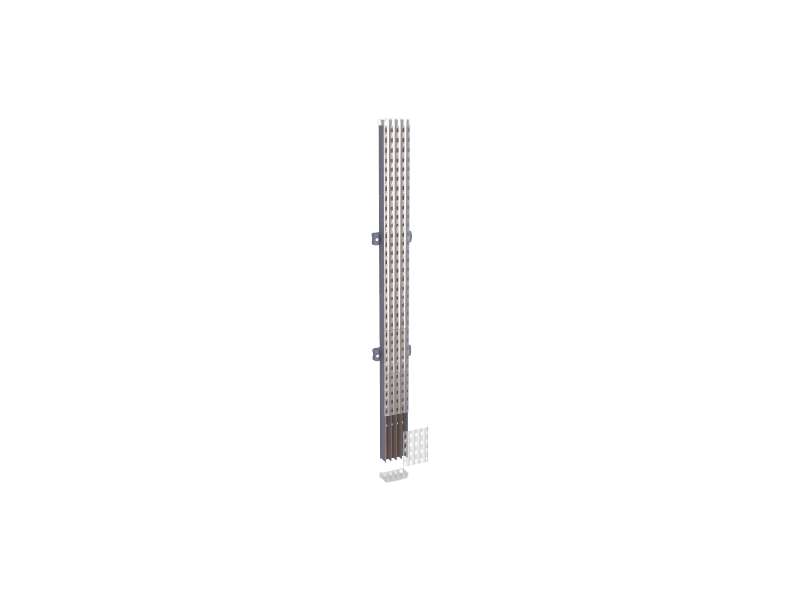

Schneider Electric Linergy BW 3P IPxxB izolovana sabirnica 160A L1000; LVS04111
Busbar, Linergy BW, 3P, 160A, insulated busbar, vertical, L1000mm...
VAT-exclusive price: 11.457,00 |
VAT-inclusive price: 13.748,40 |
Busbar, Linergy BW, 3P, 160A, insulated busbar, vertical, L1000mm
| Range | Linergy |
|---|---|
| Range of product | Linergy |
| Product or component type | Busbar |
| Product name | Linergy BW |
| Range compatibility |
PrismaSeT (PrismaSeT G) enclosure PrismaSeT (PrismaSeT P) enclosure |
| IP degree of protection | IPxx B |
| Busbar description | Insulated bar |
| Quantity per set | Set of 1 |
| Poles description | 3P |
|---|---|
| Installation direction | Vertical, operating position: rear |
| installation description |
Cubicle - width 650 mm Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm Floor-standing duct - width 300 mm Wall-mounted duct - width 300 mm Pack enclosure |
| [Ui] rated insulation voltage | 750 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ie] rated operational current | 160 A |
| [Icw] rated short-time withstand current | 10 kA (1 s) |
| [Ipk] rated peak withstand current | 30 kA |
| I²t on activation | 100000 kA².s |
| Permissible current | 160 A |
| Length | 1000 mm |
| Height | 85 mm |
| Depth | 45 mm |
| Net weight | 3.32 kg |
| Type of busbar connection | M6 threaded hole |
| Connection pitch | Connection each 25 mm |
| Standards |
IEC 61439-1 IEC 61439-2 |
|---|---|
| Product certifications | ASTA |
| Mechanical robustness | Seismic tests structure reinforcement - 2.5G conforming to IEC 60068-2-57 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.5 cm |
| Package 1 Width | 13.0 cm |
| Package 1 Length | 112.5 cm |
| Package 1 Weight | 3.379 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 28.0 cm |
| Package 2 Width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Package 2 Weight | 72.5 kg |
