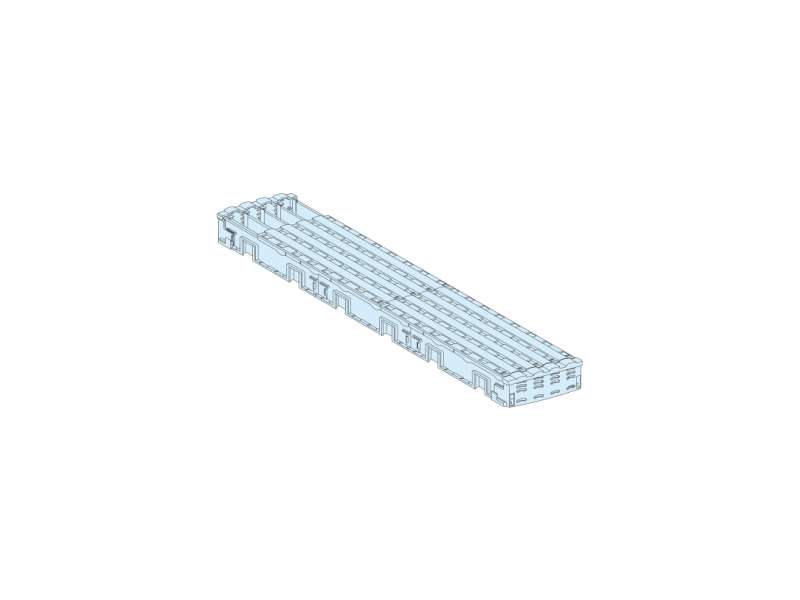

Schneider Electric Linergy BW 3P IPxxB izolovana sabirnica 125A L450; LVS04103

Busbar, Linergy BW, 3P, 125A, insulated busbar, vertical, L450mm...

Brand: Schneider Electric
Product Code: LVS04103
Availability: Check availability

VAT-exclusive price: 8.089,00

VAT-inclusive price: 9.706,80

Qnt:

Description
Specification

Busbar, Linergy BW, 3P, 125A, insulated busbar, vertical, L450mm

Main
Range	Linergy
Range of product	Linergy
Product or component type	Busbar
Product name	Linergy BW
Range compatibility	PrismaSeT (PrismaSeT G) enclosure PrismaSeT (PrismaSeT P) enclosure
IP degree of protection	IPxx B
Busbar description	Insulated bar
Quantity per set	Set of 1

Complementary
Poles description	3P
Installation direction	Vertical, operating position: rear
installation description	Cubicle - width 650 mm Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm Floor-standing duct - width 300 mm Wall-mounted duct - width 300 mm Pack enclosure
[Ui] rated insulation voltage	500 V AC
[Uimp] rated impulse withstand voltage	8 kV
[Ie] rated operational current	125 A
[Icw] rated short-time withstand current	8.5 kA (1 s)
[Ipk] rated peak withstand current	20 kA
I²t on activation	72250 kA².s
Permissible current	125 A
Length	450 mm
Height	85 mm
Depth	35 mm
Net weight	1.2 kg
Type of busbar connection	M6 threaded hole
Connection pitch	Connection each 25 mm

Environment
Standards	IEC 61439-2 IEC 61439-1
Product certifications	ASTA

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	3.3 cm
Package 1 Width	11.6 cm
Package 1 Length	55.0 cm
Package 1 Weight	1.192 kg
Unit Type of Package 2	P12
Number of Units in Package 2	36
Package 2 Height	24.0 cm
Package 2 Width	80.0 cm
Package 2 Length	120.0 cm
Package 2 Weight	54.5 kg
