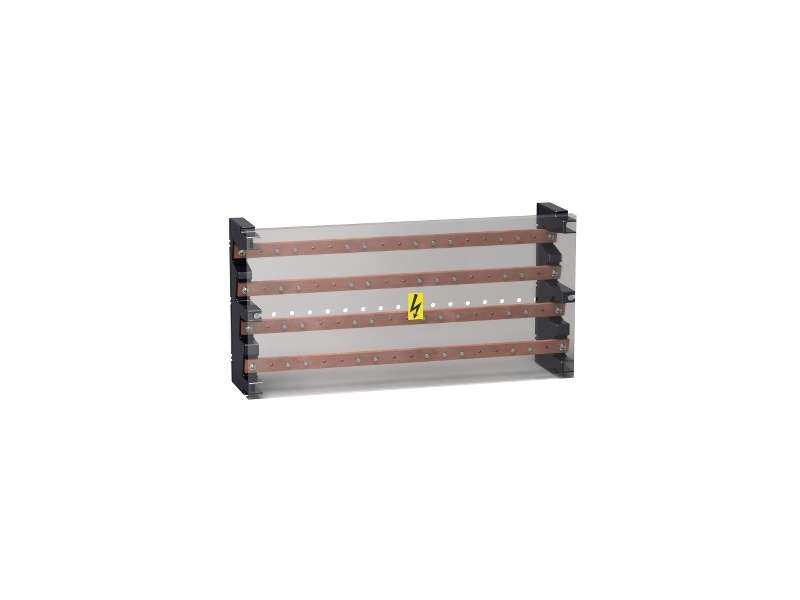

Schneider Electric Linergy BS - 4P višeizlazni sabirnički blok 630A - 52 izvoda - 235x470x115; LVS04055
LINERGY BS 4P MULTISTAGE BB 630A 52HOLES...
VAT-exclusive price: 47.179,00 |
VAT-inclusive price: 56.614,80 |
LINERGY BS 4P MULTISTAGE BB 630A 52HOLES
| Range | Linergy |
|---|---|
| Range of product | Linergy |
| Product or component type | Multi-stage distribution block |
| Product name | Linergy BS |
| Range compatibility |
PrismaSeT (PrismaSeT G) enclosure PrismaSeT (PrismaSeT P) enclosure |
| Product compatibility | Spacial enclosures |
| IP degree of protection | IPxx B |
| Mounting support |
Slotted backplate Prisma upright Plain backplate |
|---|---|
| Mounting mode |
Vertical Horizontal |
| Poles description | 4P |
| [Ue] rated operational voltage | 440 V AC |
| [Ui] rated insulation voltage | 750 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ie] rated operational current | 630 A |
| [In] rated current | 630 A at 40 °C |
| [Icw] rated short-time withstand current | 25 kA for 1 s |
| [Ipk] rated peak withstand current | 40 kA |
| I²t on activation | 625000000 A².s |
| Busbar cross section | 32 x 8 mm |
| Connections - terminals |
Supply: crimped lug50 mm² Supply: flexible bars, 32 x 8 mm Distribution: M6 holes (phase) , 13 x 1…50 mm² |
| Height | 235 mm |
| Width | 470 mm |
| Depth | 115 mm |
| Net weight | 5.6 kg |
| Standards |
IEC 61439-1, inside enclosure IEC 61439-2, inside enclosure |
|---|---|
| Product certifications | ASTA |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.5 cm |
| Package 1 Width | 25.5 cm |
| Package 1 Length | 55.0 cm |
| Package 1 Weight | 5.596 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 91.0 cm |
| Package 2 Width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Package 2 Weight | 179.5 kg |
