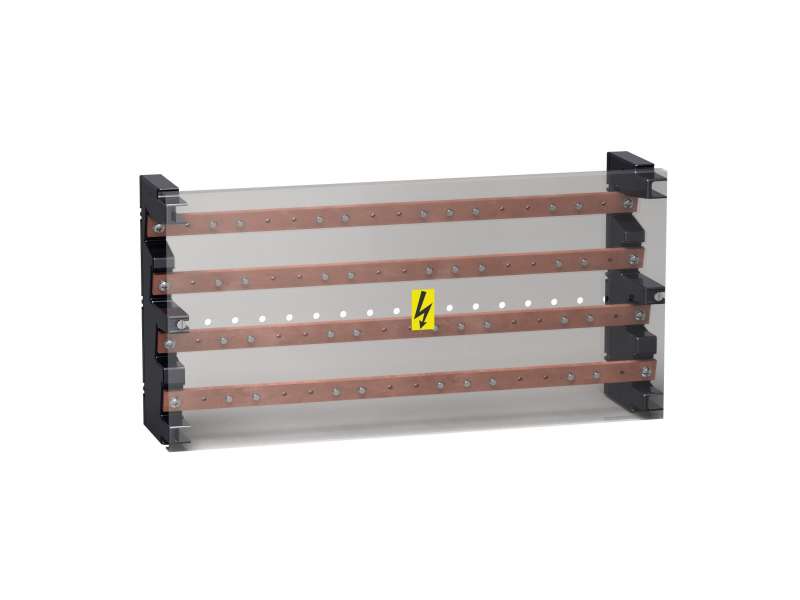

Schneider Electric Linergy BS - 4P višeizlazni sabirnički blok 250A - 52 izvoda - 235x470x115; LVS04053
LINERGY BS 4P MULTISTAGE BB 250A 52HOLES; LVS04053...
VAT-exclusive price: 18.873,00 |
VAT-inclusive price: 22.647,60 |
LINERGY BS 4P MULTISTAGE BB 250A 52HOLES; LVS04053
| Range | Linergy |
|---|---|
| Range of product | Linergy |
| Product or component type | Multi-stage distribution block |
| product name | Linergy BS |
| Range compatibility |
PrismaSeT (PrismaSeT G) enclosure PrismaSeT (PrismaSeT P) enclosure |
| Product compatibility | Spacial enclosures |
| IP degree of protection | IPxx B |
| mounting support |
Plain backplate Prisma upright |
|---|---|
| Mounting mode |
Horizontal Vertical |
| Poles description | 4P |
| [Ue] rated operational voltage | 440 V AC |
| [Ui] rated insulation voltage | 750 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ie] rated operational current | 250 A |
| [In] rated current | 250 A at 40 °C |
| [Icw] rated short-time withstand current | 13 kA for 1 s |
| [Ipk] rated peak withstand current | 30 kA |
| I²t on activation | 169000000 A².s |
| Busbar cross section | 20 x 5 mm |
| Connections - terminals |
Supply: crimped lug50 mm² Supply: flexible bars, 20 x 3 mm Distribution: M6 holes (phase) , 13 x 1…50 mm² |
| Height | 235 mm |
| Width | 470 mm |
| Depth | 115 mm |
| Net weight | 3.2 kg |
| Standards |
IEC 61439-1, inside enclosure IEC 61439-2, inside enclosure |
|---|---|
| Product certifications | ASTA |
