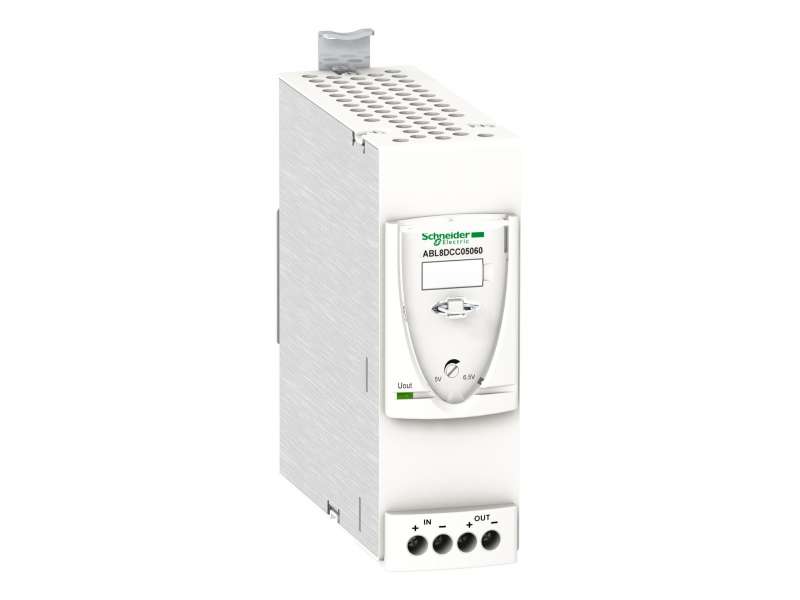

Schneider Electric Konvertor 30 W - 24..28.8 V DC, 5 V DC - 6 A - za regulisano napajanje SMPS;ABL8DCC05060
Converter module 30 W - 24..28.8 V DC, 5 V DC - 6 A - for regulated SMPS...
VAT-exclusive price: 16.074,00 |
VAT-inclusive price: 19.288,80 |
Converter module 30 W - 24..28.8 V DC, 5 V DC - 6 A - for regulated SMPS
| range of product |
Phaseo Universal
|
|
|---|---|---|
| product or component type |
Converter module
|
|
| rated power in W |
30 W
|
|
| input voltage |
24...28.8 V DC
|
|
| output voltage |
5 V DC
|
|
| power supply output current |
6 A
|
| input voltage limits |
22...30 V
|
|
|---|---|---|
| efficiency |
80 %
|
|
| power dissipation in W |
7 W
|
|
| input protection type |
Against reverse polarity
|
|
| output voltage limits |
5...6.5 V
|
|
| line and load regulation |
1...3 %
|
|
| residual ripple |
<= 100 mV
|
|
| output protection type |
Against overload, protection technology: automatic reset
Against overvoltage, protection technology: tripping if U > 7.8 V, automatic reset Against short-circuits, protection technology: automatic reset |
|
| connections - terminals |
For input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 4 mm² AWG 24...AWG 10
For output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 4 mm² AWG 24...AWG 10 |
|
| fixing mode |
By clips on 35 mm symmetrical DIN rail, operating position: horizontal with derating to 40 %
By clips on 35 mm symmetrical DIN rail, operating position: vertical |
|
| operating altitude |
2000 m
|
|
| name of test |
Induced electromagnetic field conforming to EN/IEC 61000-4-6 level 3
Radiated electromagnetic field conforming to EN/IEC 61000-4-3 level 3 Rapid transient conforming to IEC 61000-4-4 level 3 Surge conforming to EN/IEC 61000-4-5 level 2 Conducted/radiated emissions conforming to EN 55022 class B Electrostatic discharges conforming to EN/IEC 61000-4-2 Emission conforming to EN 61000-6-3 |
|
| local signalling |
1 LED (green) for output voltage (> 4 V)
|
|
| net weight |
0.3 kg
|
| IP degree of protection |
IP20 conforming to EN/IEC 60529
|
|
|---|---|---|
| ambient air temperature for operation |
-25…60 °C
|
|
| ambient air temperature for storage |
-40…85 °C
|
|
| relative humidity |
0…90 % during operation
0…95 % during storage |
|
| overvoltage category |
Class 3
|
|
| vibration resistance |
2 gn (f= 11.9…150 Hz) conforming to EN/IEC 61131-2
3.5 mm (f= 3…11.9 Hz) conforming to EN/IEC 61131-2 |
|
| dielectric strength |
500 V between input and ground
500 V between input and output 500 V between output and ground |
|
| product certifications |
EAC
CCSAus RCM UL |
|
| environmental characteristic |
EMC conforming to EN 50081-1
EMC conforming to EN 61000-6-3 EMC conforming to EN/IEC 61000-6-2 Safety conforming to EN/IEC 60950-1 Safety conforming to IEC 61204 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
610 g
|
|
| Package 1 Height |
6.5 cm
|
|
| Package 1 width |
14.5 cm
|
|
| Package 1 Length |
16.5 cm
|
|
| Unit Type of Package 2 |
S04
|
|
| Number of Units in Package 2 |
18
|
|
| Package 2 Weight |
12.268 kg
|
|
| Package 2 Height |
30 cm
|
|
| Package 2 width |
40 cm
|
|
| Package 2 Length |
60 cm
|
| Sustainable offer status |
Green Premium product
|
|---|
-
Phaseo ABL7 ABL8 ABL8DCC05060
