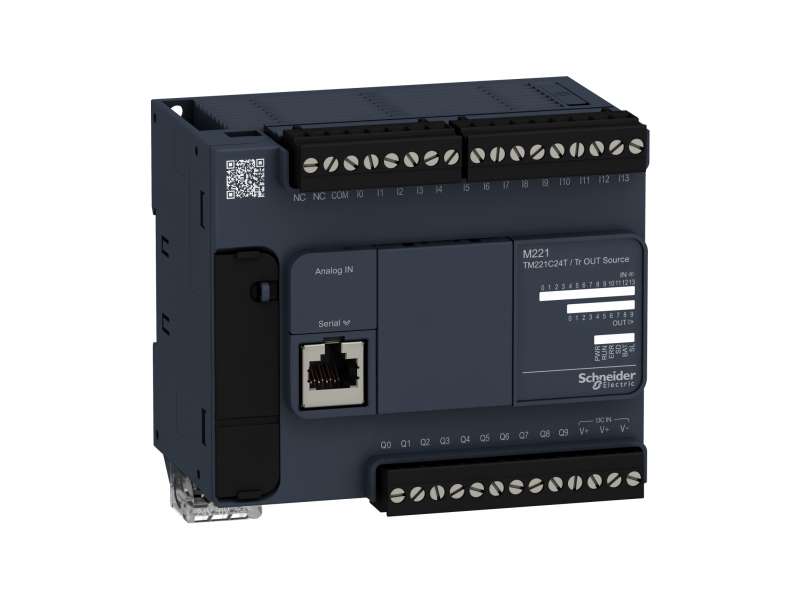

Name: Schneider Electric Kontroler M221 24 IO tranzistorski PNP ; TM221C24T
Brand: Schneider Electric
SKU: TM221C24T
Price: 30741.60 RSD
Availability: OutOfStock

Schneider Electric Kontroler M221 24 IO tranzistorski PNP ; TM221C24T

controller M221 24 IO transistor PNP...

Brand: Schneider Electric
Product Code: TM221C24T
Availability: Check availability

VAT-exclusive price: 25.618,00

VAT-inclusive price: 30.741,60

Qnt:

controller M221 24 IO transistor PNP

Main
range of product	Modicon M221
product or component type	Logic controller
[Us] rated supply voltage	24 V DC
discrete input number	14, discrete input 4 fast input conforming to IEC 61131-2 Type 1
analogue input number	2 at 0...10 V
discrete output type	Transistor
discrete output number	10 transistor 2 fast output
discrete output voltage	24 V DC
discrete output current	0.5 A

Complementary
discrete I/O number	24
maximum number of I/O expansion module	7 for transistor output 7 for relay output
supply voltage limits	20.4…28.8 V
inrush current	35 A
maximum power consumption in W	13 W at 24 V (with max number of I/O expansion module) 4.1 W at 24 V (without I/O expansion module)
power supply output current	0.52 A 5 V for expansion bus 0.2 A 24 V for expansion bus
discrete input logic	Sink or source (positive/negative)
discrete input voltage	24 V
discrete input voltage type	DC
analogue input resolution	10 bits
LSB value	10 mV
conversion time	1 ms per channel + 1 controller cycle time for analogue input analog input
permitted overload on inputs	+/- 30 V DC for 5 min (maximum) for analog input +/- 13 V DC (permanent) for analog input
voltage state 1 guaranteed	>= 15 V for input
voltage state 0 guaranteed	<= 5 V for input
discrete input current	7 mA for discrete input 5 mA for fast input
input impedance	3.4 kOhm for discrete input 100 kOhm for analog input 4.9 kOhm for fast input
response time	35 µs turn-off, I2...I5 terminal(s) for input 5 µs turn-on, I0, I1, I6, I7 terminal(s) for fast input 35 µs turn-on, other terminals terminal(s) for input 5 µs turn-off, I0, I1, I6, I7 terminal(s) for fast input 100 µs turn-off, other terminals terminal(s) for input 5 µs turn-on, turn-off, Q0...Q1 terminal(s) for output 50 µs turn-on, turn-off, Q2...Q3 terminal(s) for output 300 µs turn-on, turn-off, other terminals terminal(s) for output
configurable filtering time	0 ms for input 3 ms for input 12 ms for input
discrete output logic	Positive logic (source)
maximum current per output common	5 A
output frequency	100 kHz for fast output (PWM/PLS mode) at Q0...Q1 5 kHz for output at Q2...Q3 0.1 kHz for output at Q4...Q9
absolute accuracy error	+/- 1 % of full scale for analog input
maximum leakage current	0.1 mA for transistor output
maximum voltage drop	<1 V
mechanical durability	20000000 cycles for transistor output
maximum tungsten load	<12 W for output and fast output
protection type	Overload and short-circuit protection at 1 A
reset time	1 s automatic reset
memory capacity	256 kB for user application and data RAM with 10000 instructions 256 kB for internal variables RAM
data backed up	256 kB built-in flash memory for backup of application and data
data storage equipment	2 GB SD card (optional)
battery type	BR2032 lithium non-rechargeable, battery life: 4 year(s)
backup time	1 year at 25 °C (by interruption of power supply)
execution time for 1 KInstruction	0.3 ms for event and periodic task
execution time per instruction	0.2 µs Boolean
exct time for event task	60 µs response time
maximum size of object areas	512 %KW constant words 255 %C counters 8000 %MW memory words 255 %TM timers 512 %M memory bits
realtime clock	With
clock drift	<= 30 s/month at 25 °C
regulation loop	Adjustable PID regulator up to 14 simultaneous loops
positioning functions	Position PTO 2 axe(s)pulse/direction mode (100 kHz) Position PTO 1 axe(s)CW/CCW mode (100 kHz)
function available	PWM PLS Frequency generator
counting input number	4 fast input (HSC mode) at 100 kHz 32 bits
counter function	A/B Single phase Pulse/direction
integrated connection type	USB port with mini B USB 2.0 connector Non isolated serial link serial 1 with RJ45 connector and RS485 interface Non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface
supply	(serial)serial link supply: 5 V, <200 mA
transmission rate	1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232 480 Mbit/s for USB
communication port protocol	USB port: USB - SoMachine-Network Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network
local signalling	1 LED (green)PWR: 1 LED (green)RUN: 1 LED (red)module error (ERR): 1 LED (green)SD card access (SD): 1 LED (red)BAT: 1 LED (green)SL1: 1 LED (green)SL2: 1 LED per channel (green)I/O state:
electrical connection	removable screw terminal block for inputs removable screw terminal block for outputs terminal block, 3 terminal(s) for connecting the 24 V DC power supply connector, 4 terminal(s) for analogue inputs Mini B USB 2.0 connector for a programming terminal
maximum cable distance between devices	Shielded cable: <10 m for fast input Unshielded cable: <30 m for output Unshielded cable: <30 m for digital input Unshielded cable: <1 m for analog input Shielded cable: <3 m for fast output
insulation	Between input and internal logic at 500 V AC Between fast input and internal logic at 500 V AC Non-insulated between inputs Between output and internal logic at 500 V AC Non-insulated between analogue input and internal logic Non-insulated between analogue inputs
marking	CE
mounting support	Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit
height	90 mm
depth	70 mm
width	110 mm
net weight	0.395 kg

Environment
standards	EN/IEC 61131-2 EN/IEC 60664-1 EN/IEC 61010-2-201
product certifications	DNV-GL LR CULus RCM EAC IACS E10 CSA ABS
environmental characteristic	Ordinary and hazardous location
resistance to electrostatic discharge	8 kV in air conforming to EN/IEC 61000-4-2 4 kV on contact conforming to EN/IEC 61000-4-2
resistance to electromagnetic fields	10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 1 V/m 2...2.7 GHz conforming to EN/IEC 61000-4-3
resistance to magnetic fields	30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8
resistance to fast transients	2 kV (power lines) conforming to EN/IEC 61000-4-4 2 kV (relay output) conforming to EN/IEC 61000-4-4 1 kV (I/O) conforming to EN/IEC 61000-4-4 1 kV (Ethernet line) conforming to EN/IEC 61000-4-4 1 kV (serial link) conforming to EN/IEC 61000-4-4
surge withstand	2 kV power lines (AC) common mode conforming to EN/IEC 61000-4-5 2 kV relay output common mode conforming to EN/IEC 61000-4-5 1 kV I/O common mode conforming to EN/IEC 61000-4-5 1 kV shielded cable common mode conforming to EN/IEC 61000-4-5 0.5 kV power lines (DC) differential mode conforming to EN/IEC 61000-4-5 1 kV power lines (AC) differential mode conforming to EN/IEC 61000-4-5 1 kV relay output differential mode conforming to EN/IEC 61000-4-5 0.5 kV power lines (DC) common mode conforming to EN/IEC 61000-4-5
resistance to conducted disturbances	10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)
electromagnetic emission	Conducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines (AC)) at 0.15…0.5 MHz conforming to EN/IEC 55011 Conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines (AC)) at 0.5…300 MHz conforming to EN/IEC 55011 Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10…150 kHz conforming to EN/IEC 55011 Conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5…30 MHz conforming to EN/IEC 55011 Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011 Conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150…1500 kHz conforming to EN/IEC 55011 Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 200…1000 MHz conforming to EN/IEC 55011
immunity to microbreaks	10 ms
ambient air temperature for operation	-10…55 °C (horizontal installation) -10…35 °C (vertical installation)
ambient air temperature for storage	-25…70 °C
relative humidity	10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage)
IP degree of protection	IP20 with protective cover in place
pollution degree	<= 2
operating altitude	0...2000 m
storage altitude	0…3000 m
vibration resistance	3.5 mm at 5…8.4 Hz on symmetrical rail 3.5 mm at 5…8.4 Hz on panel mounting 1 gn at 8.4…150 Hz on symmetrical rail 1 gn at 8.4…150 Hz on panel mounting
shock resistance	147 m/s² for 11 ms

Packing Units
Package 1 Weight	380.000 g
Package 1 Height	106.000 mm
Package 1 width	139.000 mm
Package 1 Length	155.000 mm

Offer Sustainability
Sustainable offer status	Green Premium product
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
PVC free	Yes
