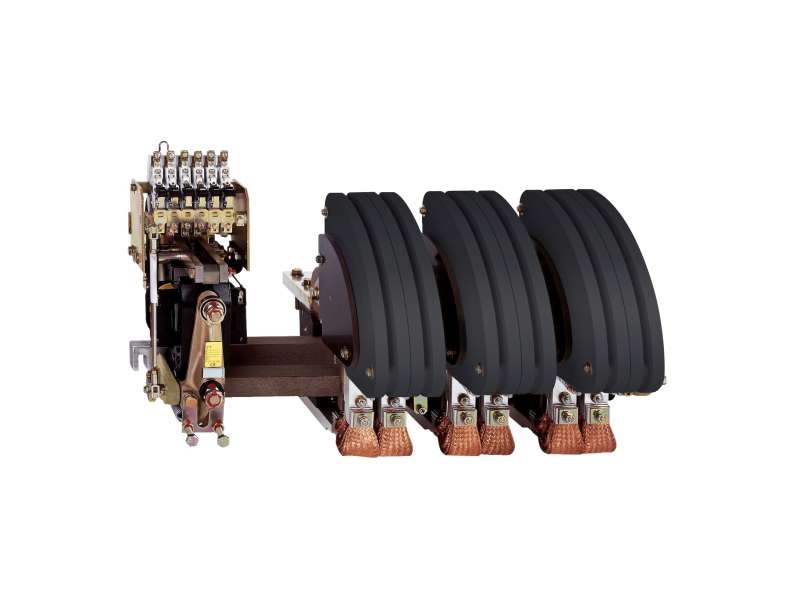

bar-mounted contactor - TeSys LC1-BP - 3 poles - AC-3 440V 1500 A - coil 230V AC
| range |
TeSys
|
|
|---|---|---|
| product name |
TeSys B
|
|
| product or component type |
Contactor
|
|
| device short name |
LC1BP
|
|
| contactor application |
Motor-heating-lighting
|
|
| utilisation category |
AC-4
AC-1 AC-3 |
|
| control circuit type |
AC
|
|
| coil type |
Standard
|
|
| poles description |
3P
|
|
| pole contact composition |
3 NO
|
|
| [Ie] rated operational current |
2000 A (at <40 °C) AC AC-1 for power circuit
1500 A (at <55 °C) AC AC-3 for power circuit |
|
| motor power kW |
425 kW at 220...230 V AC 50/60 Hz (AC-3)
670 kW at 1000 V AC 50/60 Hz (AC-3) 700 kW at 500 V AC 50/60 Hz (AC-3) 750 kW at 380...400 V AC 50/60 Hz (AC-3) 750 kW at 660...690 V AC 50/60 Hz (AC-3) 800 kW at 415 V AC 50/60 Hz (AC-3) 800 kW at 440 V AC 50/60 Hz (AC-3) 220 kW at 400 V AC 50/60 Hz (AC-4) |
|
| auxiliary contact composition |
2 NO + 2 NC
|
|
| [Uc] control circuit voltage |
230 V AC 50...400 Hz
|
| control circuit voltage limits |
Operational: 0.85...1.1 Uc at 50...400 Hz
Drop-out: 0.35...0.5 Uc at 50...400 Hz |
|
|---|---|---|
| [Ui] rated insulation voltage |
1000 V - for power circuit conforming to IEC 60158-1
1000 V - for power circuit conforming to IEC 60947-4 1500 V - for power circuit conforming to VDE 0110 group C |
|
| mounting mode |
Fixed
|
|
| mounting support |
Bar support bracket
Notched mounting rails |
|
| connections - terminals |
Power circuit: bars 3 x - busbar cross section: 100 x 5 mm
|
|
| tightening torque |
Power circuit: 35 N.m - on bars
|
|
| [Ue] rated operational voltage |
Power circuit: <= 1000 V AC 50/60 Hz
|
|
| [Ith] conventional free air thermal current |
2000 A (at 40 °C) for power circuit
|
|
| Irms rated making capacity |
15000 A at 1000 V AC for power circuit conforming to IEC 60158-1
15000 A at 1000 V AC for power circuit conforming to IEC 60947-4 |
|
| rated breaking capacity |
12000 A at 500 V for power circuit conforming to IEC 60158-1
12000 A at 500 V for power circuit conforming to IEC 60947-4 15000 A at 440 V for power circuit conforming to IEC 60158-1 15000 A at 440 V for power circuit conforming to IEC 60947-4 5000 A at 1000 V for power circuit conforming to IEC 60158-1 5000 A at 1000 V for power circuit conforming to IEC 60947-4 9000 A at 660...690 V for power circuit conforming to IEC 60158-1 9000 A at 660...690 V for power circuit conforming to IEC 60947-4 |
|
| associated fuse rating |
1600 A aM at <= 440 V for power circuit
2000 A gI at <= 440 V for power circuit |
|
| average impedance |
0.13 mOhm - Ith 2000 A 50 Hz for power circuit
|
|
| power dissipation per pole |
290 W AC-3 - Ith 2000 A
520 W AC-1 - Ith 2000 A |
|
| inrush power in VA |
1300 VA
|
|
| hold-in power consumption in VA |
31 VA 50/60 Hz
|
|
| operating time |
100...150 ms closing
50...100 ms opening |
|
| mechanical durability |
1200000 cycles
|
|
| maximum operating rate |
120 cyc/h 55 °C
|
|
| height |
490 mm
|
|
| width |
790 mm
|
|
| depth |
475 mm
|
|
| net weight |
94 kg
|
| standards |
IEC 60947-4
VDE 0660 IEC 60158-1 BS 5424 NF C 63-110 |
|
|---|---|---|
| product certifications |
CSA
BV RINA |
|
| protective treatment |
TC
TH |
|
| ambient air temperature for operation |
-5…55 °C
|
|
| ambient air temperature for storage |
-60…80 °C
|
|
| operating altitude |
3000 m without derating
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
72 kg
|
|
| Package 1 Height |
60 cm
|
|
| Package 1 width |
90 cm
|
|
| Package 1 Length |
53 cm
|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
|---|---|---|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
