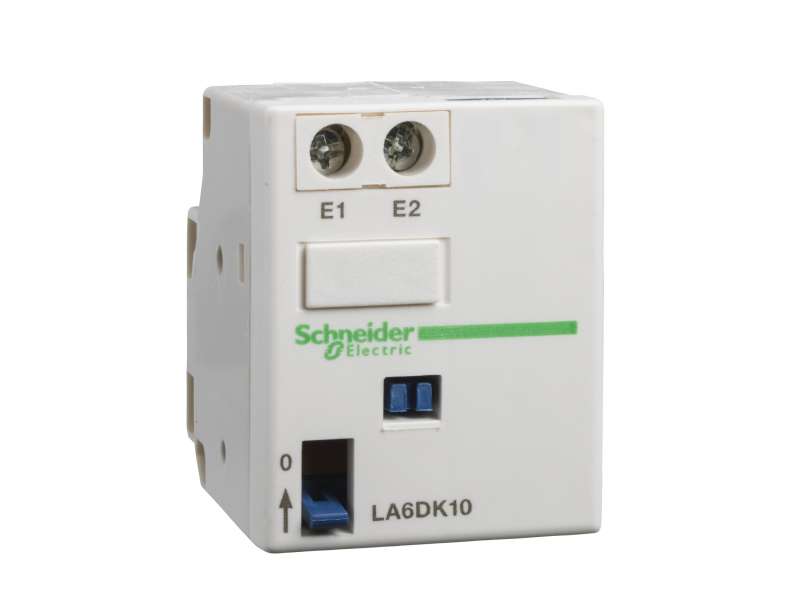

Schneider Electric Kontaktor kontaktni blok za mehanička zadrška IEC LC1 D09-D65A 110V;LAD6K10F
CONTACTOR MECH. LATCH CONTACT BLOCK IEC...
VAT-exclusive price: 8.134,00 |
VAT-inclusive price: 9.760,80 |
CONTACTOR MECH. LATCH CONTACT BLOCK IEC
| range |
TeSys
|
|
|---|---|---|
| product or component type |
Mechanical latch block
|
|
| product compatibility |
LC1DT60A...DT80A
TeSys D control relays LC1D09...D38 LC1D40A...D65A LC1DT20...DT40 |
|
| [Uc] control circuit voltage |
110/127 V AC 50/60 Hz
110/127 V DC |
| mounting location |
Front side
|
|
|---|---|---|
| tripping control |
Manual
Electrical |
|
| [Ui] rated insulation voltage |
690 V conforming to IEC 60947-5-1
|
|
| power required in VA |
25 for AC circuit
|
|
| power required in W |
30 W for DC circuit
|
|
| mechanical durability |
500000 cycles
|
|
| maximum operating rate |
1200 cyc/h
|
|
| on-load factor |
10 %
|
|
| net weight |
0.07 kg
|
| product certifications |
UL
CSA |
|
|---|---|---|
| IP degree of protection |
IP2x conforming to VDE 0106
|
|
| protective treatment |
TH conforming to IEC 60068
|
|
| ambient air temperature for operation |
-25…55 °C
|
|
| ambient air temperature for storage |
-40…80 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
98 g
|
|
| Package 1 Height |
4.8 cm
|
|
| Package 1 width |
5.3 cm
|
|
| Package 1 Length |
6.6 cm
|
|
| Unit Type of Package 2 |
S01
|
|
| Number of Units in Package 2 |
32
|
|
| Package 2 Weight |
3.369 kg
|
|
| Package 2 Height |
15 cm
|
|
| Package 2 width |
15 cm
|
|
| Package 2 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope) |
|
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
-
TeSys D LAD6K10F
