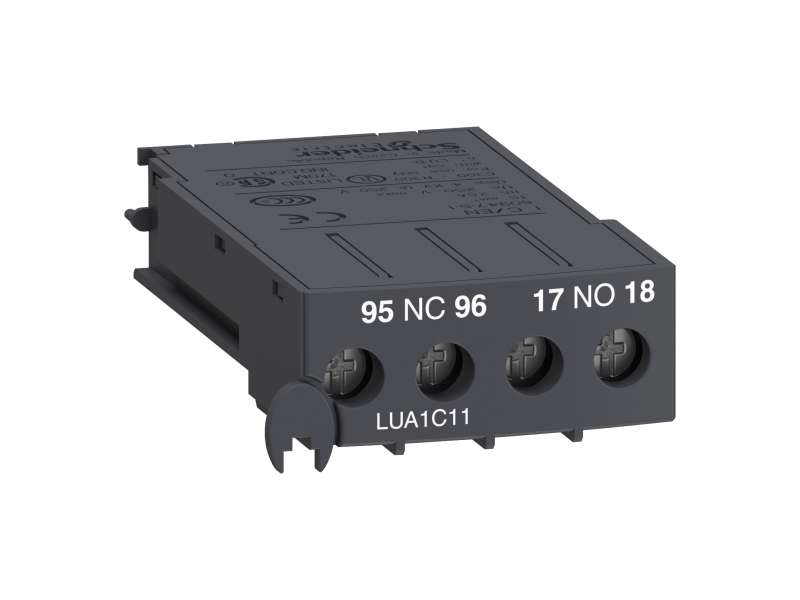

Schneider Electric Kontakti za signalizaciju LUA - 1 NO + 1 NC
signalling contacts LUA - 1 NO + 1 NC...
VAT-exclusive price: 1.305,00 |
VAT-inclusive price: 1.566,00 |
signalling contacts LUA - 1 NO + 1 NC
| range | TeSys |
|---|---|
| device short name | LUA1 |
| Product or component type | Auxiliary contact |
| auxiliary contact composition | 1 NO + 1 NC |
|---|---|
| signalling function |
Fault signalling Indicating rotary knob in ready position |
| [Ue] rated operational voltage |
<= 250 V AC <= 250 V DC |
| [Ui] rated insulation voltage |
250 V conforming to CSA 250 V conforming to IEC 60947-5-1 250 V conforming to UL |
| [Ith] conventional free air thermal current | 2.5 A |
| minimum switching voltage | 17 V |
| minimum switching current | 5 mA |
| Net weight | 0.03 kg |
| connections - terminals | Screw clamp terminals |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 24 g |
| Package 1 Height | 2 cm |
| Package 1 width | 6 cm |
| Package 1 Length | 10 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation | China RoHS declaration |
| Environmental Disclosure | Product Environmental Profile |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
|---|
| range | TeSys |
|---|---|
| device short name | LUA1 |
| Product or component type | Auxiliary contact |
| auxiliary contact composition | 1 NO + 1 NC |
|---|---|
| signalling function |
Fault signalling Indicating rotary knob in ready position |
| [Ue] rated operational voltage |
<= 250 V AC <= 250 V DC |
| [Ui] rated insulation voltage |
250 V conforming to CSA 250 V conforming to IEC 60947-5-1 250 V conforming to UL |
| [Ith] conventional free air thermal current | 2.5 A |
| minimum switching voltage | 17 V |
| minimum switching current | 5 mA |
| Net weight | 0.03 kg |
| connections - terminals | Screw clamp terminals |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 24 g |
| Package 1 Height | 2 cm |
| Package 1 width | 6 cm |
| Package 1 Length | 10 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation | China RoHS declaration |
| Environmental Disclosure | Product Environmental Profile |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
|---|
-
TeSys U LUA1C11
