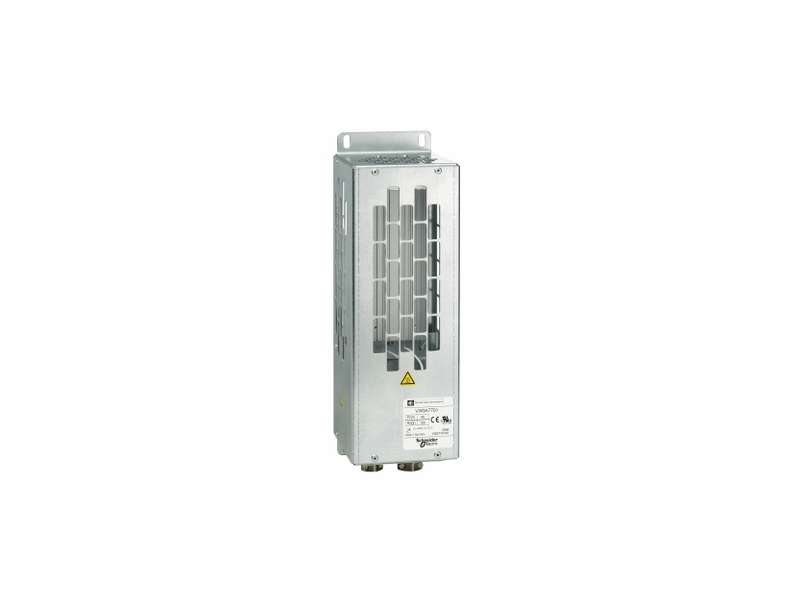

Schneider Electric Kočioni otpornik - IP 20 - 28 Ω - 200 W;VW3A7703 old
braking resistor, Altivar, IP20, 28Ohm, 200W...
VAT-exclusive price: 36.923,00 |
VAT-inclusive price: 44.307,60 |
braking resistor, Altivar, IP20, 28Ohm, 200W
| range of product | Altivar |
|---|---|
| range compatibility |
Altivar 61 Altivar 312 Altivar 32 Altivar Easy 310 Altivar 312 Solar Altivar 31C Altivar 71 |
| product compatibility |
ATV312HD11N4 ATV312HD11S6 ATV312HD15N4 ATV312HD15S6 ATV312HU40M3 ATV31CD11N4 ATV31CD15N4 ATV32HD11N4 ATV32HD15N4 ATV61HD18Y ATV61HD22Y ATV61HU30M3 ATV61HU40M3 ATV61WD15N4 ATV61WD15N4C ATV61WD18N4 ATV61WD18N4C ATV71HD11N4 ATV71HD15N4 ATV71HD15Y ATV71HD18Y ATV71HU30M3 ATV71HU40M3 ATV71PD11N4Z ATV71WD11N4 ATV71WD15N4 Variable speed drive ATV310 at 11 kW |
| ohmic value | 28 Ohm |
| [Ue] rated operational voltage |
24 V DC at 0.1 A 250 V AC at 1 A |
| average power available |
200 W at 50 °C 231 W at 40 °C |
|---|---|
| electrical connection |
Terminal, connection capacity: <= 1.5 mm² / AWG 16 for temperature control switch terminal, connection capacity: <= 4 mm² / AWG 28 for drive |
| temperature controlled switch contact resistance | 60 µOhm |
| protection type | Thermal protection via drive or temperature control switch at 120 °C |
| width | 140 mm |
| height | 393 mm |
| depth | 120 mm |
| net weight | 3.5 kg |
| IP degree of protection | IP20 |
|---|---|
| ambient air temperature for storage | -25…70 °C |
| ambient air temperature for operation | 0…50 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 3.882 kg |
| Package 1 Height | 21.8 cm |
| Package 1 width | 50.0 cm |
| Package 1 Length | 25.8 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 6 |
| Package 2 Weight | 35.92 kg |
| Package 2 Height | 75.0 cm |
| Package 2 width | 60.0 cm |
| Package 2 Length | 80.0 cm |
| Warranty | 18 months |
|---|
| range of product | Altivar |
|---|---|
| range compatibility |
Altivar 61 Altivar 312 Altivar 32 Altivar Easy 310 Altivar 312 Solar Altivar 31C Altivar 71 |
| product compatibility |
ATV312HD11N4 ATV312HD11S6 ATV312HD15N4 ATV312HD15S6 ATV312HU40M3 ATV31CD11N4 ATV31CD15N4 ATV32HD11N4 ATV32HD15N4 ATV61HD18Y ATV61HD22Y ATV61HU30M3 ATV61HU40M3 ATV61WD15N4 ATV61WD15N4C ATV61WD18N4 ATV61WD18N4C ATV71HD11N4 ATV71HD15N4 ATV71HD15Y ATV71HD18Y ATV71HU30M3 ATV71HU40M3 ATV71PD11N4Z ATV71WD11N4 ATV71WD15N4 Variable speed drive ATV310 at 11 kW |
| ohmic value | 28 Ohm |
| [Ue] rated operational voltage |
24 V DC at 0.1 A 250 V AC at 1 A |
| average power available |
200 W at 50 °C 231 W at 40 °C |
|---|---|
| electrical connection |
Terminal, connection capacity: <= 1.5 mm² / AWG 16 for temperature control switch terminal, connection capacity: <= 4 mm² / AWG 28 for drive |
| temperature controlled switch contact resistance | 60 µOhm |
| protection type | Thermal protection via drive or temperature control switch at 120 °C |
| width | 140 mm |
| height | 393 mm |
| depth | 120 mm |
| net weight | 3.5 kg |
| IP degree of protection | IP20 |
|---|---|
| ambient air temperature for storage | -25…70 °C |
| ambient air temperature for operation | 0…50 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 3.882 kg |
| Package 1 Height | 21.8 cm |
| Package 1 width | 50.0 cm |
| Package 1 Length | 25.8 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 6 |
| Package 2 Weight | 35.92 kg |
| Package 2 Height | 75.0 cm |
| Package 2 width | 60.0 cm |
| Package 2 Length | 80.0 cm |
| Warranty | 18 months |
|---|
