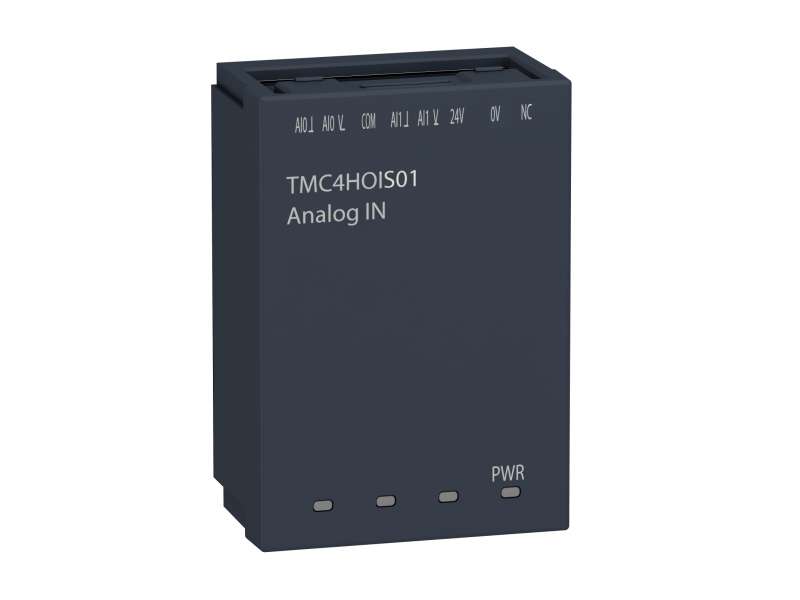

Schneider Electric Kertridž M241 - za aplikacije dizanja 1 analogni ulaz;TMC4HOIS01
Analogue input cartridge, Modicon M241, hoisting 1 analog...
VAT-exclusive price: 19.676,00 |
VAT-inclusive price: 23.611,20 |
Analogue input cartridge, Modicon M241, hoisting 1 analog
| range of product |
Modicon M241
|
|
|---|---|---|
| product or component type |
Analogue input cartridge
|
|
| product specific application |
Hoisting applications
|
|
| product compatibility |
Modicon M241C
|
|
| analogue input number |
2
|
| analogue input type |
current 4...20 mA
current 0...20 mA voltage 0...10 V |
|
|---|---|---|
| analogue input resolution |
16 bits
|
|
| LSB value |
1 mVvoltage 0...10 V
2 µAcurrent 0...20 mA 2 µAcurrent 4...20 mA |
|
| sampling duration |
10 ms
|
|
| absolute accuracy error |
+/- 0.2 % of full scale at 25 °C
|
|
| temperature drift |
+/- 0.006 %FS/°C
|
|
| repeat accuracy |
+/- 0.2 %FS
|
|
| non-linearity |
+/- 0.05 %FS
|
|
| cross talk |
80 dB
|
|
| type of cable |
Twisted shielded pairs cable
|
|
| electrical connection |
1 x 1.5 mm² 1 spring terminal block with pitch 3.81 mm adjustment for inputs and supply
|
|
| maximum cable distance between devices |
Twisted shielded pairs cable: <30 m for input
|
|
| insulation |
Between input and internal logic at 500 V DC
Non-insulated between inputs |
|
| supply voltage limits |
20.4…28.8 V
|
|
| local signalling |
1 LED (green) for PWR
|
|
| height |
50 mm
|
|
| depth |
21 mm
|
|
| width |
34 mm
|
|
| net weight |
0.055 kg
|
|
| permissible continuous overload |
40 mA, analogue input type: current
30 V, analogue input type: voltage |
|
| input impedance |
<= 250 Ohm current
>= 1 MOhm voltage |
| immunity to microbreaks |
10 ms
|
|---|
| Package 1 Weight |
54.000 g
|
|
|---|---|---|
| Package 1 Height |
70.000 mm
|
|
| Package 1 width |
35.000 mm
|
|
| Package 1 Length |
30.000 mm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| PVC free |
Yes
|
|
| California proposition 65 |
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or oth
|
-
Logički kontroler - Modicon M241 TMC4HOIS01
