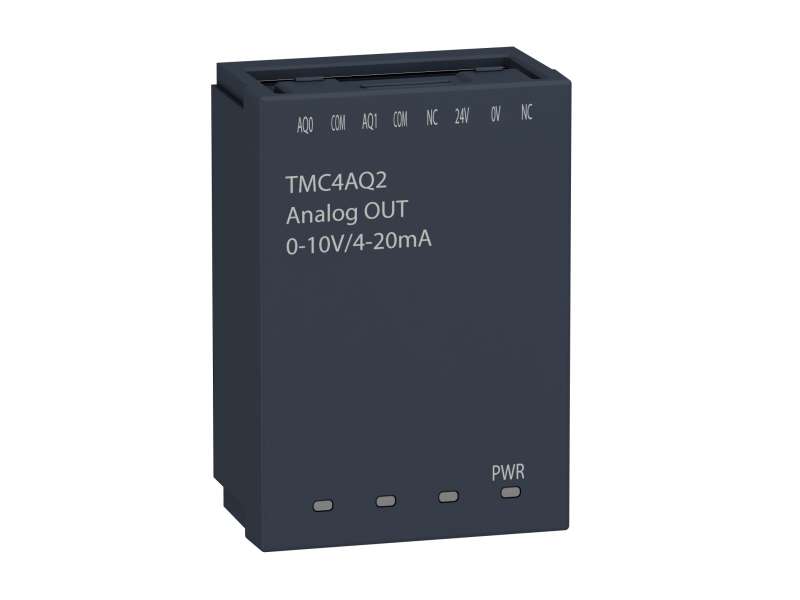

Schneider Electric Kertridž M241 - 2 analogna izlaza; TMC4AQ2
cartridge M241 - 2 analog outputs...
VAT-exclusive price: 19.043,00 |
VAT-inclusive price: 22.851,60 |
cartridge M241 - 2 analog outputs
| range of product |
Modicon M241
|
|
|---|---|---|
| product or component type |
Analogue output cartridge
|
|
| product compatibility |
Modicon M241C
|
| analogue output number |
2
|
|
|---|---|---|
| analogue output type |
Current: 4...20 mA
Voltage: 0...10 V |
|
| analogue output resolution |
16 bits
|
|
| LSB value |
1 mV 0...10 V voltage
2 µA 4...20 mA current |
|
| load type |
Resistive
|
|
| load impedance ohmic |
<= 500 Ohm current
>= 2 kOhm voltage |
|
| conversion time |
10 ms + 1 controller cycle time
|
|
| stabilisation time |
10 ms
|
|
| absolute accuracy error |
+/- 0.2 % of full scale at 25 °C
|
|
| temperature drift |
+/- 0.006 %FS/°C
|
|
| repeat accuracy |
+/- 0.5 %FS
|
|
| non-linearity |
+/- 0.05 %FS
|
|
| output ripple |
+/- 20 mV
|
|
| cross talk |
80 dB
|
|
| type of cable |
Twisted shielded pairs cable
|
|
| electrical connection |
1 x 1.5 mm² 1 spring terminal block with pitch 3.81 mm adjustment for outputs and supply
|
|
| maximum cable distance between devices |
Twisted shielded pairs cable: <30 m for input
|
|
| insulation |
Between output and internal logic at 500 V DC
Non-insulated between outputs |
|
| supply voltage limits |
20.4…28.8 V
|
|
| local signalling |
1 LED (green)PWR:
|
|
| height |
50 mm
|
|
| depth |
21 mm
|
|
| width |
34 mm
|
|
| net weight |
0.055 kg
|
| immunity to microbreaks |
10 ms
|
|---|
| Package 1 Weight |
54.000 g
|
|
|---|---|---|
| Package 1 Height |
70.000 mm
|
|
| Package 1 width |
35.000 mm
|
|
| Package 1 Length |
30.000 mm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| PVC free |
Yes
|
-
Logički kontroler - Modicon M241 TMC4AQ2
