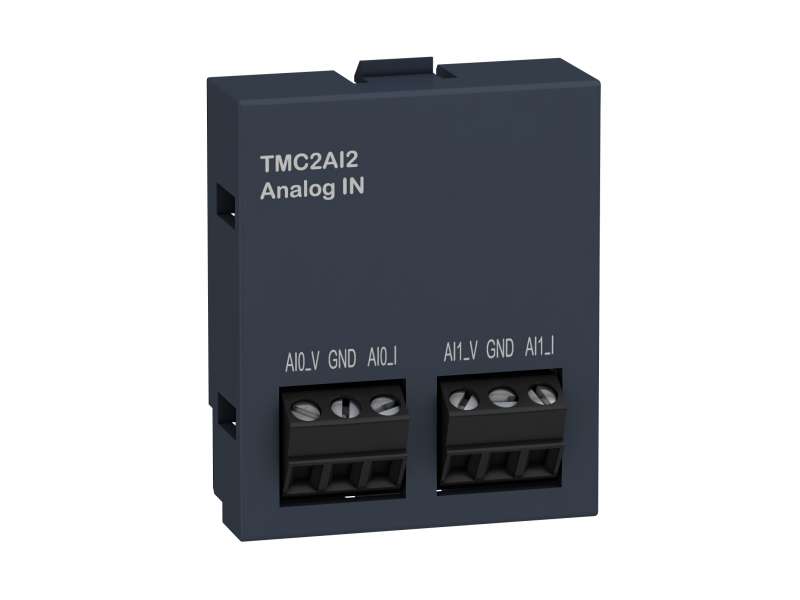

Schneider Electric Kertridž M221 - 2 analogna ulaza - I/O proširenje; TMC2AI2
cartridge M221 - 2 analog inputs - I/O extension...
VAT-exclusive price: 8.283,00 |
VAT-inclusive price: 9.939,60 |
cartridge M221 - 2 analog inputs - I/O extension
| range of product |
Modicon M221
|
|
|---|---|---|
| product or component type |
Analogue input cartridge
|
|
| product compatibility |
Modicon M221C
|
|
| analogue input number |
2
|
| analogue input type |
current 4...20 mA
current 0...20 mA voltage 0...10 V |
|
|---|---|---|
| analogue input resolution |
12 bits
|
|
| LSB value |
2.44 mV 0...10 Vvoltage
4.88 µA 0...20 mAcurrent 3.91 µA 4...20 mAcurrent |
|
| conversion time |
20 ms
|
|
| sampling duration |
10 ms
|
|
| absolute accuracy error |
+/- 0.1 % of full scale at 25 °C
+/- 1 % of full scale |
|
| temperature drift |
+/- 0.02 %FS/°C
|
|
| repeat accuracy |
+/- 0.5 %FS
|
|
| non-linearity |
+/- 0.01 %FS
|
|
| cross talk |
<= 1 LSB
|
|
| type of cable |
Twisted shielded pairs cable
|
|
| electrical connection |
3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs
|
|
| maximum cable distance between devices |
Twisted shielded pairs cable: <30 m for input
|
|
| insulation |
Non-insulated between analogue input and internal logic
|
|
| height |
41 mm
|
|
| depth |
15 mm
|
|
| width |
35 mm
|
|
| net weight |
0.015 kg
|
|
| permissible continuous overload |
13 V, analogue input type: voltage
40 mA, analogue input type: current |
|
| input impedance |
<= 250 Ohm current
>= 1 MOhm voltage |
| immunity to microbreaks |
10 ms
|
|---|
| Package 1 Weight |
15.000 g
|
|
|---|---|---|
| Package 1 Height |
35.000 mm
|
|
| Package 1 width |
46.000 mm
|
|
| Package 1 Length |
70.000 mm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| PVC free |
Yes
|
-
Logički kontroler - Modicon M221 TMC2AI2
