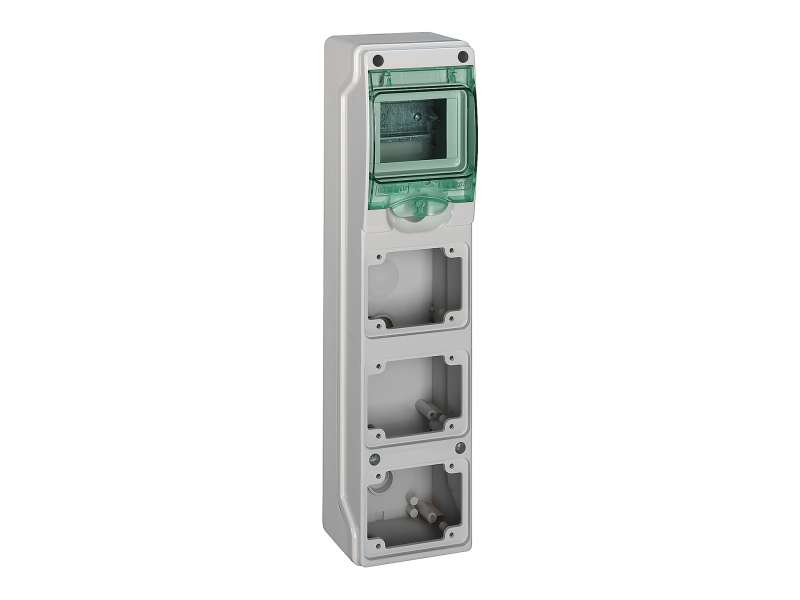

Schneider Electric Kaedra - za utičnice- 3 otvora - 1 x 4 modula - 1 priključni blok;13177
Kaedra - for power outlet - 3 openings - 1 x 4 modules...
VAT-exclusive price: 3.031,00 |
VAT-inclusive price: 3.637,20 |
Kaedra - for power outlet - 3 openings - 1 x 4 modules
| range |
Kaedra
|
|
|---|---|---|
| product or component type |
Weatherproof enclosure
|
|
| enclosure type |
Enclosure for power outlet
|
|
| accessories included with enclosure |
1 plate for 50 x 50 power outlets
|
|
| mounting plate description |
Without mounting plate
|
| enclosure mounting |
Surface
|
|
|---|---|---|
| number of 18 mm modules per row |
4
|
|
| total number of 18 mm modules |
4
|
|
| number of horizontal rows |
1
|
|
| electrical insulation class |
Class II
Double insulation |
|
| number of openings of interface |
3
|
|
| number of plates |
1 for 50 x 50 power outlets
|
|
| provided equipment |
1 plate for 50 x 50 power outlet
|
|
| type of front cover |
Transparent
|
|
| power dissipation in W |
10 W
|
|
| [In] rated current |
63 A
|
|
| type of rail |
DIN
|
|
| number of pre-cutouts PG ISO |
1
|
|
| number of terminal blocks |
1 with 4 outgoers
|
|
| distribution block outgoers |
2 x 10 mm²
2 x 16 mm² |
|
| locking options description |
Optional keylock
|
|
| enclosure material |
Housing: self-extinguishing polymer
|
|
| net weight |
0.61 kg
|
|
| base dimension |
65 x 85 mm
|
|
| width |
98 mm
|
|
| height |
392 mm
|
|
| depth |
98 mm
|
|
| internal depth |
61 mm
|
|
| colour |
Door: transparent green
Enclosure: light grey (RAL 7035) |
| standards |
EN 62262
EN 50262 IEC 60439-3 IEC 60695-2-1 IEC 670 IEC 60529 |
|
|---|---|---|
| fire resistance |
650 °C conforming to IEC 60695-2-1
|
|
| IP degree of protection |
IP65 conforming to IEC 60529
|
|
| IK degree of protection |
IK09 conforming to EN 50102
|
|
| Environmental characteristics (UV) |
UV resistant: class 3 conforming to ISO 4582:2010
Ultraviolet degradation test conforming to ISO 4892-2:2013 |
|
| overvoltage category |
II
|
|
| ambient air temperature for operation |
-25…40 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
557 g
|
|
| Package 1 Height |
10 cm
|
|
| Package 1 width |
10 cm
|
|
| Package 1 Length |
39 cm
|
|
| Unit Type of Package 2 |
CAR
|
|
| Number of Units in Package 2 |
6
|
-
Pratika 13177
