Schneider Electric Kaedra - za utičnice- 1 otvor - 1 x 5 modula - 1 priključni blok;13185
Kaedra - for power outlet - 1 openings - 1 x 5 modules...
VAT-exclusive price: 4.353,00 |
VAT-inclusive price: 5.223,60 |

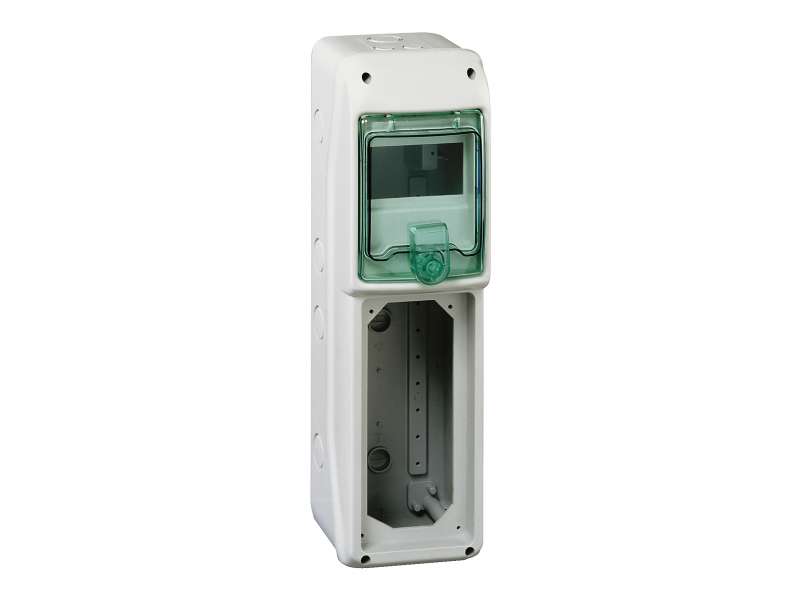

Kaedra - for power outlet - 1 openings - 1 x 5 modules
| range |
Kaedra
|
|
|---|---|---|
| product or component type |
Weatherproof enclosure
|
|
| enclosure type |
Enclosure for power outlet
|
|
| accessories included with enclosure |
1 terminal block 4 holes
|
|
| mounting plate description |
Without mounting plate
|
| enclosure mounting |
Surface
|
|
|---|---|---|
| number of 18 mm modules per row |
5
|
|
| total number of 18 mm modules |
5
|
|
| number of horizontal rows |
1
|
|
| electrical insulation class |
Class II
Double insulation |
|
| number of openings of interface |
1
|
|
| provided equipment |
1 terminal block 4 holes
|
|
| type of front cover |
Transparent
|
|
| power dissipation in W |
12 W
|
|
| [In] rated current |
63 A
|
|
| type of rail |
DIN
|
|
| number of pre-cutouts PG ISO |
3
|
|
| number of terminal blocks |
1 with 4 outgoers
|
|
| distribution block outgoers |
2 x 10 mm²
2 x 16 mm² |
|
| locking options description |
Optional keylock
|
|
| enclosure material |
Housing: self-extinguishing polymer
|
|
| net weight |
1.2 kg
|
|
| base dimension |
103 x 225 mm
|
|
| width |
138 mm
|
|
| height |
460 mm
|
|
| depth |
160 mm
|
|
| internal depth |
91 mm
|
|
| colour |
Door: transparent green
Enclosure: light grey (RAL 7035) |
| standards |
EN 62262
IEC 60529 IEC 670 IEC 60439-3 IEC 60695-2-1 EN 50262 |
|
|---|---|---|
| fire resistance |
650 °C conforming to IEC 60695-2-1
|
|
| IP degree of protection |
IP65 conforming to IEC 60529
|
|
| IK degree of protection |
IK09 conforming to EN 50102
|
|
| Environmental characteristics (UV) |
UV resistant: class 3 conforming to ISO 4582:2010
Ultraviolet degradation test conforming to ISO 4892-2:2013 |
|
| overvoltage category |
II
|
|
| ambient air temperature for operation |
-25…40 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
1.377 kg
|
|
| Package 1 Height |
15.8 cm
|
|
| Package 1 width |
16.8 cm
|
|
| Package 1 Length |
47 cm
|
|
| Unit Type of Package 2 |
P12
|
|
| Number of Units in Package 2 |
66
|
|
| Package 2 Weight |
102.882 kg
|
-
Pratika 13185
