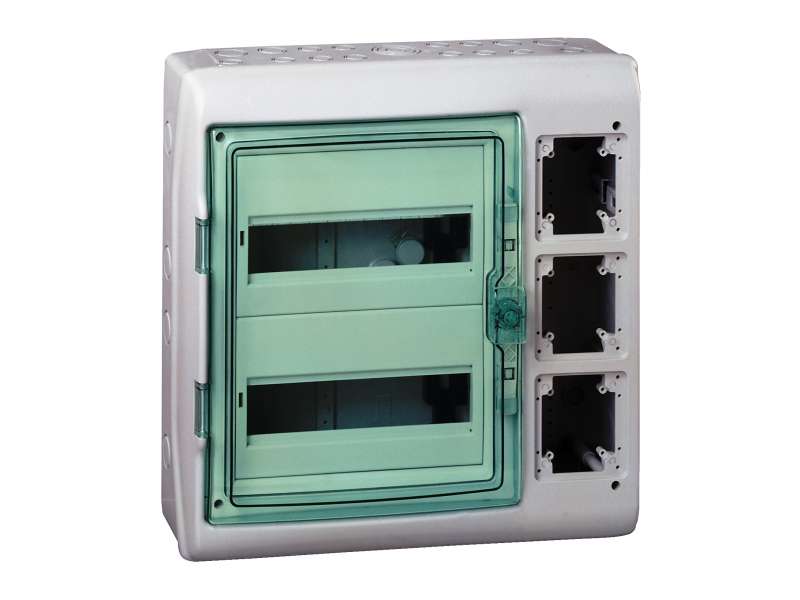

Schneider Electric Kaedra - za modularni uređaj sa interfejsom - 2 x 12 modula - 2 priključna bloka;13439
Kaedra - for modular device with interface - 2 x 12 modules - 2 terminal blocks...
VAT-exclusive price: 19.883,00 |
VAT-inclusive price: 23.859,60 |
Kaedra - for modular device with interface - 2 x 12 modules - 2 terminal blocks
| range |
Kaedra
|
|
|---|---|---|
| product or component type |
Weatherproof enclosure
|
|
| enclosure type |
Enclosure for modular device with interface
|
|
| accessories included with enclosure |
2 wiring straps
2 marking kits 1 terminal block support 1 plate for 65 x 85 power outlets 2 terminal block 22 holes 3 plates for push-button controls |
|
| mounting plate description |
Slotted
|
| enclosure mounting |
Surface
|
|
|---|---|---|
| number of 18 mm modules per row |
12
|
|
| total number of 18 mm modules |
24
|
|
| number of horizontal rows |
2
|
|
| electrical insulation class |
Double insulation
Class II |
|
| number of openings of interface |
3
|
|
| number of plates |
1 for 65 x 85 power outlets
3 for push-button controls |
|
| provided equipment |
2 marking kit
2 wiring strap 1 plate for 65 x 85 power outlet 3 plate for push-button control 1 terminal block support 2 terminal block 22 holes |
|
| type of front cover |
Reversible
Transparent |
|
| [In] rated current |
90 A
|
|
| type of rail |
DIN
|
|
| number of pre-cutouts PG ISO |
17
|
|
| number of terminal blocks |
2 with 22 outgoers
|
|
| locking options description |
Optional keylock
|
|
| enclosure material |
Self-extinguishing polymer
|
|
| base dimension |
90 x 100 mm
|
|
| width |
448 mm
|
|
| height |
460 mm
|
|
| depth |
160 mm
|
|
| internal depth |
88 mm
|
|
| colour |
Door: transparent green
Enclosure: light grey (RAL 7035) |
| standards |
EN 50102
IEC 670 IEC 60439-3 IEC 60529 EN 50262 IEC 60695-2-1 |
|
|---|---|---|
| fire resistance |
650 °C conforming to IEC 60695-2-1
|
|
| IP degree of protection |
IP65 conforming to IEC 60529
|
|
| IK degree of protection |
IK09 conforming to EN 50102
|
|
| Environmental characteristics (UV) |
UV resistant: class 3 conforming to ISO 4582:2010
Ultraviolet degradation test conforming to ISO 4892-2:2013 |
|
| overvoltage category |
II
|
|
| ambient air temperature for operation |
-25…60 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
4.25 kg
|
|
| Package 1 Height |
18 cm
|
|
| Package 1 width |
47 cm
|
|
| Package 1 Length |
47.5 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
-
Kaedra Mini Kaedra 13439
