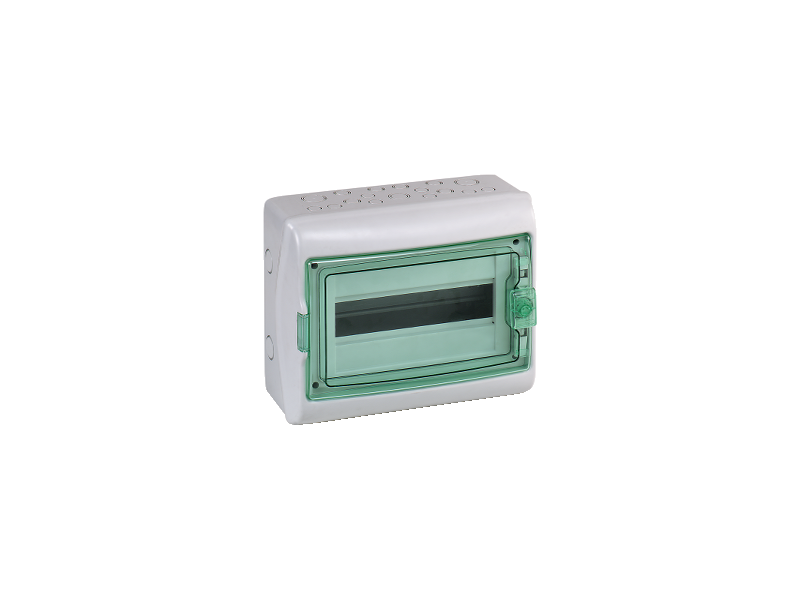

Schneider Electric Kaedra - za modularni uređaj - 1 x 18 modula - 1 priključni blok ; 13982
Kaedra - for modular device - 1 x 18 modules - 1 terminal block...
VAT-exclusive price: 7.052,00 |
VAT-inclusive price: 8.462,40 |
Kaedra - for modular device - 1 x 18 modules - 1 terminal block
| range |
Kaedra
|
|
|---|---|---|
| product or component type |
Weatherproof enclosure
|
|
| enclosure type |
Enclosure for modular device
|
|
| accessories included with enclosure |
1 marking kit
1 wiring strap 1 terminal block 16 holes 1 terminal block 4 holes 1 terminal block support |
|
| mounting plate description |
Slotted
|
| enclosure mounting |
Surface
|
|
|---|---|---|
| number of 18 mm modules per row |
18
|
|
| total number of 18 mm modules |
18
|
|
| number of horizontal rows |
1
|
|
| electrical insulation class |
Class II
Double insulation |
|
| provided equipment |
1 marking kit
1 wiring strap 1 terminal block 4 holes 1 terminal block support 1 terminal block 16 holes |
|
| type of front cover |
Transparent
Reversible |
|
| power dissipation in W |
34 W
|
|
| [In] rated current |
90 A
|
|
| type of rail |
DIN
|
|
| number of pre-cutouts PG ISO |
17
|
|
| number of terminal blocks |
1 with 4 outgoers
1 with 16 outgoers |
|
| distribution block outgoers |
10 x 10 mm²
10 x 16 mm² |
|
| locking options description |
Optional keylock
|
|
| enclosure material |
Self-extinguishing polymer
|
|
| width |
448 mm
|
|
| height |
280 mm
|
|
| depth |
160 mm
|
|
| internal depth |
88 mm
|
|
| colour |
Door: transparent green
Enclosure: light grey (RAL 7035) |
|
| targeted country |
Spain
|
| standards |
EN 50102
IEC 670 IEC 60529 EN 50262 IEC 60439-3 IEC 60695-2-1 |
|
|---|---|---|
| fire resistance |
650 °C conforming to IEC 60695-2-1
|
|
| IP degree of protection |
IP65 conforming to IEC 60529
|
|
| IK degree of protection |
IK09 conforming to EN 50102
|
|
| Environmental characteristics (UV) |
UV resistant: class 3 conforming to ISO 4582:2010
Ultraviolet degradation test conforming to ISO 4892-2:2013 |
|
| overvoltage category |
II
|
|
| ambient air temperature for operation |
-25…60 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
2.52 kg
|
|
| Package 1 Height |
17 cm
|
|
| Package 1 width |
29.5 cm
|
|
| Package 1 Length |
46.8 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope) |
|
| Environmental Disclosure | ||
| Halogen content performance |
Halogen free product
|
| Warranty |
18 months
|
|---|
