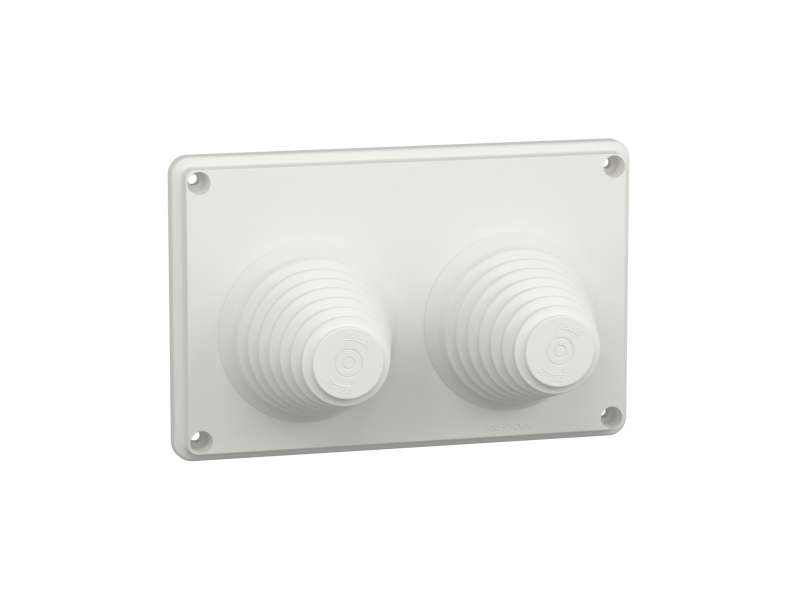

Schneider Electric Kablovska uvodnica 2 otvora Ø 33 do 72mm direktna montaža Prisma G IP55; LVS08899
Gland plate, PrismaSeT G, knockouts type, 2 inlet with dia 33 to 72mm, Insulated, direct mounting, IP55, white, RAL 9003...
VAT-exclusive price: 9.678,00 |
VAT-inclusive price: 11.613,60 |
Gland plate, PrismaSeT G, knockouts type, 2 inlet with dia 33 to 72mm, Insulated, direct mounting, IP55, white, RAL 9003
| Range of product | PrismaSeT G |
|---|---|
| Range | PrismaSeT |
| Range compatibility | PrismaSeT (PrismaSeT G) enclosure |
| Product or component type | Gland plate |
| Accessory / separate part category | Enclosure accessory |
| Product compatibility | IP55 enclosure |
| Enclosure/cubicle description | Wall-mounted enclosure - width 600 mm |
|---|---|
| Type of gland plate | Knockouts |
| Mounting location |
Top Bottom |
| Material | Insulated material |
| Cable entry number | 2 diameter: 33…72 mm |
| Quantity per set | Set of 1 |
| Depth | 180 mm |
| Net weight | 0.44 kg |
| Colour | White (RAL 9003) |
| IP degree of protection | IP55 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.2 cm |
| Package 1 Width | 16 cm |
| Package 1 Length | 25 cm |
| Package 1 Weight | 421 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 35 cm |
| Package 2 Width | 35 cm |
| Package 2 Length | 68.5 cm |
| Package 2 Weight | 13.613 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 180 |
| Package 3 Height | 85 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 93.5 kg |
-
PrismaSeT G LVS08899
